CT4072
CT4072 Series

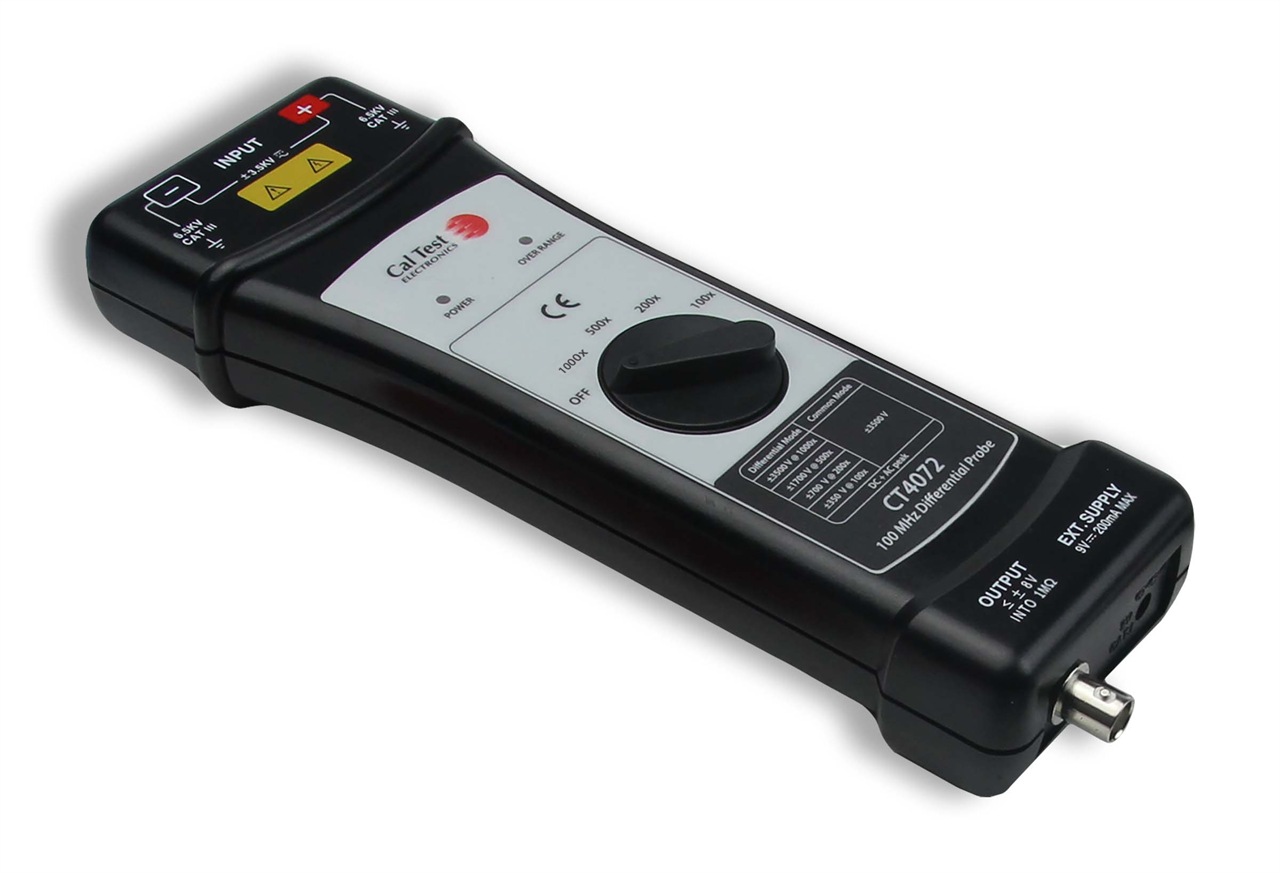

Active Catalog100 MHz Differential Probe
Differential Probe Kit, 100 MHz, 3.5kV, 100x/200x/500x/1000x
$950.001 Year Warranty
Overview
The CT4072 differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. The probe has a 100 MHz bandwidth, and it offers 100x, 200x, 500x, and 1000x attenuation settings. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.
Features:
- Meets IEC 61010-031 safety standard
- Selectable attenuation settings of 100x/200x/500x/1000x
- 100 MHz bandwidth
- Up to ±3500 V differential
- High accuracy (±2%)
- Power and over range indicator LEDs
- Optional European style 9 V power adapter (CT3957-EU)
Comes with:
- (2) High voltage hook probes, black & red
- (2) Alligator Clips, black & red
- (2) 4 mm probes, black & red
- (2) Sheathed 4 mm banana plug test leads, silicone jacketed, black & red
- Insulated BNC cable, 100 cm
- 9 V Power adapter included (CT3957-NA)
Specifications
- Attenuation
- 100x/200x/500x/1000x
- Bandwidth
- 100 MHz
- Max Differential Input Voltage
- 3500 V (3.5 kV)
- Rated Voltage
- IEC 61010-031 CAT II
- Input Impedance
- 54 MΩ
- Rise Time
- 18 ns
- Input Leads Length
- 55 cm
- Output Leads Length
- 100 cm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
