CT4071
CT4071 Series
Active Catalog50 MHz Differential Probe
Differential Probe Kit, 50 MHz, 3.5 kV, 100x/200x/500x/1000x
$680.001 Year Warranty
Where to Buy
Checking distributor stock…
Overview

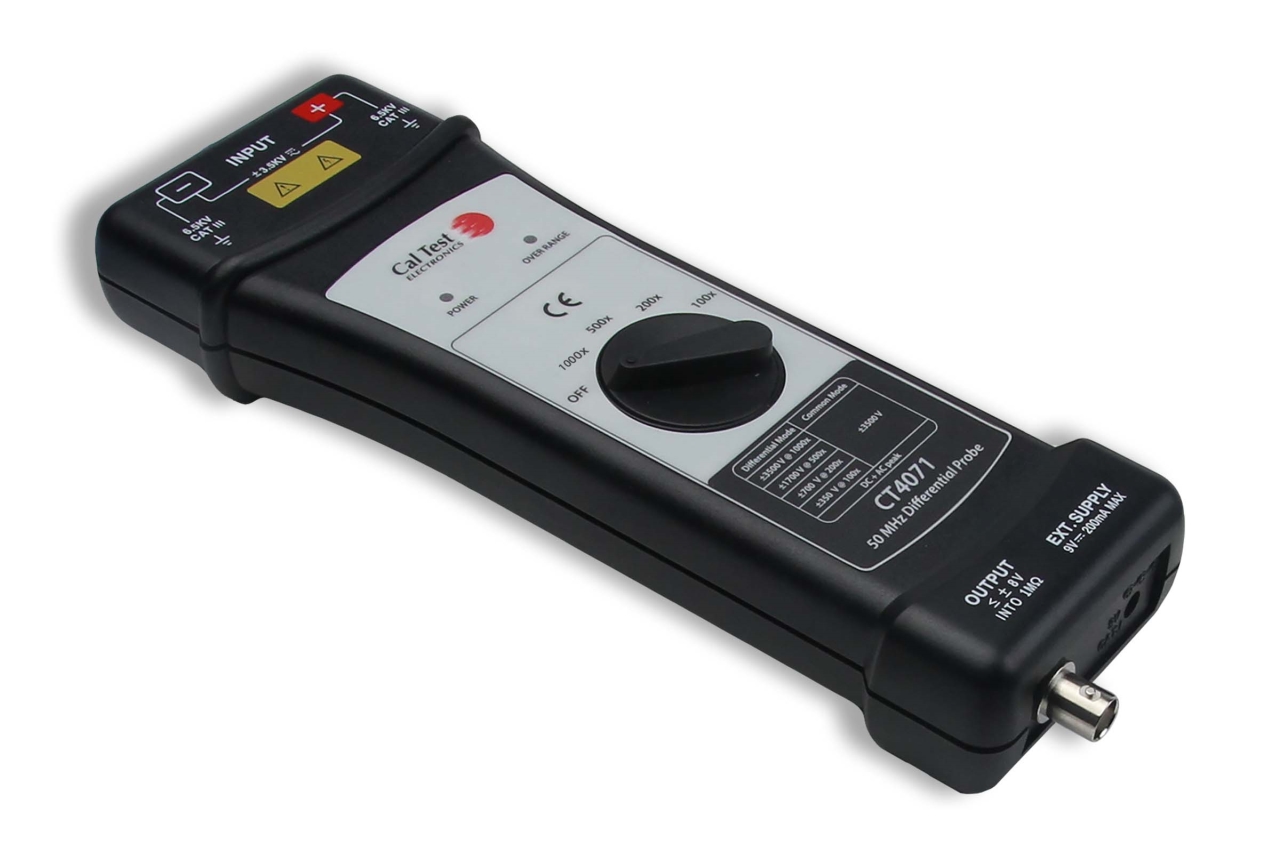

The CT4071 differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. The probe has a 50 MHz bandwidth, and it offers 100x, 200x, 500x, and 1000x attenuation settings. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.
Features:
- Meets IEC 61010-031 safety standard
- Selectable attenuation settings of 100x/200x/500x/1000x
- 50 MHz bandwidth
- Up to ±3500 V differential
- High accuracy (±2%)
- Power and over range indicator LEDs
- Optional European style 9 V power adapter (CT3957-EU)
Comes with:
- (2) High voltage hook probes, black & red
- (2) Alligator Clips, black & red
- (2) Sheathed 4 mm banana plug test leads, silicone jacketed, black & red
- Insulated BNC cable, 100 cm
- 9 V Power adapter included (CT3957-NA)
Specifications
- Attenuation
- 100x/200x/500x/1000x
- Bandwidth
- 50 MHz
- Max Differential Input Voltage
- 3500 V (3.5 kV)
- Rated Voltage
- IEC 61010-031 CAT II
- Input Impedance
- 54 MΩ
- Rise Time
- 7 ns
- Input Leads Length
- 55 cm
- Output Leads Length
- 100 cm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
