CT4068-NA
CT4068 Series
Active Catalog35 MHz Differential Probe
Differential Probe Kit, 35 MHz, 1.6 kV, 10x/100x, NA Adapter
$580.001 Year Warranty
Where to Buy
Checking distributor stock…
Overview
Differential probes allow for safe, accurate measurements between two voltage points where neither point is referenced to ground.
Model CT4068 features 10x/100x attenuation settings, 35 MHz bandwidth and ±800 V maximum differential - all in a compact, safety yellow housing.
Compatible with oscilloscopes from all major manufacturers, the probe is ideal where high sensitivity and dynamic range is needed.
User applications include:
- Precise power semiconductor device measurements
- Switching power supply design
- Measurement of power converters
- Precise measurement of motor drives
Features:
- Meets IEC 61010-031 safety standard
- Up to ±80 V / ±800 V differential
- 35 MHz bandwidth (-3 dB)
- Excellent CMRR
- Power and over-range indicators

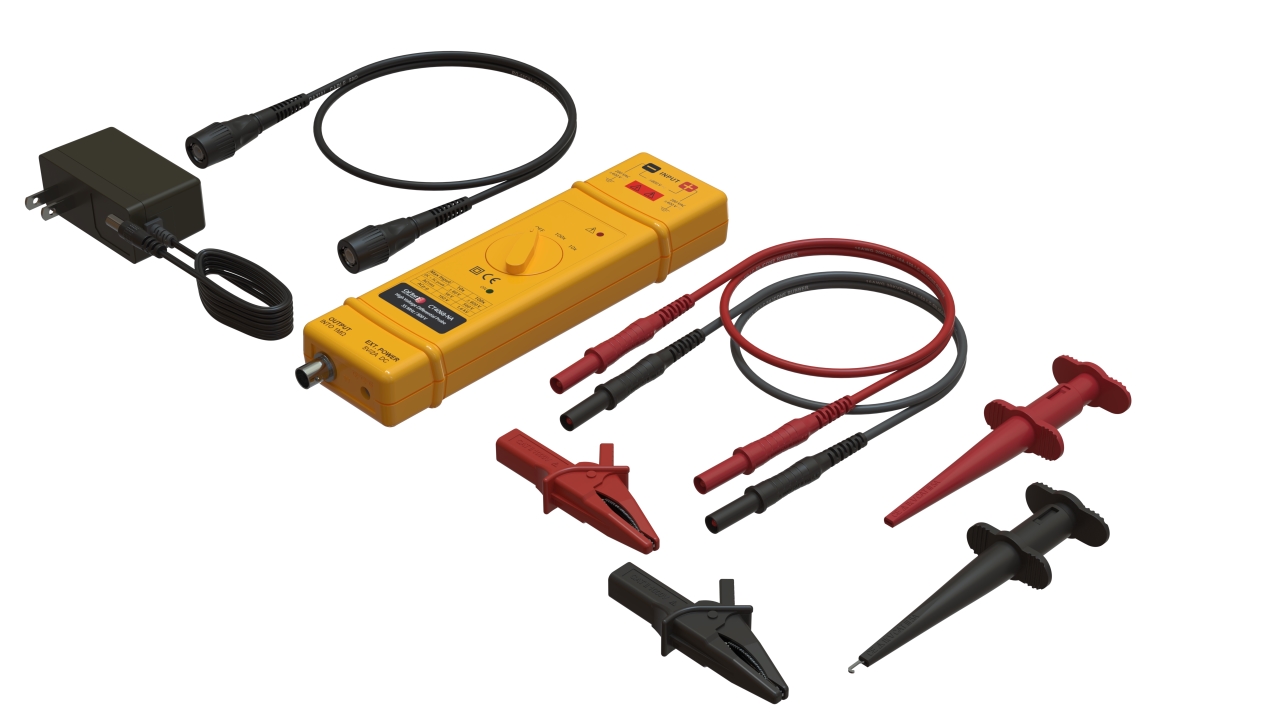

- Kit contains:
- Differential probe
- (2) Pincer clips, black & red
- (2) Alligator clips, black & red
- (2) Banana plug leads, black & red
- Insulated BNC cable
- 5V AC/DC wall mount adapter (CT4476)
- User manual
Specifications
- Attenuation
- 10x/100x
- Bandwidth
- 35 MHz
- Max Differential Input Voltage
- 800 V
- Rated Voltage
- CAT I
- Input Impedance
- 9 MΩ
- Rise Time
- 10 ns
- Input Leads Length
- 60 cm
- Output Leads Length
- 100 cm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
