CT4066
CT4066 Series
Active Catalog25 MHz Differential Probe
Differential Probe Kit, 25 MHz, 700 V, 20x/50x/200x
$520.001 Year Warranty
Where to Buy
Checking distributor stock…
Overview
The CT4066 differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. The probe offers both a 25 MHz bandwidth for the 50x and 200x attenuation settings and a 15 MHz bandwidth for the 20x attenuation setting. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.
Features:
- Meets IEC 61010-031 safety standard
- Selectable attenuation settings of 20x / 50x / 200x
- 25 MHz bandwidth (at 50x/200x attenuation settings)
- 15 MHz bandwidth (at 20x attenuation setting)
- Up to ±700 V differential
- High accuracy (±2%)
- Power and over range indicator LEDs
- Optional European style 9 V power adapter (CT3957-EU)

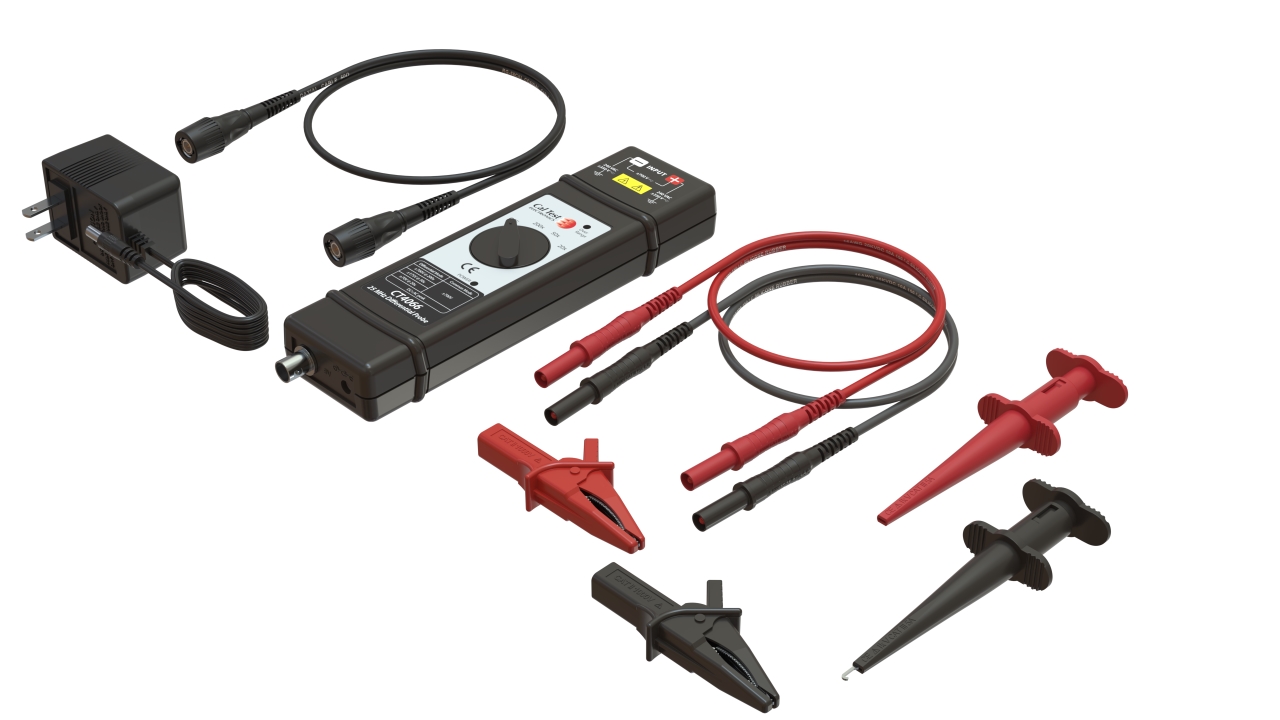

Comes with:
- (2) Pincer Clips, black & red
- (2) Alligator Clips, black & red
- (2) Sheathed 4 mm banana plug test leads, silicone jacketed, black & red
- Insulated BNC cable, 100 cm
- 9 V Power adapter included (CT3957-NA)
Specifications
- Attenuation
- 20x/50x/200x
- Bandwidth
- 25 MHz
- Max Differential Input Voltage
- 700 V
- Rated Voltage
- IEC 61010-1 CAT II
- Input Impedance
- 4 MΩ
- Rise Time
- 14 ns
- Input Leads Length
- 55 cm
- Output Leads Length
- 100 cm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
