CT3762
CT3762 Series
Active CatalogInsulated Alligator Clip
Med. Alligator Clips, Insul. w/4mm BPlug Jack, B/R Pair
$5.001 Year Warranty
Overview

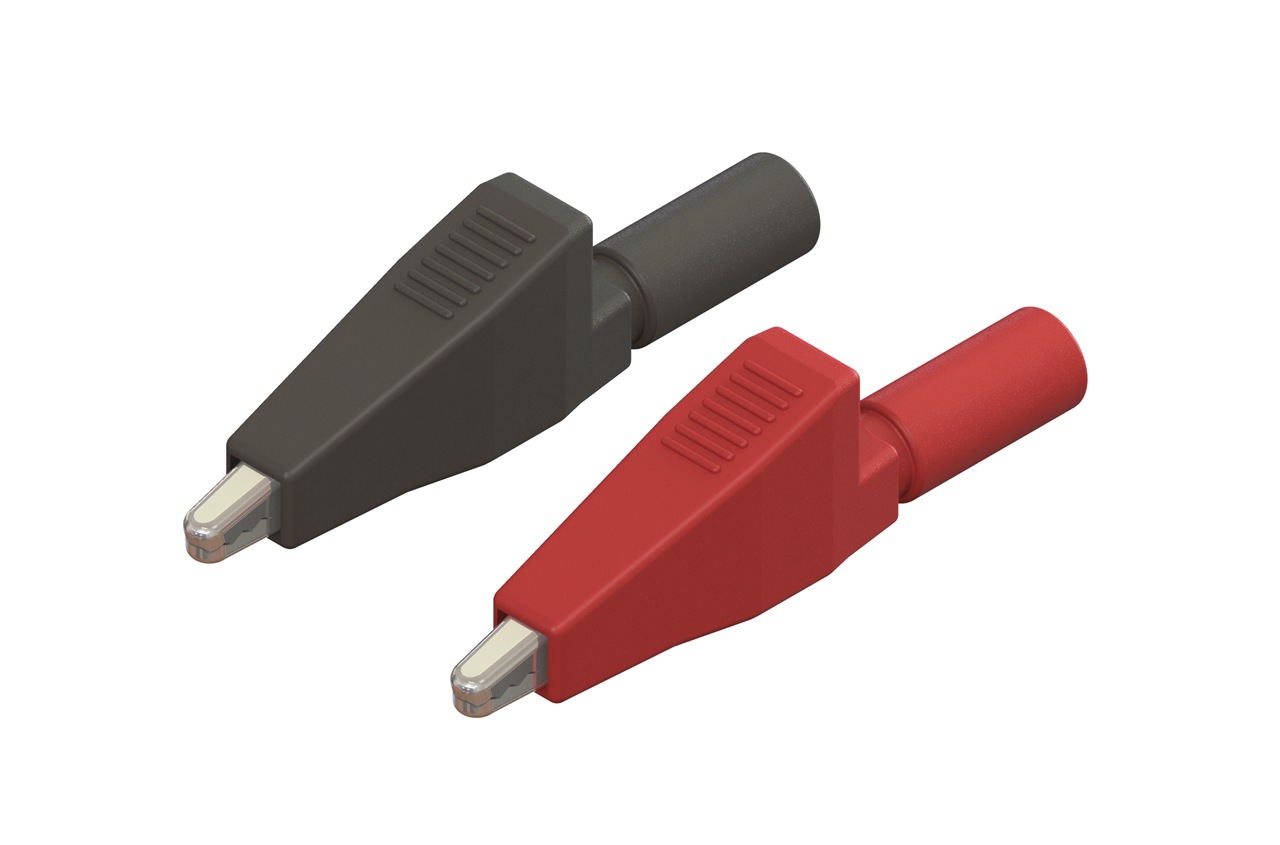

Black and red pair of standard alligator clips with flexible PVC insulators. The clips accept uninsulated 4 mm banana plugs (not sheath banana plugs).
Features:
- Materials:
- Body & spring: steel, nickel plated
- Insulator: PVC
- Black & red pair
- Overall length: 56 mm (2.21")
- Jaws open to 7.9 mm (0.31")
- IEC 61010-031 rated
Available as individual colors Model CT3761
Kit Contents
Specifications
- Type
- Partial Insulation
- Rated Voltage
- 300 V CAT II
- Max Current
- 10 A
- Voltage
- 300 V CAT II
- Operating Temperature
- 0° to +60°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Datasheet
