CT3761-2
CT3761 Series
Active CatalogInsulated Alligator Clip

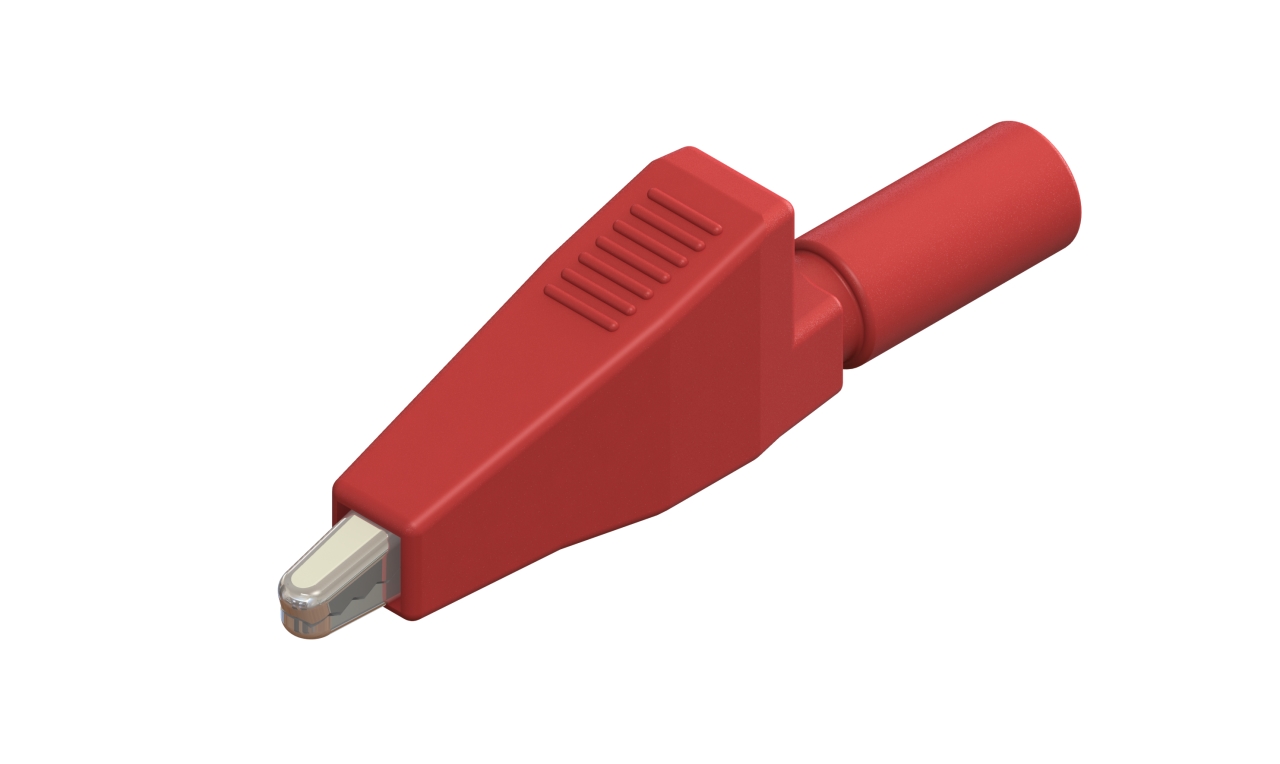

Med. Alligator Clip w/4mm B-Plug Jack, Red
$2.501 Year Warranty
Where to Buy
Overview
Individual color standard alligator clip with flexible PVC insulator. The clip accepts uninsulated 4 mm banana plugs (not sheath banana plugs).
Features:
- Materials:
- Body & spring: steel, nickel plated
- Insulator: PVC
- 2 colors available
- Overall length: 56 mm (2.21")
- Jaws open to 7.9 mm (0.31")
- IEC 61010-031 rated
Available as a black and red pair Model CT3762
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Rated Voltage | Max Current | Voltage | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3761-0 | Med. Alligator Clip w/4mm B-Plug Jack, Black | $2.50 | Active Catalog | 1 Year | Partial Insulation | Black | 300 V CAT II | 10 A | 300 V CAT II | 0° to +60°C | EA |
 |
CT3761-2 | Med. Alligator Clip w/4mm B-Plug Jack, Red | $2.50 | Active Catalog | 1 Year | Partial Insulation | Red | 300 V CAT II | 10 A | 300 V CAT II | 0° to +60°C | EA |
Specifications
- Type
- Partial Insulation
- Color
- Red
- Rated Voltage
- 300 V CAT II
- Max Current
- 10 A
- Voltage
- 300 V CAT II
- Operating Temperature
- 0° to +60°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 95 days
- See More Specifications
- Datasheet
