Overview

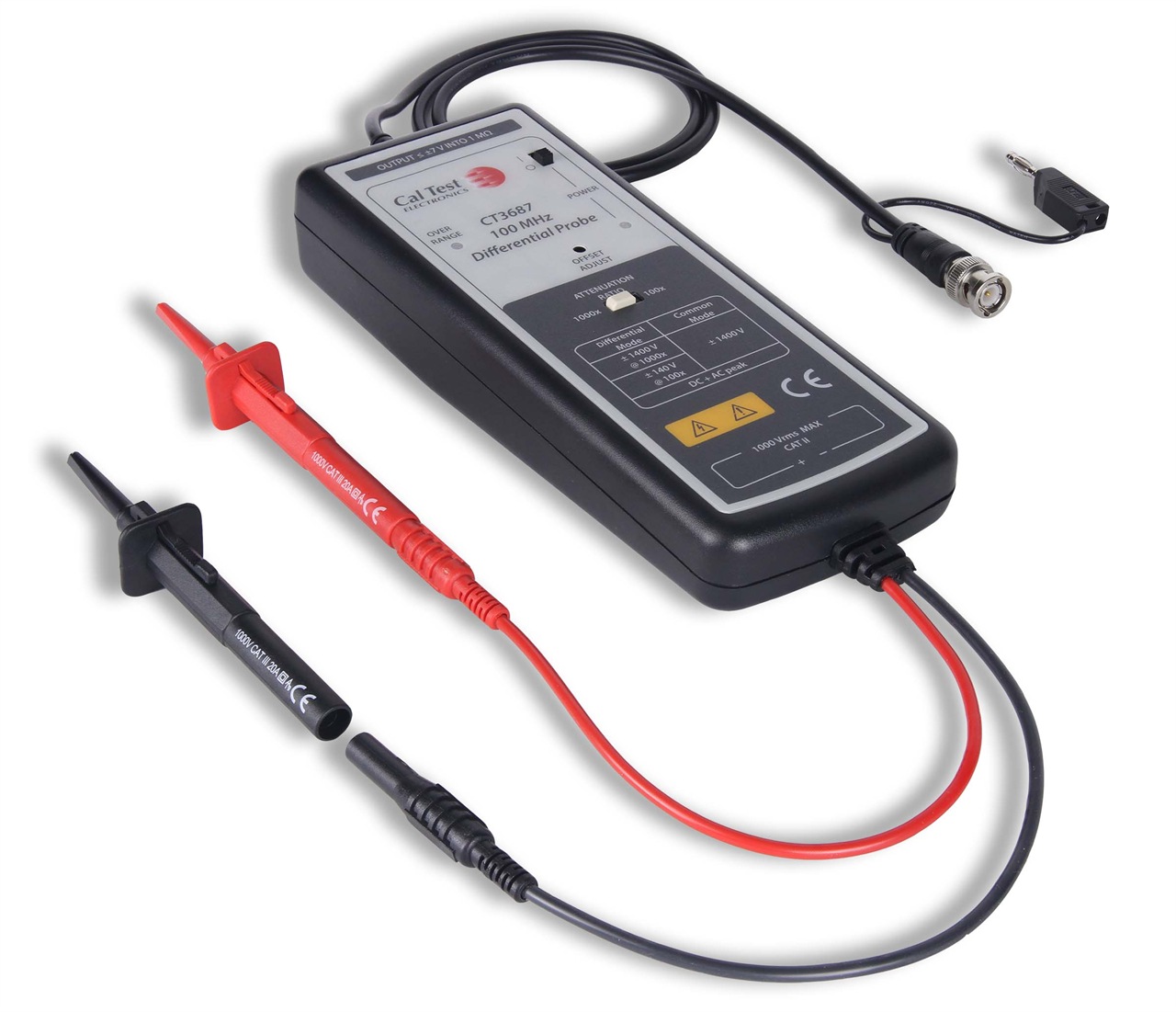

The CT3687 is a high-voltage active differential probe designed for safe, accurate floating measurements up to ±1,400 V. With a wide 100 MHz bandwidth, switchable attenuation (100x / 1000x), and ±1% accuracy, it’s ideal for power electronics, motor drives, and high-voltage R&D applications.

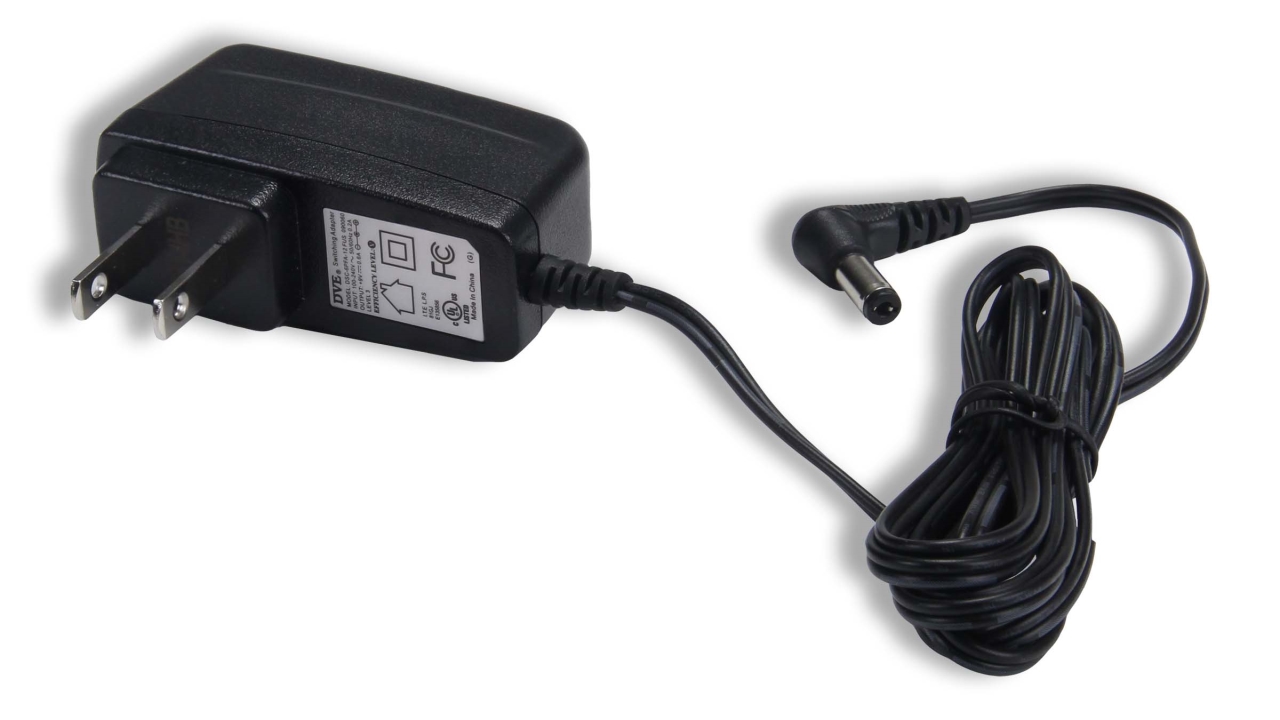

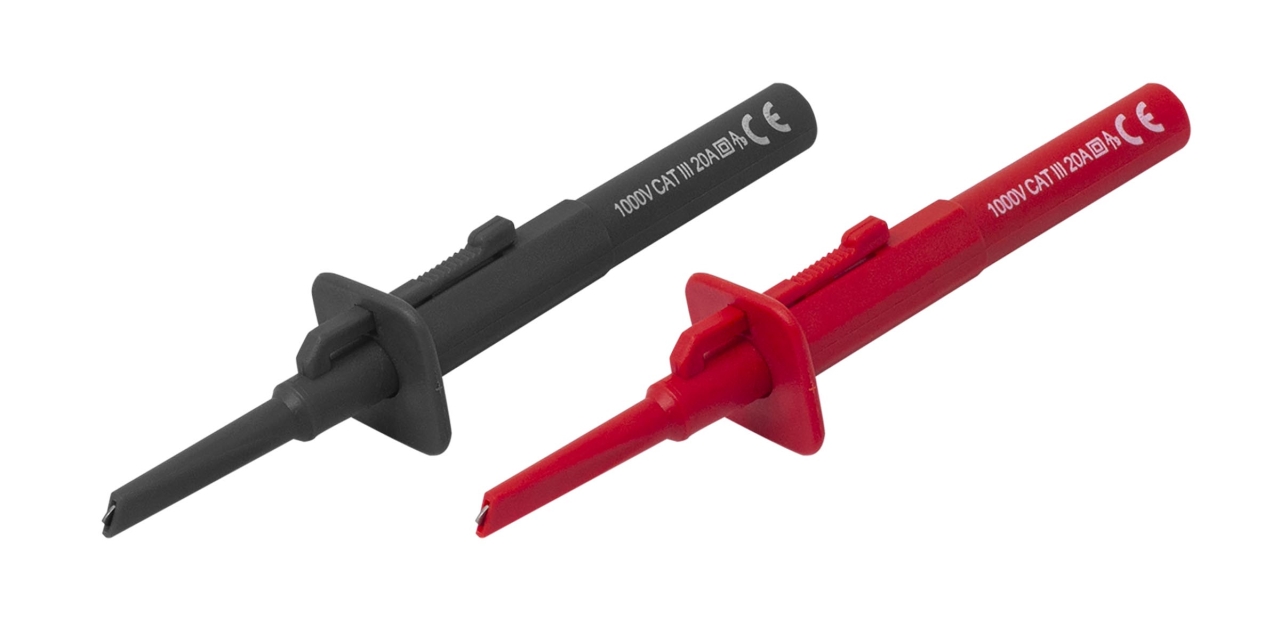

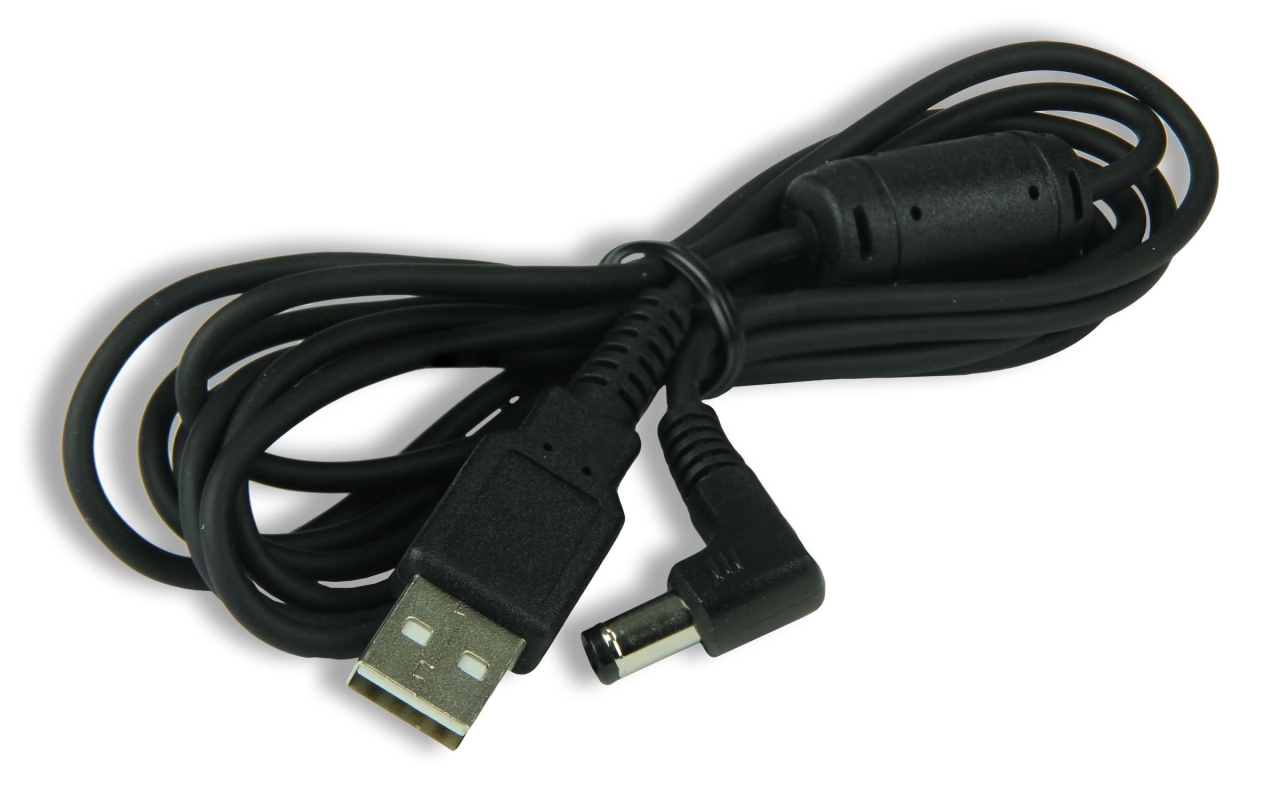

Compatible with any oscilloscope with 1 MΩ input impedance, the CT3687 operates on 4 AA batteries (included) or optional AC adapter (CT3723) or USB power lead (CT4122). It comes complete with hook probes and a digital user manual for immediate us
Applications:
- Switching power supply development
- Power inverter and converter testing
- Motor drive system measurements
- Precision high-voltage differential diagnostics
Features
- 100 MHz bandwidth (-3 dB), 3.5 ns rise time
- ±140 V @ 100x, ±1,400 V @ 1000x differential input
- Switchable 100x / 1000x attenuation
- Power and over-range indicators
Specifications
- Attenuation
- 100x/1000x
- Bandwidth
- 100 MHz
- Max Differential Input Voltage
- 1400 V (1.4 kV)
- Rated Voltage
- IEC 61010-031 CAT II
- Input Impedance
- 4 MΩ
- Rise Time
- 3.5 ns
- Input Leads Length
- 30 cm
- Output Leads Length
- 90 cm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Country of Origin
- Taiwan
- Lead Time
- 98 days
