CT3681
CT3681 Series
Active Catalog70 MHz High Voltage Differential Probe
Differential Probe Kit, 70MHz 100x/1000x HV w/Probes & PS
$1,152.001 Year Warranty
Overview

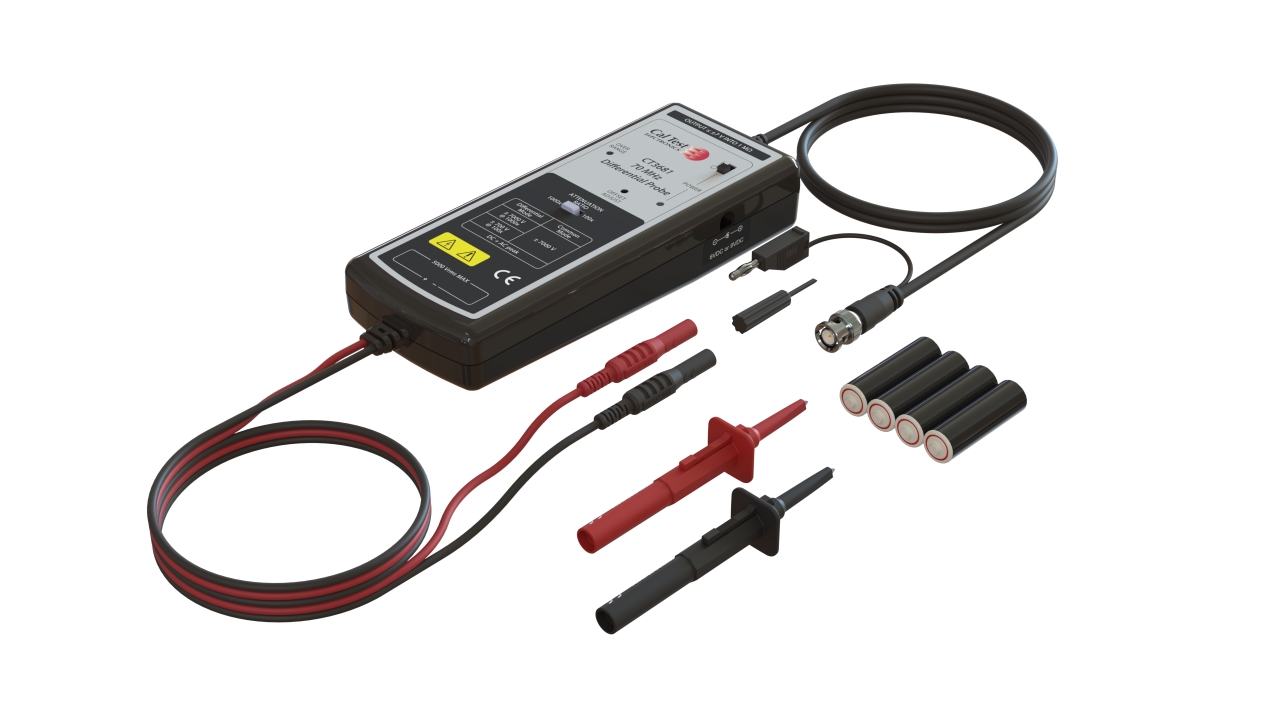

The CT3681 is a high-voltage active differential probe designed for safe, accurate floating measurements up to ±7,000 V. With a wide 70 MHz bandwidth, switchable attenuation (100x / 1000x), and ±2% accuracy, it’s ideal for power electronics, motor drives, and high-voltage R&D applications.
Compatible with any oscilloscope with 1 MΩ input impedance, the CT3681 operates on 4 AA batteries (included) or optional AC adapter (CT3723) or USB power lead (CT4122). It comes complete with hook probes and a user manual for immediate use.
Key Features:
- ±700 V @ 100x, ±7,000 V @ 1000x differential input
- 70 MHz bandwidth (-3 dB), 5 ns rise time
- Switchable 100x / 1000x attenuation
- ±2% accuracy, high CMRR: -80 dB @ 50 Hz
- Power and over-range indicators
- Powered by 4 AA batteries (included), optional AC or USB power adapter (CT3723)
- Includes hook probes (CT4386)
Applications:
- Switching power supply development
- Power inverter and converter testing
- Motor drive system measurements
- Precision high-voltage differential diagnostics
Specifications
- Attenuation
- 100x/1000x
- Bandwidth
- 70 MHz
- Max Differential Input Voltage
- 7000 V (7 kV)
- Rated Voltage
- IEC 61010-031 CAT I
- Input Impedance
- 100 MΩ
- Rise Time
- 5 ns
- Input Leads Length
- 60 cm
- Output Leads Length
- 90 cm
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8900
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
