Overview

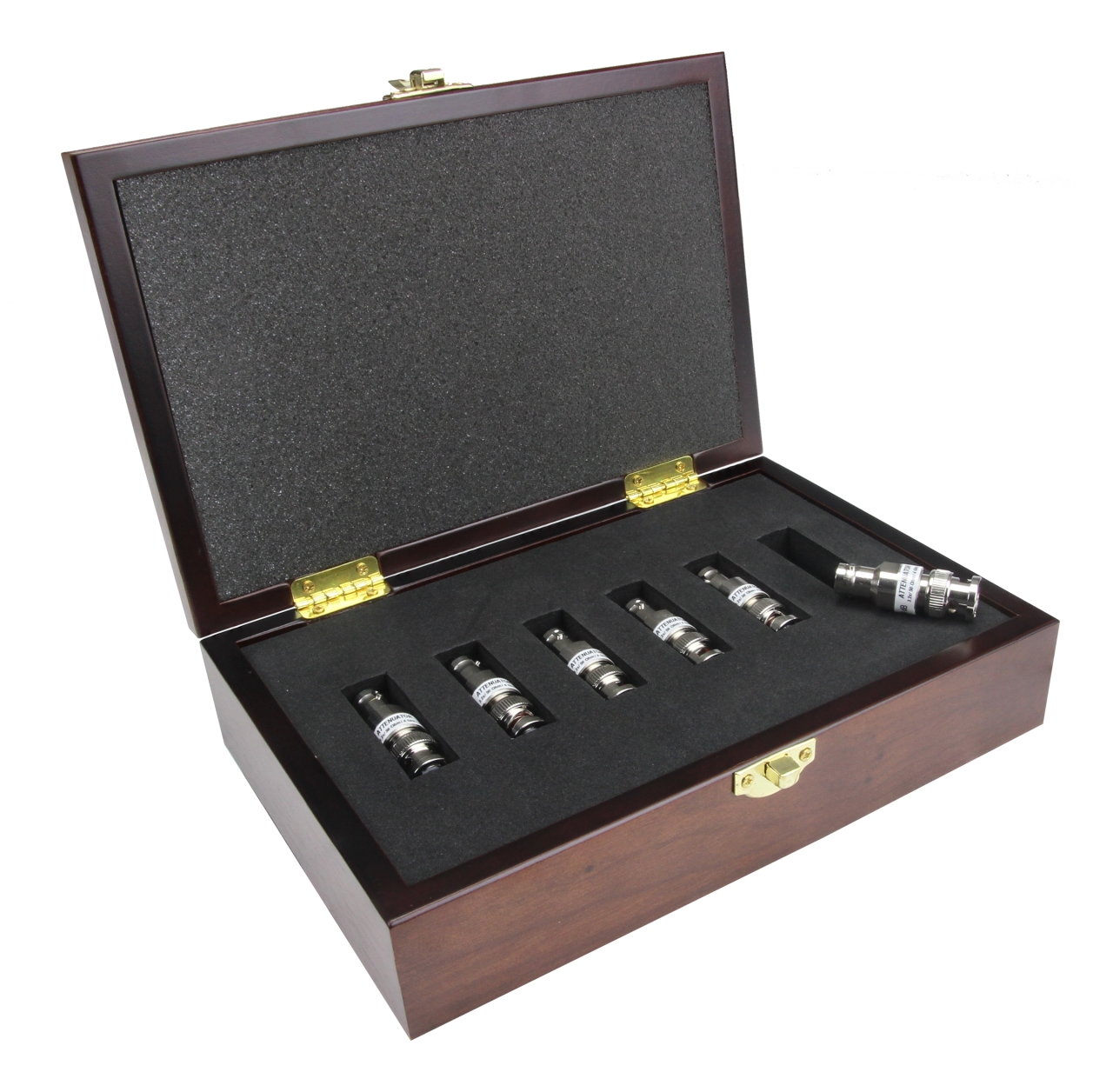

Six (6) precision, instrument grade BNC male to female fixed coaxial attenuators in a convenient kit.
Useful in a wide variety of applications including impedance matching and level control. Kit contains 3, 6, 8, 10, 14 and 20 dB attenuator values in foam-lined wooden case.
Features:
- High quality, rugged construction
- Excellent VSWR
- 2 W power
- Usable to 4 GHz
- Body: Brass, Nickel plated
- Contacts: BeCu, Gold plated
Kit Contents
- (1) Label, CT Kit, 1.25" x 3.5" BR&W Polye-2mil/Lex-5mil CT3382A - 450720-013
- (1) Case, Wooden 218x145x56mm, BNC Attn. Foam Cutout - 450730-002
- (1) Insert Card, Datasheet, CT3882A - 451012-001
- (1) BNC Attenuator, m-f, 50ohm, 3dB (1.4x) 4GHz 2W ND - CT3369A-03
- (1) BNC Attenuator, m-f, 50ohm, 6dB (2x) 4GHz 2W ND - CT3369A-06
- (1) BNC Attenuator, m-f, 50ohm, 8dB (2.5x) 4GHz 2W ND - CT3369A-08
- (1) BNC Attenuator, m-f, 50ohm, 10dB (3.2x) 4GHz 2W ND - CT3369A-10
- (1) BNC Attenuator, m-f, 50ohm, 14dB (5x) 4GHz 2W ND - CT3369A-14
- (1) BNC Attenuator, m-f, 50ohm, 20dB (10x) 4GHz 2W ND - CT3369A-20
Specifications
- Type
- BNC
- Attenuation
- -
- Average Power
- -
- Frequency Range
- -
- Impedance
- -
- Temperature
- -65º to +125°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
