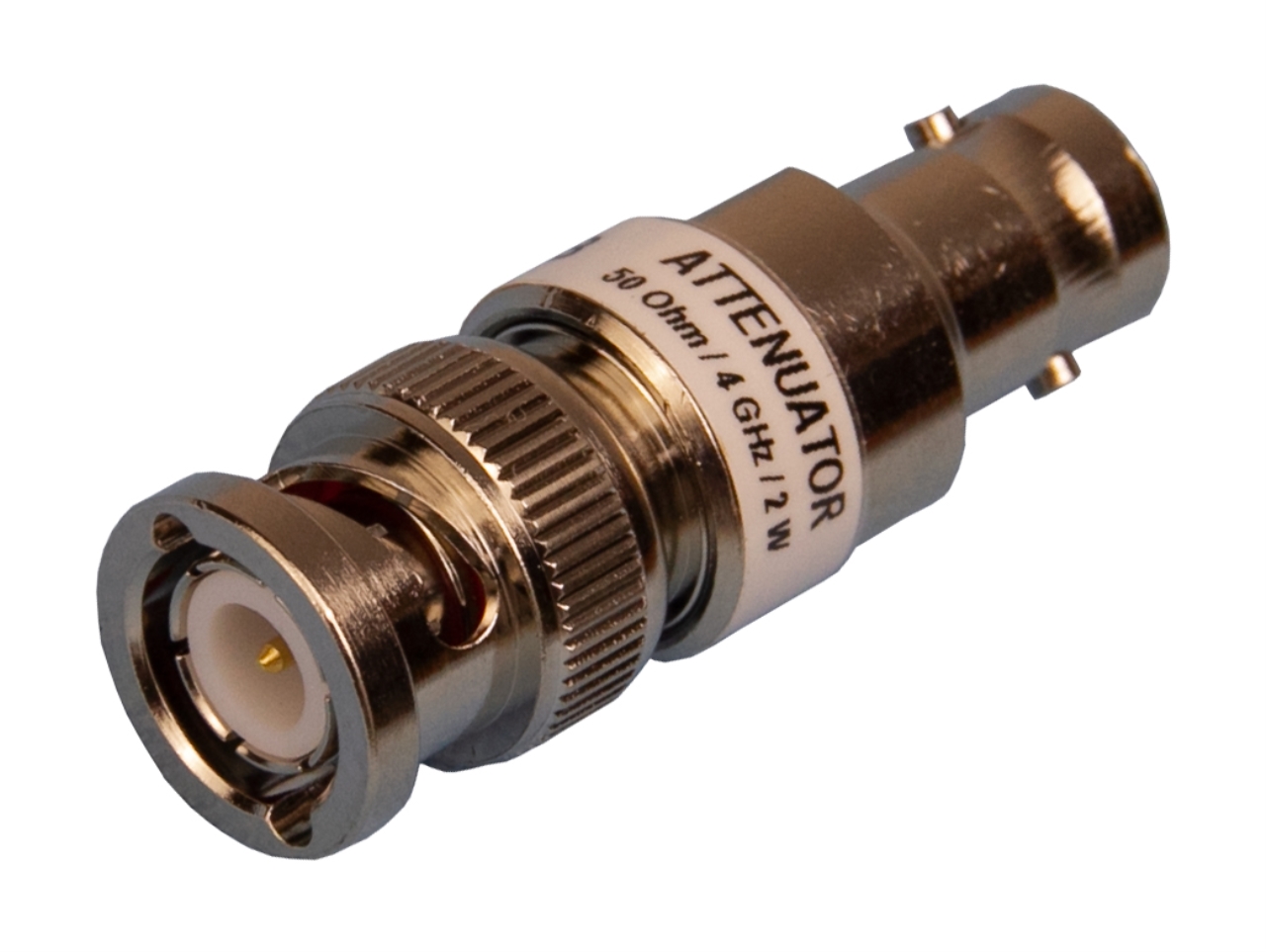

CT3369A-03
CT3369A Series
Active CatalogCoaxial Attenuator
BNC Attenuator, m-f, 50ohm, 3dB (1.4x) 4GHz 2W ND
$75.001 Year Warranty
Where to Buy
Overview
Instrument grade BNC male to female 50 Ω fixed coaxial attenuators. Useful in a wide variety of applications including impedance matching and level control.
- High quality, rugged construction
- Excellent VSWR
- 2 W power level
- Usable to 4 GHz
- Body: Brass, Nickel plated
- Contacts: BeCu, Gold plated
- Available as 6 attenuator kit CT3382
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Attenuation | Average Power | Frequency Range | Impedance | Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3369A-03 | BNC Attenuator, m-f, 50ohm, 3dB (1.4x) 4GHz 2W ND | $75.00 | Active Catalog | 1 Year | BNC | 3 dB | 2 W | DC to 4 GHz | 50 Ω | -65° to +125°C | EA |
 |
CT3369A-06 | BNC Attenuator, m-f, 50ohm, 6dB (2x) 4GHz 2W ND | $80.00 | Active Catalog | 1 Year | BNC | 6 dB | 2 W | DC to 4 GHz | 50 Ω | -65° to +125°C | EA |
 |
CT3369A-08 | BNC Attenuator, m-f, 50ohm, 8dB (2.5x) 4GHz 2W ND | $75.00 | Active Catalog | 1 Year | BNC | 8 dB | 2 W | DC to 4 GHz | 50 Ω | -65° to +125°C | EA |
 |
CT3369A-10 | BNC Attenuator, m-f, 50ohm, 10dB (3.2x) 4GHz 2W ND | $80.00 | Active Catalog | 1 Year | BNC | 10 dB | 2 W | DC to 4 GHz | 50 Ω | -65° to +125°C | EA |
 |
CT3369A-14 | BNC Attenuator, m-f, 50ohm, 14dB (5x) 4GHz 2W ND | $75.00 | Active Catalog | 1 Year | BNC | 14 dB | 2 W | DC to 4 GHz | 50 Ω | -65° to +125°C | EA |
 |
CT3369A-20 | BNC Attenuator, m-f, 50ohm, 20dB (10x) 4GHz 2W ND | $80.00 | Active Catalog | 1 Year | BNC | 20 dB | 2 W | DC to 4 GHz | 50 Ω | -65° to +125°C | EA |
 |
CT3369A-30 | BNC Attenuator, m-f, 50ohm, 30dB (31.6x) 4GHz 2W ND | $75.00 | Active Catalog | 1 Year | BNC | 30 dB | 2 W | DC to 4 GHz | 50 Ω | -65° to +125°C | EA |
Specifications
- Type
- BNC
- Attenuation
- 3 dB
- Average Power
- 2 W
- Frequency Range
- DC to 4 GHz
- Impedance
- 50 Ω
- Temperature
- -65° to +125°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
