Overview

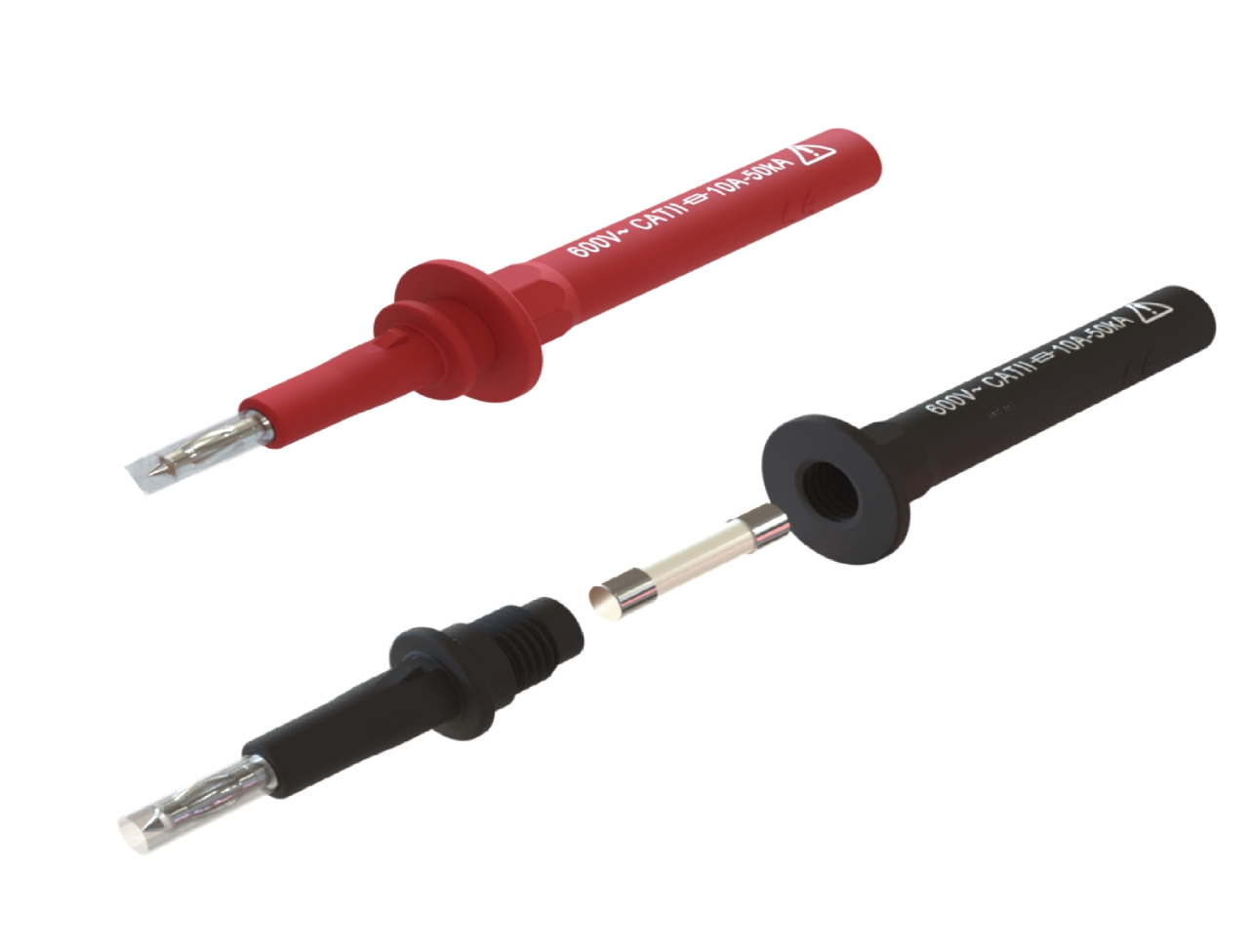

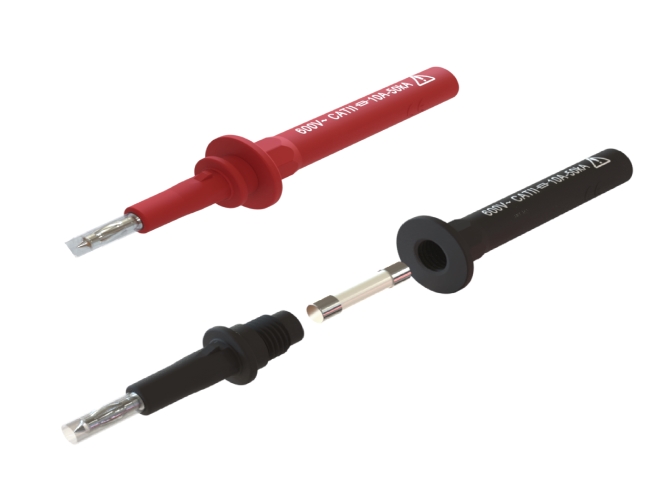

CT3146 is a pair of black and red standard size fused probes that feature a contact tip and 4 mm banana plug. One end of the probe contains a contact pin/4 mm plug combination with a retractable sleeve. The opposite end has a 4 mm jack.
Unscrew the front end of the probe to access and replace the 6 x 32 mm fast acting ceramic fuse, rated at 600 V : 10 A. The probe's body is marked with the rating of the internal fuse.
The probe's body accepts 4 mm sheathed (safety) banana plug test leads.
Features:
- Standard size bodies: 115 mm (4.5") length
- Tips: Brass, Nickel Plated
- 4 mm banana plug contacts: BeCu, Nickel Plated
- Replaceable ceramic fuses: Model CT3194, 10 A/600 V, 6 x 32 mm
Model CT2664 Insulated Probe Sprung Hooks works with these probe bodies.
Individual colors available as Model CT3145.
Kit Contents
Specifications
- Rated Voltage
- 1,000 V CAT III / 600 V CAT IV w/safety cap 1,000 V CAT II w/o safety cap
- Max Current
- 10 A
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
