Overview

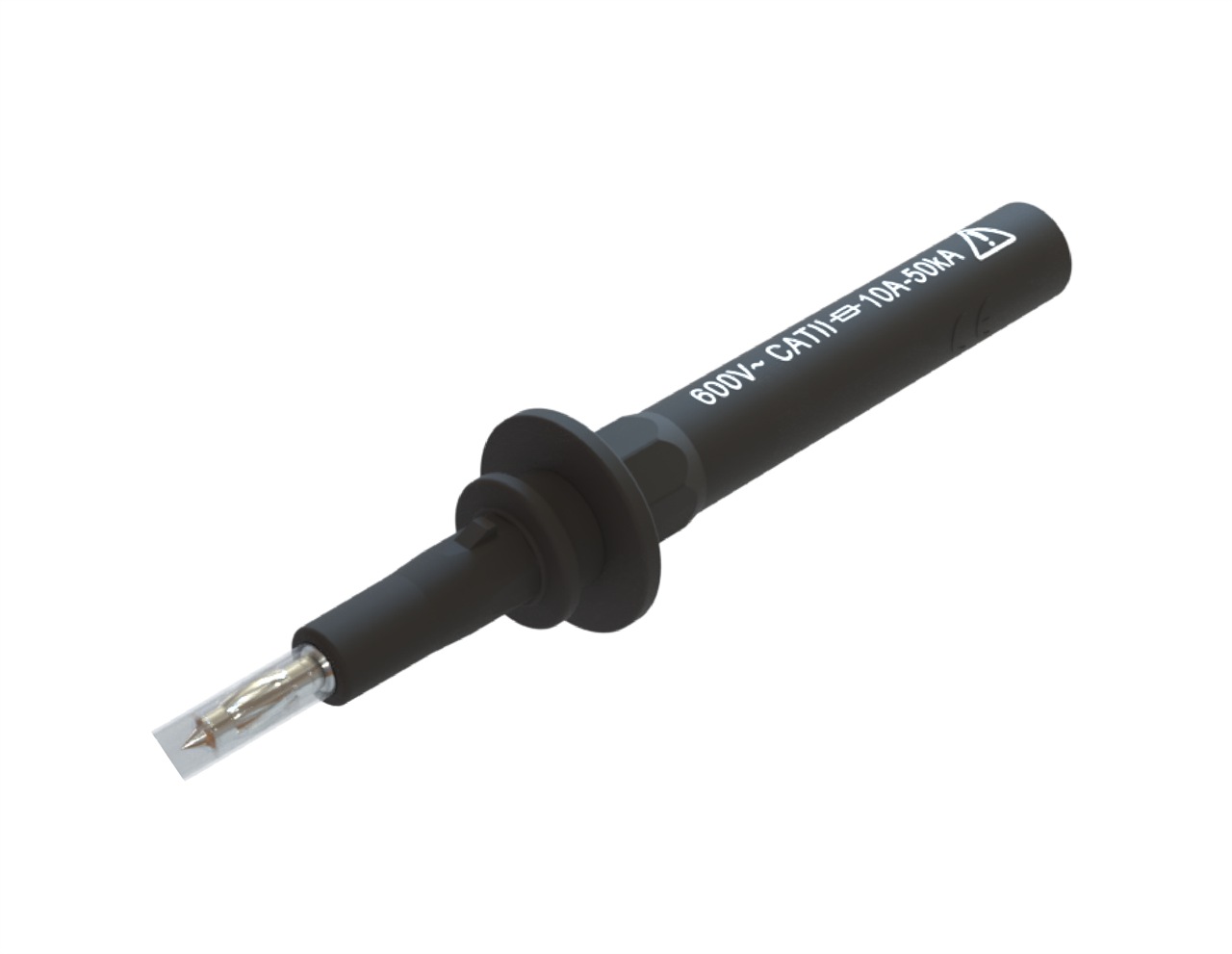

The CT3145 is an individual standard size fused probe body that features, both, a contact tip and 4 mm banana plug. One end of the probe contains a contact tip/4 mm plug combination with a retractable sleeve. The opposite end has a 4 mm jack.
Unscrew the front end of the body to access and replace the 6 x 32 mm fast acting ceramic fuse. The probe body is marked with the rating of the internal fuse.
Body accepts a 4 mm sheathed (safety) banana plug test lead.
Features:
- Standard size body: 115 mm (4.5") length
- Tip: Brass, Nickel Plated
- 4 mm banana plug contact: BeCu, Nickel Plated
- Replaceable ceramic fuse: Model CT3194, 10 A/600 V, 6 x 32 mm
- Black and red colors standard; other colors available as special order
Model CT2576 Insulated Probe Sprung Hook works with this probe body.
Black and red pair available as Model CT3146.
Models
| Image | Model | Description | MSRP | Status | Warranty | Rated Voltage | Max Current | Color | UOM |
|---|---|---|---|---|---|---|---|---|---|
 |
CT3145-0 | Fused Modular Probe, 10A/600V - Black | $27.00 | Active Catalog | 1 Year | 1,000 V CAT III / 600 V CAT IV w/safety cap 1,000 V CAT II w/o safety cap | 10 A | Black | EA |
 |
CT3145-2 | Fused Modular Probe, 10A/600V - Red | $27.00 | Active Catalog | 1 Year | 1,000 V CAT III / 600 V CAT IV w/safety cap 1,000 V CAT II w/o safety cap | 10 A | Red | EA |
Specifications
- Rated Voltage
- 1,000 V CAT III / 600 V CAT IV w/safety cap 1,000 V CAT II w/o safety cap
- Max Current
- 10 A
- Color
- Black
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
