Product resources
Overview

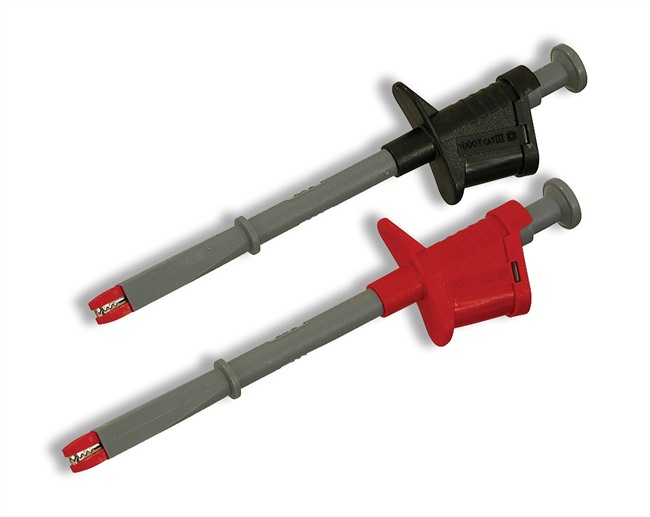

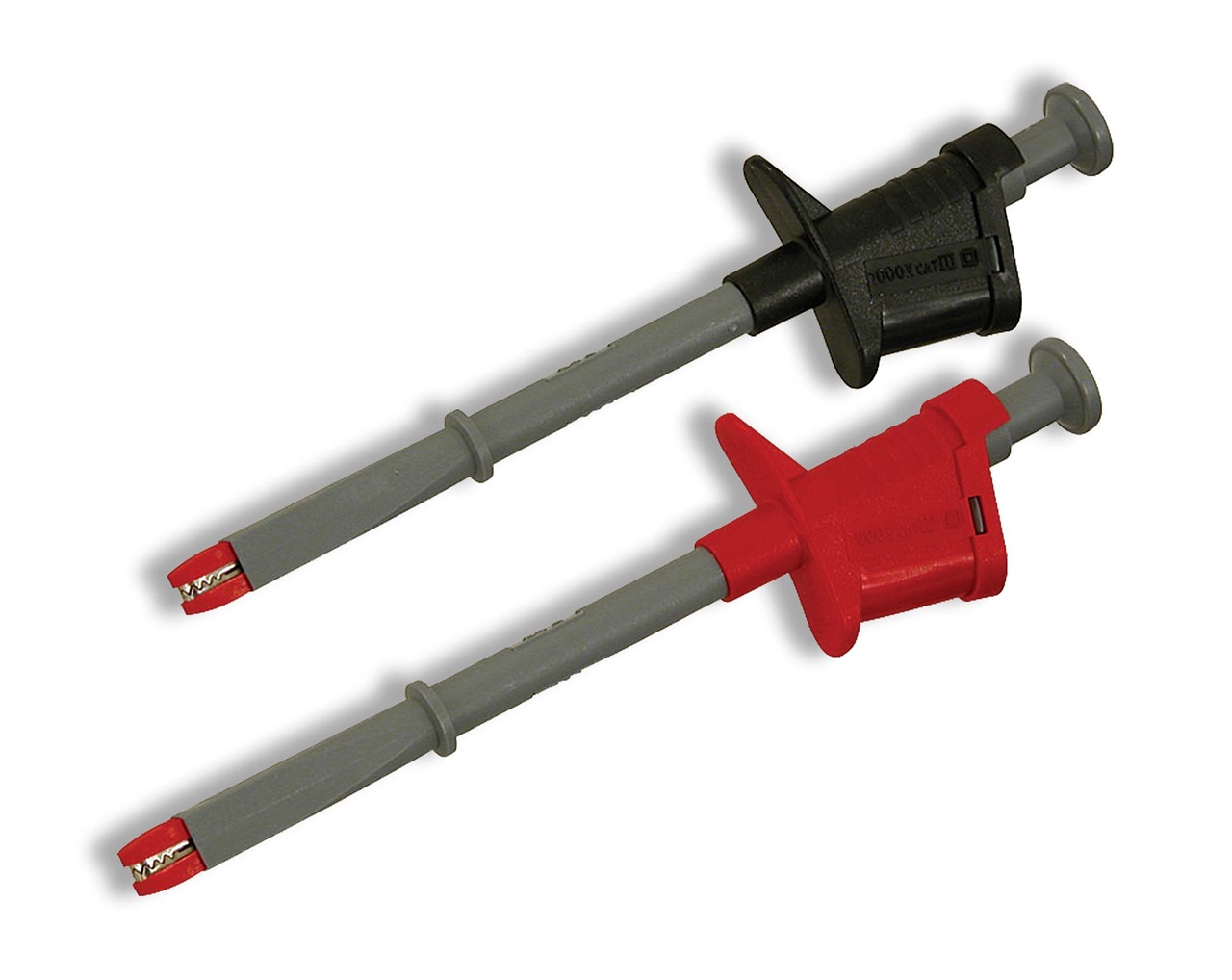

Pair of (R &B) 6" Ideal for high current application, jaw style contact can grasp terminals to 12.7 mm (0.50") in diameter. Rigid housing allow increased current capacity. Insulation on jaw contacts protects against shorting.
- Materials: Body: Polyamide (Nylon); Contact tip: Brass, Nickel Plt.
- Overall length 6"
- (2) Alligator Clips (1) Red, (1) Black
Kit Contents
Specifications
- Type
- Alligator
- Rated Voltage
- 1,000 V CAT III
- Max Current
- 20 A
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
