Product resources

CT2883-4-50

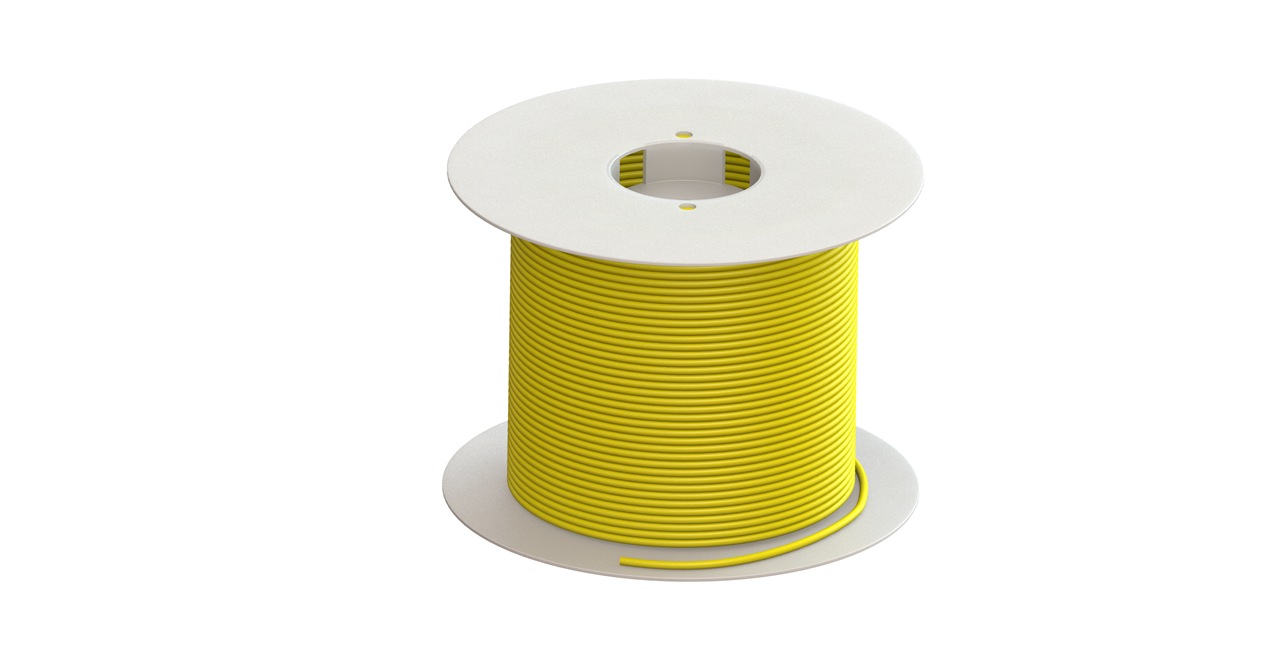

Name: CT2883-4-50 Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Yellow, 50m Spl
Brand: Cal Test Electronics
SKU: CT2883-4-50
Price: 150.0 USD
Availability: Discontinued

CT2883 Series

Discontinued

Test Lead Wire for CT3180 MiniPro Test Clips

Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Yellow, 50m Spl

1 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	Low Stock	Buy Now →
MOUSER ELECTRONICS	Low Stock	Buy Now →

Select Variant

Length

10 m 100 m 50 m

Color

Black Blue Green Red White Yellow

Overview

Ideal for building Do-It-Yourself (DIY) test leads, patch cords, and test fixtures. Silicone is the best test lead jacket material, combining high flexibility, even at low temperatures, with resistance to burns and chemicals. The conductor is highly stranded soft bare copper for additional flexibility.

21 AWG (0.40 mm²) Silicone jacket, 6 A
Meets the safety requirements of IEC 61010-031 1000 V CAT III.
Available in 3 Lengths, 10m, 50m & 100m
For use with CT3180 Series MiniPro Test Clips

Models

Model	Description	MSRP	Status	Warranty	Length	Color	Rated Voltage	Max Current	Wire Gauge	Conductor Area	UOM
CT2883-0-10	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Black, 10m Pkg	$30.00	Active Catalog	1 Year	10 m	Black	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-0-100	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Black, 100m Spl	$300.00	Active Catalog	1 Year	100 m	Black	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-0-50	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Black, 50m Spl	$150.00	Active Catalog	1 Year	50 m	Black	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-2-10	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Red, 10m Pkg	$30.00	Active Catalog	1 Year	10 m	Red	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-2-100	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Red, 100m Spl	$300.00	Active Catalog	1 Year	100 m	Red	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-2-50	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Red, 50m Spl	$150.00	Active Catalog	1 Year	50 m	Red	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-4-10	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Yellow, 10m Pkg		Discontinued	1 Year	10 m	Yellow	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-4-100	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Yellow, 100m Spl		Discontinued	1 Year	100 m	Yellow	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-4-50	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Yellow, 50m Spl		Discontinued	1 Year	50 m	Yellow	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-5-10	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Green, 10m Pkg		Discontinued	1 Year	10 m	Green	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-5-100	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Green, 100m Spl		Discontinued	1 Year	100 m	Green	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-5-50	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Green, 50m Spl		Discontinued	1 Year	50 m	Green	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-6-10	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Blue, 10m Pkg		Discontinued	1 Year	10 m	Blue	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-6-100	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, Blue, 100m Spl		Discontinued	1 Year	100 m	Blue	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-6-50	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, 50m Spl		Discontinued	1 Year	50 m	Blue	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-9-10	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, White, 10m Pkg		Discontinued	1 Year	10 m	White	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-9-100	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, White, 100m Spl		Discontinued	1 Year	100 m	White	1000 V CAT III	6	21 AWG	0.40 mm²	EA
CT2883-9-50	Wire, SILIC, 104 BC 0.40, 2.1mm (.083")OD, White, 50m Spl		Discontinued	1 Year	50 m	White	1000 V CAT III	6	21 AWG	0.40 mm²	EA
