CT2882A-2-50

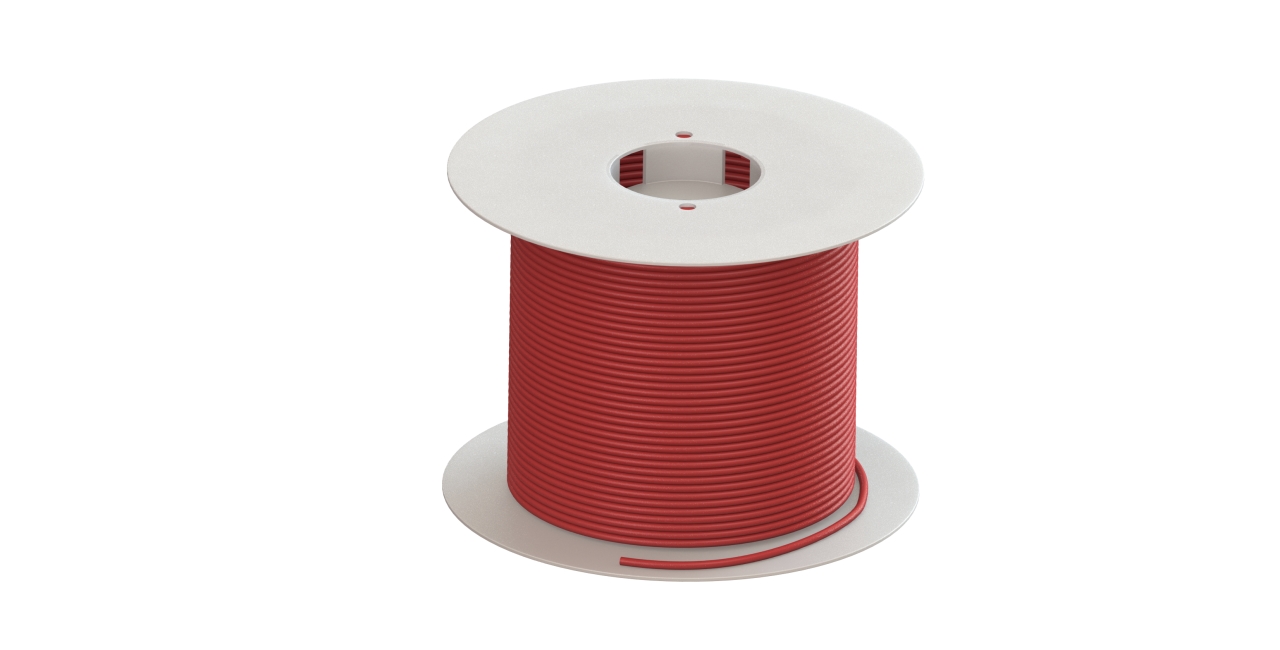

Name: CT2882A-2-50 Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Red, 50m Spl
Brand: Cal Test Electronics
SKU: CT2882A-2-50
Price: 275.0 USD
Availability: InStock

CT2882A Series

Active Catalog

Test Lead Wire

Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Red, 50m Spl

$275.001 Year Warranty

Where to Buy

Distributor	Availability
DIGIKEY	Low Stock	Buy Now →
MOUSER ELECTRONICS	Low Stock	Buy Now →

Select Variant

Length

10 m 100 m 50 m

Color

Black Red

Overview

The CT2882A PVC-jacketed test lead wire is designed for demanding high-current applications, delivering both performance and safety. It features a rugged dual-layer PVC jacket with a colored outer layer and a white inner layer for easy detection of cuts or abrasion. The conductor is constructed from highly stranded soft bare copper to provide excellent flexibility and durability.

Features:

13 AWG (2.50 mm²) PVC jacketed wire, rated for 36 A
Certified to IEC 61010-031 safety standard, 1,000 V CAT IV
Available in 10 m, 50 m, and 100 m lengths
Offered in six color options

Kit Contents

(0.5) Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Red, 100m Spl - CT2882A-2-100

Models

Model	Description	MSRP	Status	Warranty	Length	Color	Rated Voltage	Max Current	Wire Gauge	Conductor Area
CT2882A-0-10	Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Black, 10m Spl	$55.00	Active Catalog	1 Year	10 m	Black	1000 V CAT IV	36	13 AWG	2.50 mm²
CT2882A-0-100	Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Black, 100m Spl	$550.00	Active Catalog	1 Year	100 m	Black	1000 V CAT IV	36	13 AWG	2.50 mm²
CT2882A-0-50	Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Black, 50m Spl	$275.00	Active Catalog	1 Year	50 m	Black	1000 V CAT IV	36	13 AWG	2.50 mm²
CT2882A-2-10	Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Red, 10m Spl	$55.00	Active Catalog	1 Year	10 m	Red	1000 V CAT IV	36	13 AWG	2.50 mm²
CT2882A-2-100	Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Red, 100m Spl	$550.00	Active Catalog	1 Year	100 m	Red	1000 V CAT IV	36	13 AWG	2.50 mm²
CT2882A-2-50	Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Red, 50m Spl	$275.00	Active Catalog	1 Year	50 m	Red	1000 V CAT IV	36	13 AWG	2.50 mm²

Specifications

Length: 50 m
Color: Red
Rated Voltage: 1000 V CAT IV
Max Current: 36
Wire Gauge: 13 AWG
Conductor Area: 2.50 mm²
OD: 3.9 mm (0.154")
Stranding: 504 x 0.08 mm
Insulation Material: PVC
Operating Temperature: -20° to +80° C
Export Control Classification Number (ECCN): EAR99
REACH Compliance: Compliant
RoHS Compliance: RoHS 2 (2015/863/EU) Compliant
Schedule B Number: 9030.90.8010
Country of Origin: Taiwan
Lead Time: 98 days
See More Specifications: Product Drawing
