Overview

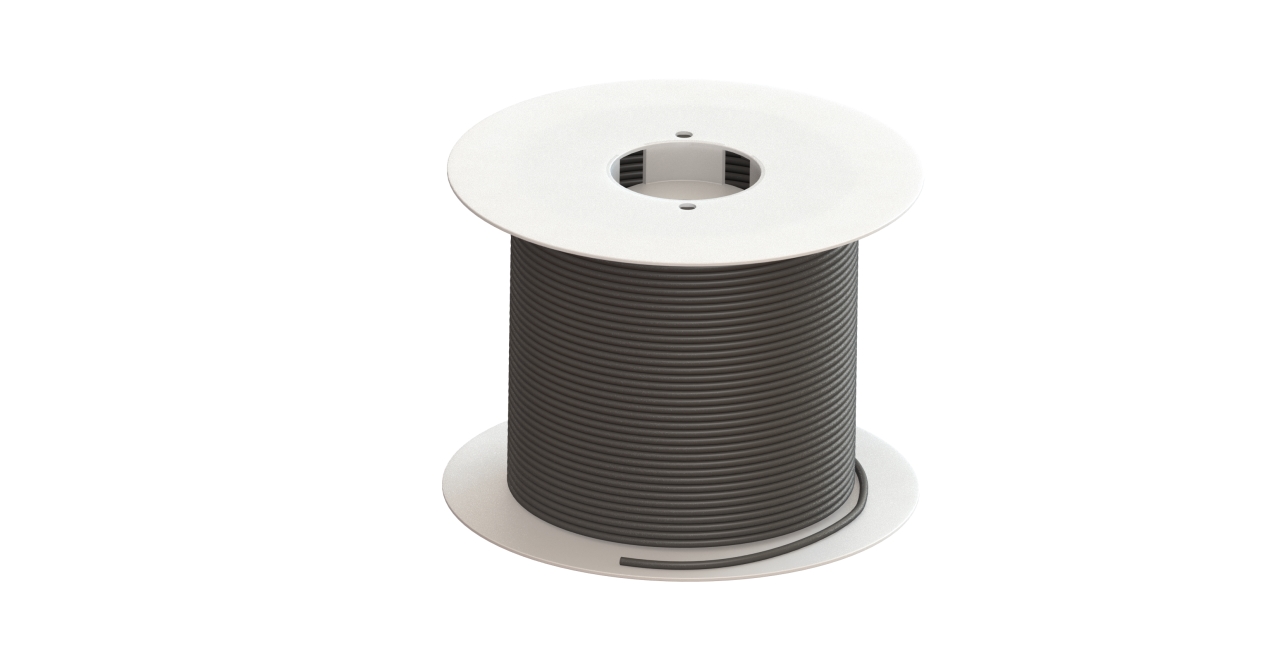

The CT2882A PVC-jacketed test lead wire is designed for demanding high-current applications, delivering both performance and safety. It features a rugged dual-layer PVC jacket with a colored outer layer and a white inner layer for easy detection of cuts or abrasion. The conductor is constructed from highly stranded soft bare copper to provide excellent flexibility and durability.
Features:
- 13 AWG (2.50 mm2) PVC jacketed wire, rated for 36 A
- Certified to IEC 61010-031 safety standard, 1,000 V CAT IV
- Available in 10 m, 50 m, and 100 m lengths
- Offered in six color options
Kit Contents
- (0.5) Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Black, 100m Spl - CT2882A-0-100
Models
| Image | Model | Description | MSRP | Status | Warranty | Length | Color | Rated Voltage | Max Current | Wire Gauge | Conductor Area | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2882A-0-10 | Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Black, 10m Spl | $55.00 | Active Catalog | 1 Year | 10 m | Black | 1000 V CAT IV | 36 | 13 AWG | 2.50 mm² | |
 |
CT2882A-0-100 | Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Black, 100m Spl | $550.00 | Active Catalog | 1 Year | 100 m | Black | 1000 V CAT IV | 36 | 13 AWG | 2.50 mm² | |
 |
CT2882A-0-50 | Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Black, 50m Spl | $275.00 | Active Catalog | 1 Year | 50 m | Black | 1000 V CAT IV | 36 | 13 AWG | 2.50 mm² | |
 |
CT2882A-2-10 | Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Red, 10m Spl | $55.00 | Active Catalog | 1 Year | 10 m | Red | 1000 V CAT IV | 36 | 13 AWG | 2.50 mm² | |
 |
CT2882A-2-100 | Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Red, 100m Spl | $550.00 | Active Catalog | 1 Year | 100 m | Red | 1000 V CAT IV | 36 | 13 AWG | 2.50 mm² | |
 |
CT2882A-2-50 | Wire, PVC, 504 BC 2.50, 3.9mm (.154")OD, Red, 50m Spl | $275.00 | Active Catalog | 1 Year | 50 m | Red | 1000 V CAT IV | 36 | 13 AWG | 2.50 mm² |
Specifications
- Length
- 50 m
- Color
- Black
- Rated Voltage
- 1000 V CAT IV
- Max Current
- 36
- Wire Gauge
- 13 AWG
- Conductor Area
- 2.50 mm²
- OD
- 3.9 mm (0.154")
- Stranding
- 504 x 0.08 mm
- Insulation Material
- PVC
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 98 days
- See More Specifications
- Product Drawing
