CT2631A-S-9

Name: CT2631A-S-9
Brand: Cal Test Electronics
SKU: CT2631A-S-9

CT2631A Series

Active Catalog

CT2631A 4 mm DIY Stacking Banana Plug

Contact for pricing

Where to Buy

No distributor stock found. View all distributors →

Select Variant

Configuration

Solderless (Screw)Solder

Color

Black Blue Green Red White Yellow

Overview

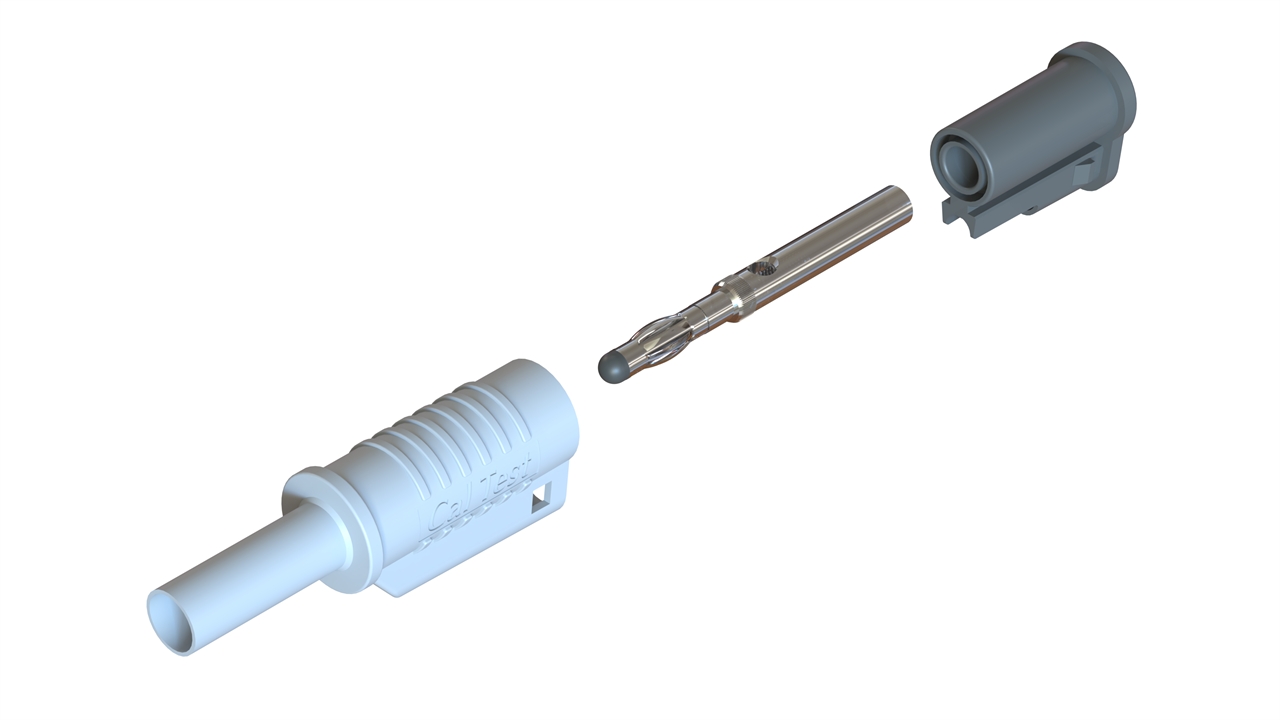

The CT2631A is a do-it-yourself 4 mm stacking banana plug with solder or solderless (screw) configurations for assembling or repairing custom test leads. The plug is designed for direct wire connection to the plug body for a secure, reliable and insulated connection.

It features a polypropylene insulator, nickel-plated brass plug body, and nickel-plated beryllium copper spring contact. The rated voltage is 1,000 V CAT III and the maximum current rating is 36 A; when assembled with test lead wire with different ratings, the lower rating applies.

Features

Stacking Banana Plug design
Beryllium copper spring contact for long-lasting, reliable contact
UL94 V-0 flame-retardant polypropylene insulator
CE and RoHS 2 compliant

Models

Model	Status	Type	Rated Voltage	Color	Contact Material	Insulation Material	Max Current
CT2631A-0	Active Catalog	Stacking	1000 V CAT III	Black	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-2	Active Catalog	Stacking	1000 V CAT III	Red	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-4	Active Catalog	Stacking	1000 V CAT III	Yellow	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-5	Active Catalog	Stacking	1000 V CAT III	Green	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-6	Active Catalog	Stacking	1000 V CAT III	Blue	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-9	Active Catalog	Stacking	1000 V CAT III	White	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-S-0	Active Catalog	Stacking	1000 V CAT III	Black	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-S-2	Active Catalog	Stacking	1000 V CAT III	Red	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-S-4	Active Catalog	Stacking	1000 V CAT III	Yellow	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-S-5	Active Catalog	Stacking	1000 V CAT III	Green	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-S-6	Active Catalog	Stacking	1000 V CAT III	Blue	Brass, Nickel Plated	Polypropylene	36 A
CT2631A-S-9	Active Catalog	Stacking	1000 V CAT III	White	Brass, Nickel Plated	Polypropylene	36 A
