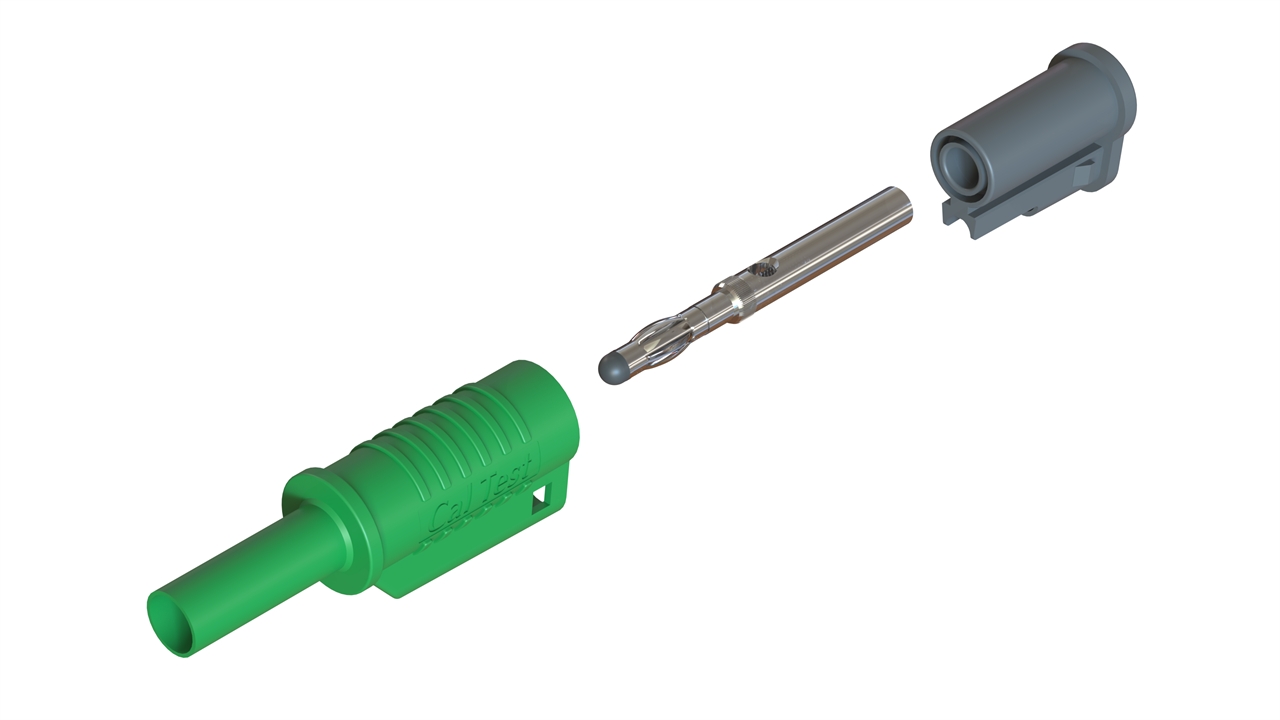

CT2631A-S-5
CT2631A Series
Active CatalogCT2631A 4 mm DIY Stacking Banana Plug
Do It Yourself, 4 mm Stacking Sheathed Banana Plug, Solder - Green
$6.001 Year Warranty
Where to Buy
Overview
The CT2631A is a do-it-yourself 4 mm stacking banana plug with solder or solderless (screw) configurations for assembling or repairing custom test leads. The plug is designed for direct wire connection to the plug body for a secure, reliable and insulated connection.
It features a polypropylene insulator, nickel-plated brass plug body, and nickel-plated beryllium copper spring contact. The rated voltage is 1,000 V CAT III and the maximum current rating is 36 A; when assembled with test lead wire with different ratings, the lower rating applies.
Features
- Stacking Banana Plug design
- Beryllium copper spring contact for long-lasting, reliable contact
- UL94 V-0 flame-retardant polypropylene insulator
- CE and RoHS 2 compliant
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2631A-0 | DIY 4mm StkShth Plug, Solderless - Black | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | Black | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-2 | DIY 4mm StkShth Plug, Solderless - Red | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | Red | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-4 | DIY 4mm StkShth Plug, Solderless - Yellow | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | Yellow | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-5 | DIY 4mm StkShth Plug, Solderless - Green | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | Green | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-6 | DIY 4mm StkShth Plug, Solderless - Blue | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | Blue | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-9 | DIY 4mm StkShth Plug, Solderless - White | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | White | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-S-0 | DIY 4mm StkShth Plug, Solder - Black | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | Black | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-S-2 | DIY 4mm StkShth Plug, Solder - Red | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | Red | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-S-4 | DIY 4mm StkShth Plug, Solder - Yellow | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | Yellow | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-S-5 | DIY 4mm StkShth Plug, Solder - Green | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | Green | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-S-6 | DIY 4mm StkShth Plug, Solder - Blue | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | Blue | Brass, Nickel Plated | Polypropylene | 36 | EA |
 |
CT2631A-S-9 | DIY 4mm StkShth Plug, Solder - White | $6.00 | Active Catalog | 1 Year | Stacking | 1000 V CAT III | White | Brass, Nickel Plated | Polypropylene | 36 | EA |
Specifications
- Type
- Stacking
- Rated Voltage
- 1000 V CAT III
- Color
- Green
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polypropylene
- Max Current
- 36
- Operating Temperature
- -0° to +60°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
