CT2484
CT2484 Series
Active CatalogBanana Plug Test Lead Set
Lead Set, 4mm Shth P-RaP - SILIC 0.75, 150cm, B/R
$40.001 Year Warranty
Where to Buy
Select Variant
Length
Overview

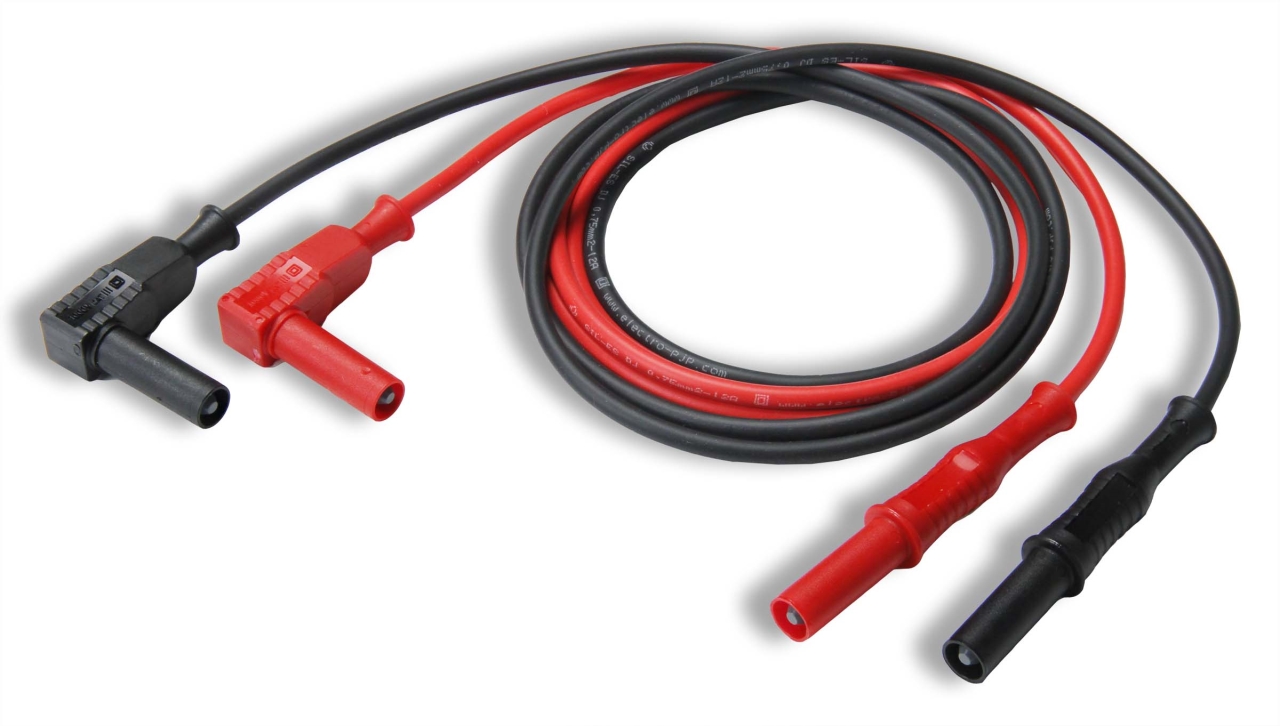

Test lead pair, Black and Red. Most common lead for handheld DMMs. Right-Angle Banana Plug for the meter and straight banana plug for the probe or clip. With Silicone jacketed wire, 0.75 mm2 (18 AWG), length 150 cm (60").
- Black and Red colors
- Silicone Jacket
- Safety plug tips (grey)
Kit Contents
- (1) Lead, 4mm Shth P-RaP - SILIC 0.75, 150cm, Black - CT2176-150-0
- (1) Lead, 4mm Shth P-RaP - SILIC 0.75, 150cm, Red - CT2176-150-2
Specifications
- Type
- Banana Plug
- Connector A
- Banana Plug
- Length
- 150 cm (60")
- Rated Voltage
- 1,000 V CAT III / 600 V CAT IV
- Max Current
- 12 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.75 mm²
- Jacket Material
- Silicone
- OD
- 3.7 mm (0.146")
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 84 days
