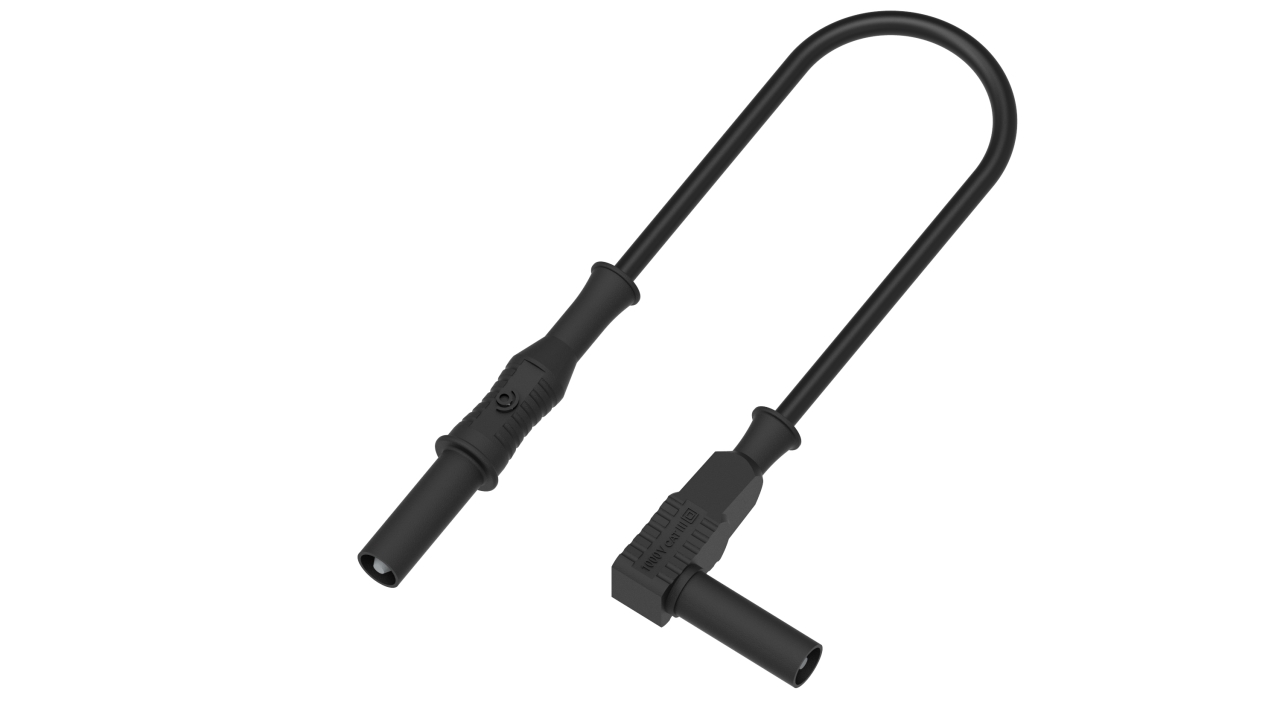

CT2176-150-0

Overview

Models

Image	Model	Description	MSRP	Status	Warranty	Type	Connector A	Length	Color	Rated Voltage	Max Current	Wire Gauge	UOM
	CT2176-100-0	Lead, 4mm Shth P-RaP - SILIC 0.75, 100cm, Black	$18.00	Active Catalog	1 Year	Banana Plug	Banana Plug	100 cm	Black	1,000 V CAT III / 600 V CAT IV	12 A	18 AWG	EA
	CT2176-100-2	Lead, 4mm Shth P-RaP - SILIC 0.75, 100cm, Red	$18.00	Active Catalog	1 Year	Banana Plug	Banana Plug	100 cm	Red	1,000 V CAT III / 600 V CAT IV	12 A	18 AWG	EA
	CT2176-150-0	Lead, 4mm Shth P-RaP - SILIC 0.75, 150cm, Black	$20.00	Active Catalog	1 Year	Banana Plug	Banana Plug	150 cm	Black	1,000 V CAT III / 600 V CAT IV	12 A	18 AWG	EA
	CT2176-150-2	Lead, 4mm Shth P-RaP - SILIC 0.75, 150cm, Red	$20.00	Active Catalog	1 Year	Banana Plug	Banana Plug	150 cm	Red	1,000 V CAT III / 600 V CAT IV	12 A	18 AWG	EA
	CT2176-200-0	Lead, 4mm Shth P-RaP - SILIC 0.75, 200cm, Black	$23.00	Active Catalog	1 Year	Banana Plug	Banana Plug	200 cm	Black	1,000 V CAT III / 600 V CAT IV	12 A	18 AWG	EA
	CT2176-200-2	Lead, 4mm Shth P-RaP - SILIC 0.75, 200cm, Red	$23.00	Active Catalog	1 Year	Banana Plug	Banana Plug	200 cm	Red	1,000 V CAT III / 600 V CAT IV	12 A	18 AWG	EA

Specifications

Type

Banana Plug

Connector A

Banana Plug

Length

150 cm

Color

Black

Rated Voltage

1,000 V CAT III / 600 V CAT IV

Max Current

12 A

Wire Gauge

18 AWG

Conductor Area

0.75 mm²

Jacket Material

Silicone

OD

3.7 mm (0.146")

Operating Temperature

-20° to +80° C

Export Control Classification Number (ECCN)

EAR99

REACH Compliance

Compliant

RoHS Compliance

RoHS 2 (2015/863/EU) Compliant

Schedule B Number

9030.90.8010

Country of Origin

France

Lead Time

56 days

See More Specifications

Datasheet

Documents

• DatasheetDatasheet
• REACH StatementCompany Document
• RoHS DirectiveCompany Document
• PFAS - Certificate of ComplianceCompany Document
