CT2473-9
CT2473 Series

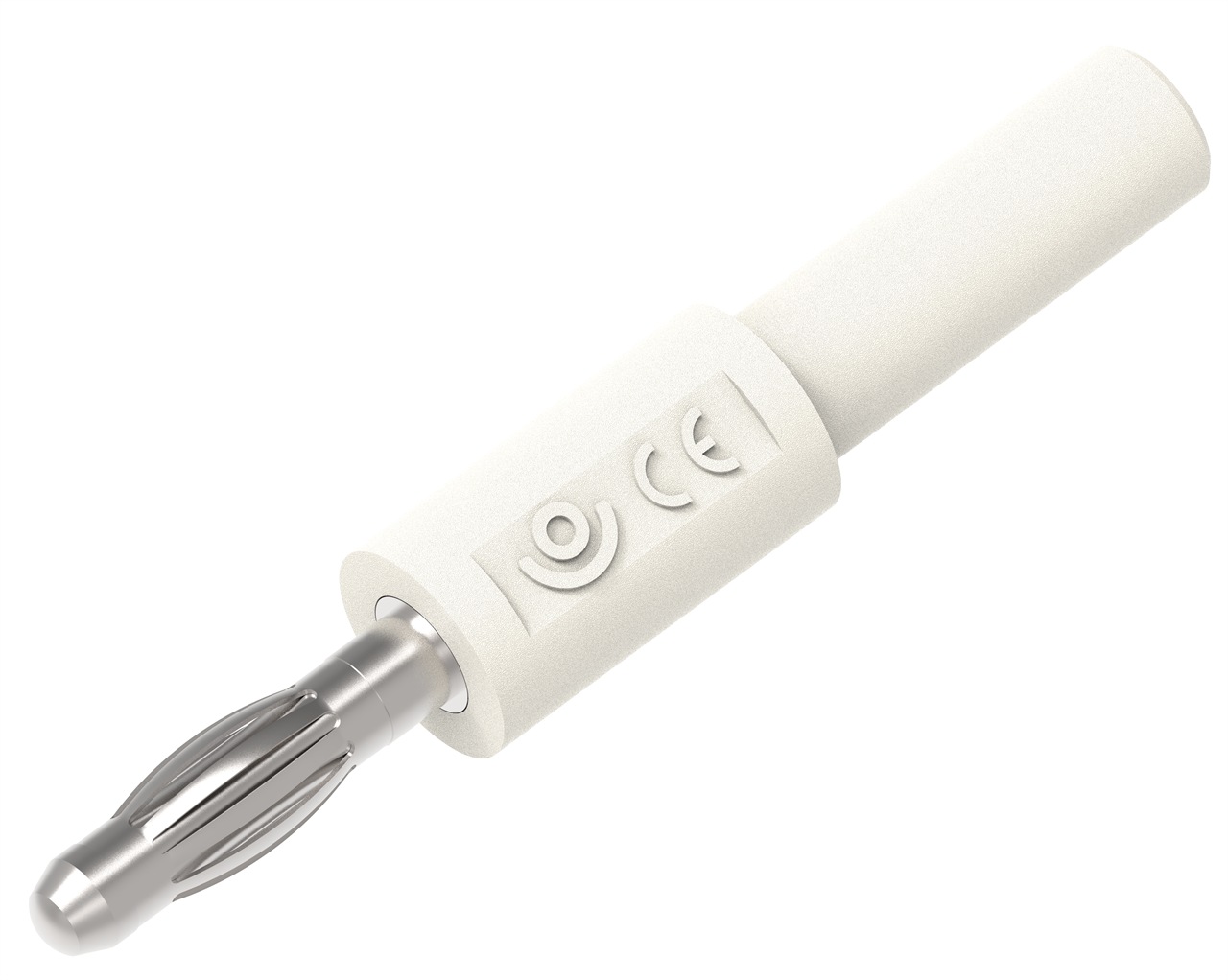

Special Order4mm Sheathed Banana Jack to 4mm Banana Plug Adapter
Adapter, 4mm Banana Plug to Jack - White
$5.301 Year Warranty
Where to Buy
Overview
4mm Sheathed Banana Jack to 4mm Banana Plug adapter. Perfect for use with DMM probes. Accepts 4mm sheathed banana plugs. Use to connect to standard banana jacks.
- Materials: Body: Polyamide (Nylon); Contact: Brass, Nickel Plt.
- Banana Contact: BeCu, Nickel Plt.
- Available in Black and Red pair in Model CT3089.
Models
| Image | Model | Description | MSRP | Status | Warranty | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2473-0 | Adapter, 4mm Banana Plug to Jack - Black | $4.80 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT2473-2 | Adapter, 4mm Banana Plug to Jack - Red | $4.80 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT2473-4 | Adapter, 4mm Banana Plug to Jack - Yellow | $4.80 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Yellow | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT2473-5 | Adapter, 4mm Banana Plug to Jack - Green | $4.80 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Green | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT2473-6 | Adapter, 4mm Banana Plug to Jack - Blue | $4.80 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Blue | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT2473-9 | Adapter, 4mm Banana Plug to Jack - White | $5.30 | Special Order | 1 Year | 30 VAC / 60 VDC | White | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
Specifications
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- White
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 10 A
- Max Voltage
- 1200 V AC/DC
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
