Overview

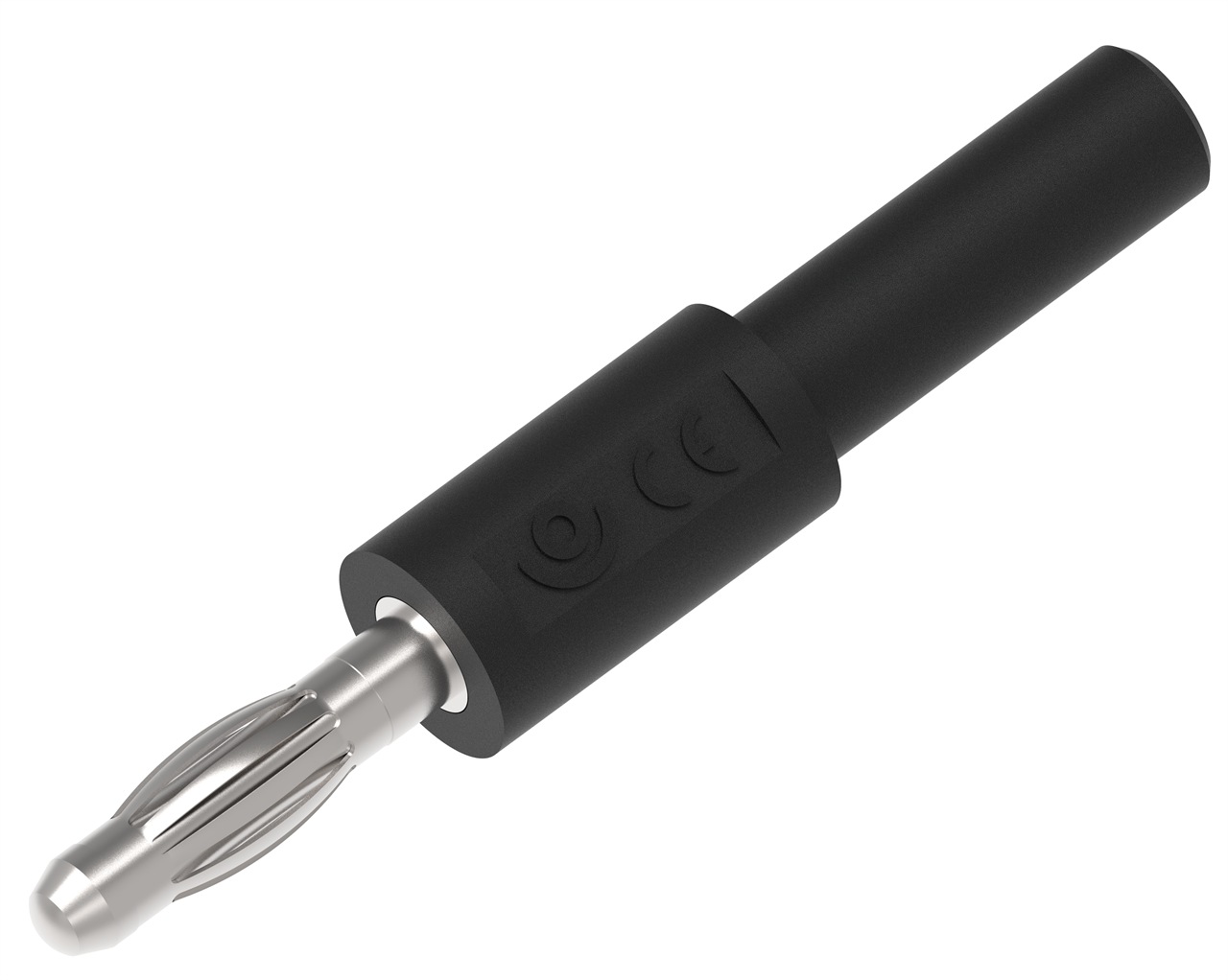

4mm Sheathed Banana Jack to 4mm Banana Plug adapter. Perfect for use with DMM probes. Accepts 4mm sheathed banana plugs. Use to connect to standard banana jacks.
- Materials: Body: Polyamide (Nylon); Contact: Brass, Nickel Plt.
- Banana Contact: BeCu, Nickel Plt.
- Available in Black and Red pair in Model CT3089.
Features
- Accepts 4mm sheathed banana plugs for connection to standard banana jacks
- Designed for use with DMM probes
- Body: Polyamide (Nylon); Contact: Brass, Nickel Plt.
- Banana Contact: BeCu, Nickel Plt.
Models
| Image | Model | Description | MSRP | Status | Warranty | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2473-0 | Adapter, 4mm Banana Plug to Jack - Black | $4.80 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT2473-2 | Adapter, 4mm Banana Plug to Jack - Red | $4.80 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT2473-4 | Adapter, 4mm Banana Plug to Jack - Yellow | $4.80 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Yellow | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT2473-5 | Adapter, 4mm Banana Plug to Jack - Green | $4.80 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Green | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT2473-6 | Adapter, 4mm Banana Plug to Jack - Blue | $4.80 | Active Catalog | 1 Year | 30 VAC / 60 VDC | Blue | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
 |
CT2473-9 | Adapter, 4mm Banana Plug to Jack - White | $5.30 | Special Order | 1 Year | 30 VAC / 60 VDC | White | Brass, Nickel Plated | Polyamide | 10 A | 1200 V AC/DC | EA |
Specifications
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 10 A
- Max Voltage
- 1200 V AC/DC
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
