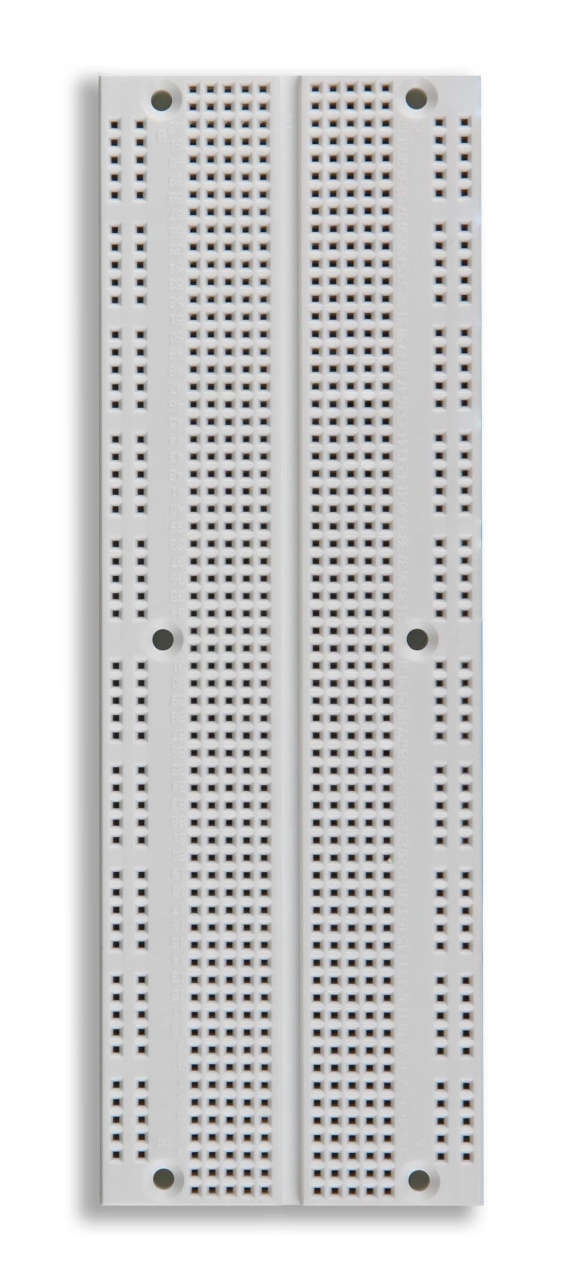

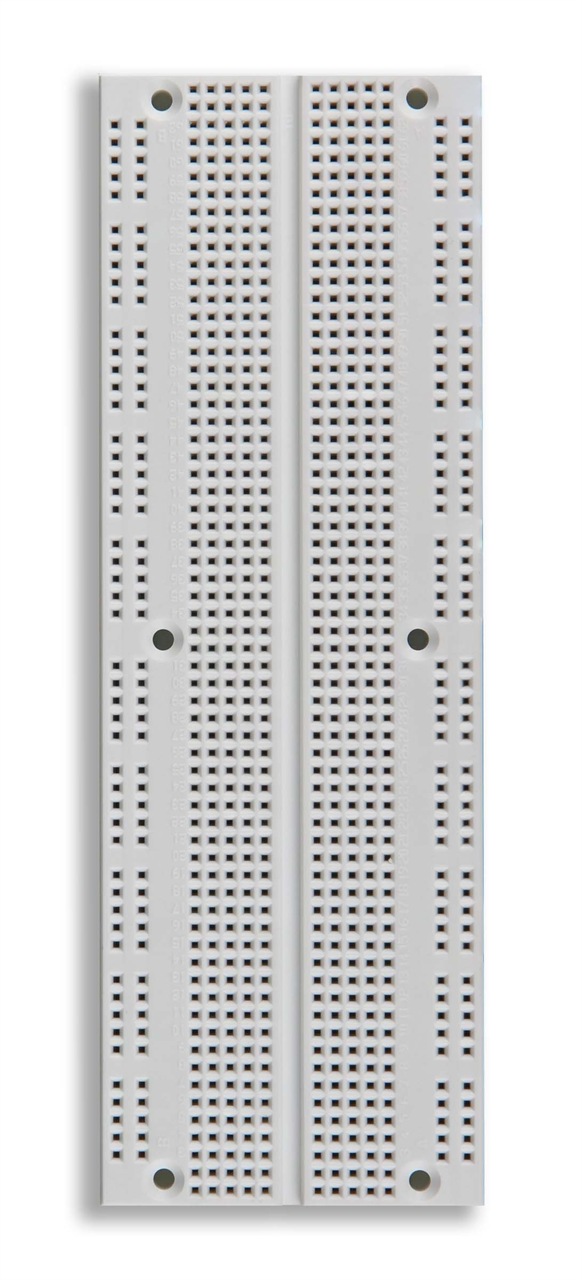

UBS-100
UBS-100 Series
Active CatalogSolderless Breadboard, 840 Tie-Points
Solderless Breadboard, 840 Tie-points (in blister pack)
$10.001 Year Warranty
Overview
The UBS-100 is Global Specialties' largest single solderless breadboard, featuring 840 tie-points and multiple bus strips for flexible circuit design. It is built with a molded-in tie-point numbering system for easy layout reference and utilizes high-impact ABS plastic with nickel-plated phosphor bronze contacts for durable and reliable connections. A heavy-duty Mylar backing prevents short circuits, making it ideal for prototyping in educational and engineering environments.
Features:
- 840 tie-points with multiple bus strips for versatile circuit layout
- Nickel-plated phosphor bronze contacts for optimal conductivity
- Durable ABS plastic construction with Mylar backing for safety
- Molded-in tie-point numbering for easy component placement
Specifications
- Type
- Passive
- Tie Points
- 840
- Length
- 6.5 in
- Width
- 2.125 in
- Depth
- 0.33 in (8 mm)
- Contact Material
- Nickel plated phosphor bronze
- Insulation Material
- ABS
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- China
- Lead Time
- 95 days
- See More Specifications
- Datasheet
