Overview

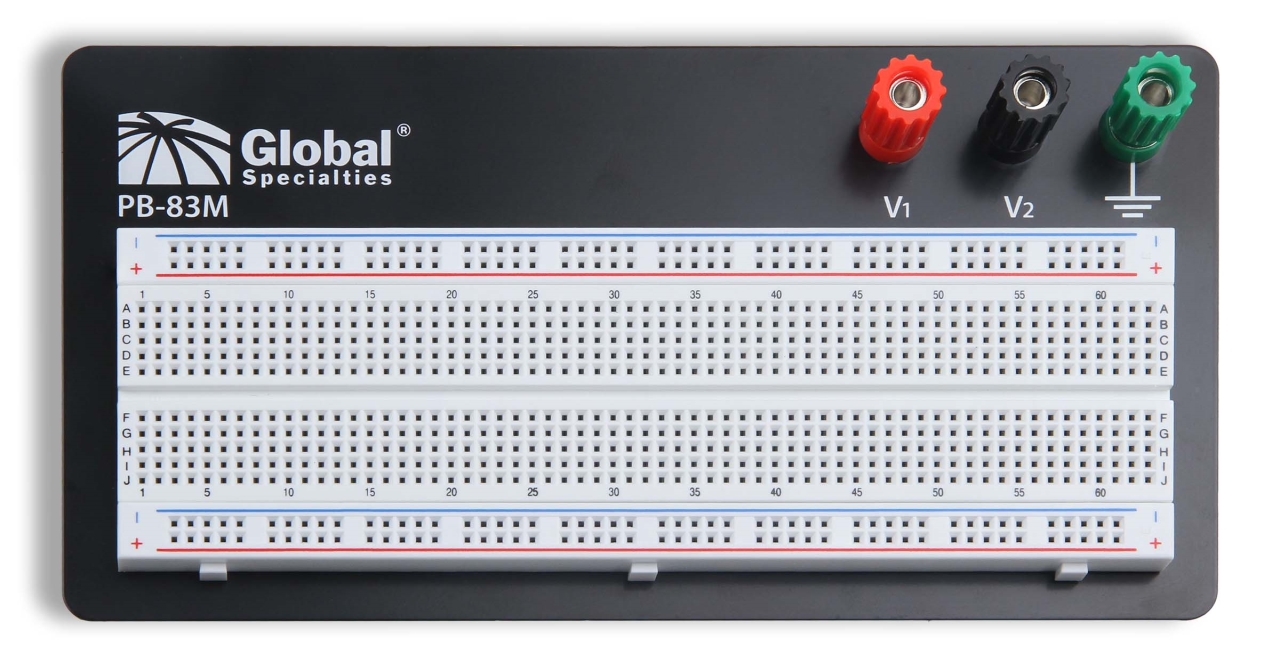

The PB-83M is an externally powered solderless breadboard engineered for prototyping low-frequency or DC-powered circuits. Designed with a durable aluminum base, high-quality spring clip contacts, and a convenient binding post interface, it offers reliable performance for educational labs, hobbyists, and circuit designers.
Features:
- 830 tie-points with square hole style and support for seven 16-pin ICs
- Comes fully assembled with three 19 mm spaced binding posts
- Durable ABS body, aluminum backplate, and nickel-plated phosphor bronze clips
- RoHS 2 compliant and backed by a three-year warranty
Applications:
- Educational laboratories
- Hobbyist electronics projects
- Low-frequency and DC-powered circuit prototyping
Specifications
- Type
- Externally Powered
- Tie Points
- 830
- Length
- 18.3 cm
- Width
- 9.5 cm
- Depth
- 2.7 cm
- Contact Material
- Nickel plated phosphor bronze
- Insulation Material
- ABS
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- China
- Lead Time
- 95 days
- See More Specifications
- Datasheet
