Overview

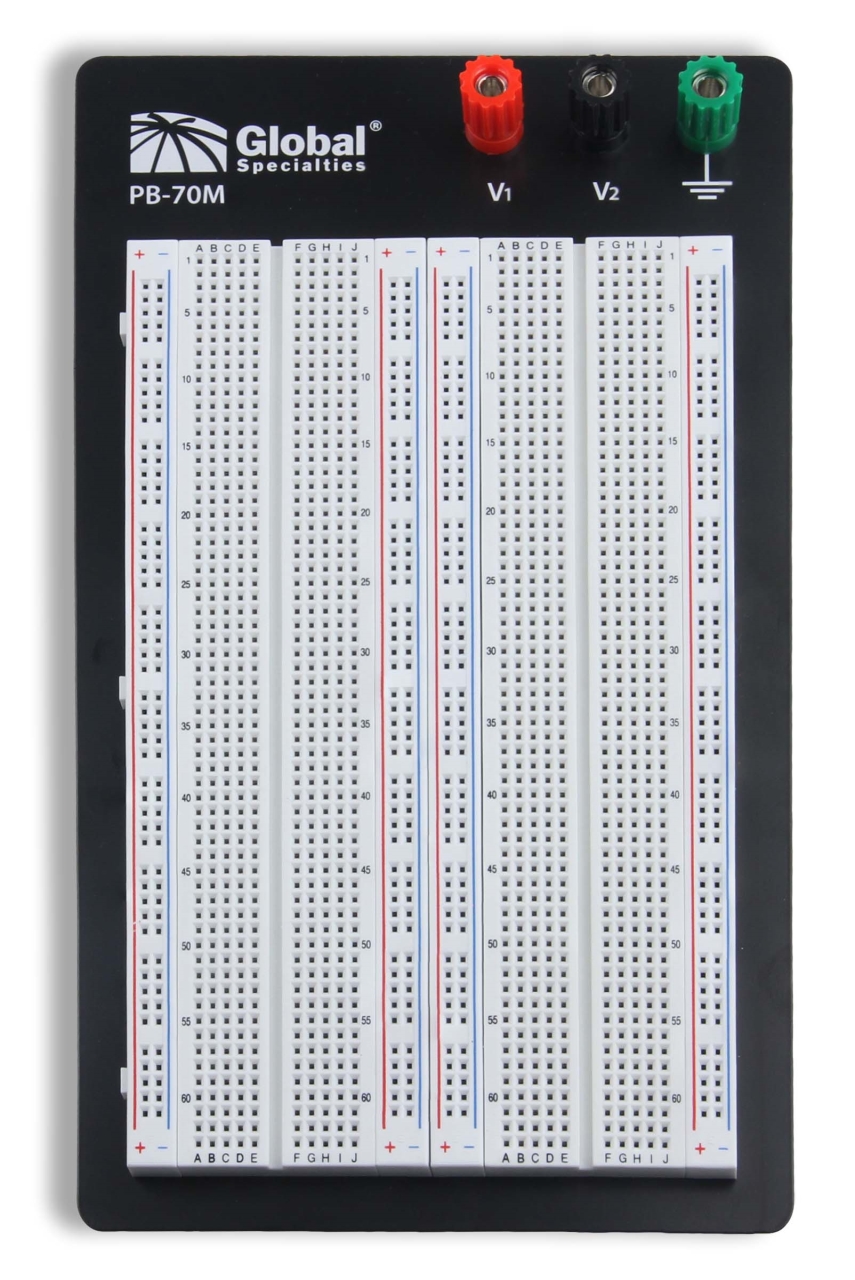

The PB-70M is a robust and compact externally powered solderless breadboard ideal for DC and low-frequency circuit development. Designed for educational and hobbyist use, it features durable materials and a generous layout for medium-complexity prototyping.
Features:
- 1660 tie-points with support for 14 16-pin ICs
- Three 19 mm spaced binding posts for flexible external power connectivity
- Nickel plated phosphor bronze contacts within an ABS plastic enclosure
- Includes rubber feet and aluminum backplate; ships fully assembled
Applications:
- Educational laboratories
- Hobbyist circuit prototyping
- DC and low-frequency electronic designs
Specifications
- Type
- Externally Powered
- Tie Points
- 1660
- Length
- 21.5 cm
- Width
- 13 cm
- Depth
- 2.7 cm
- Contact Material
- Nickel plated phosphor bronze
- Insulation Material
- ABS
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- China
- Lead Time
- 95 days
- See More Specifications
- Datasheet
