Overview
Power Electronics is the study of controlling and converting electrical energy. This is achieved primarily through the use of semiconductor devices. Power Electronics circuits play a key role in the design process of today’s more advanced technologies, such as electric vehicles and aircraft making it crucial that future Engineers and Technicians understand these electrical circuits and their applications.

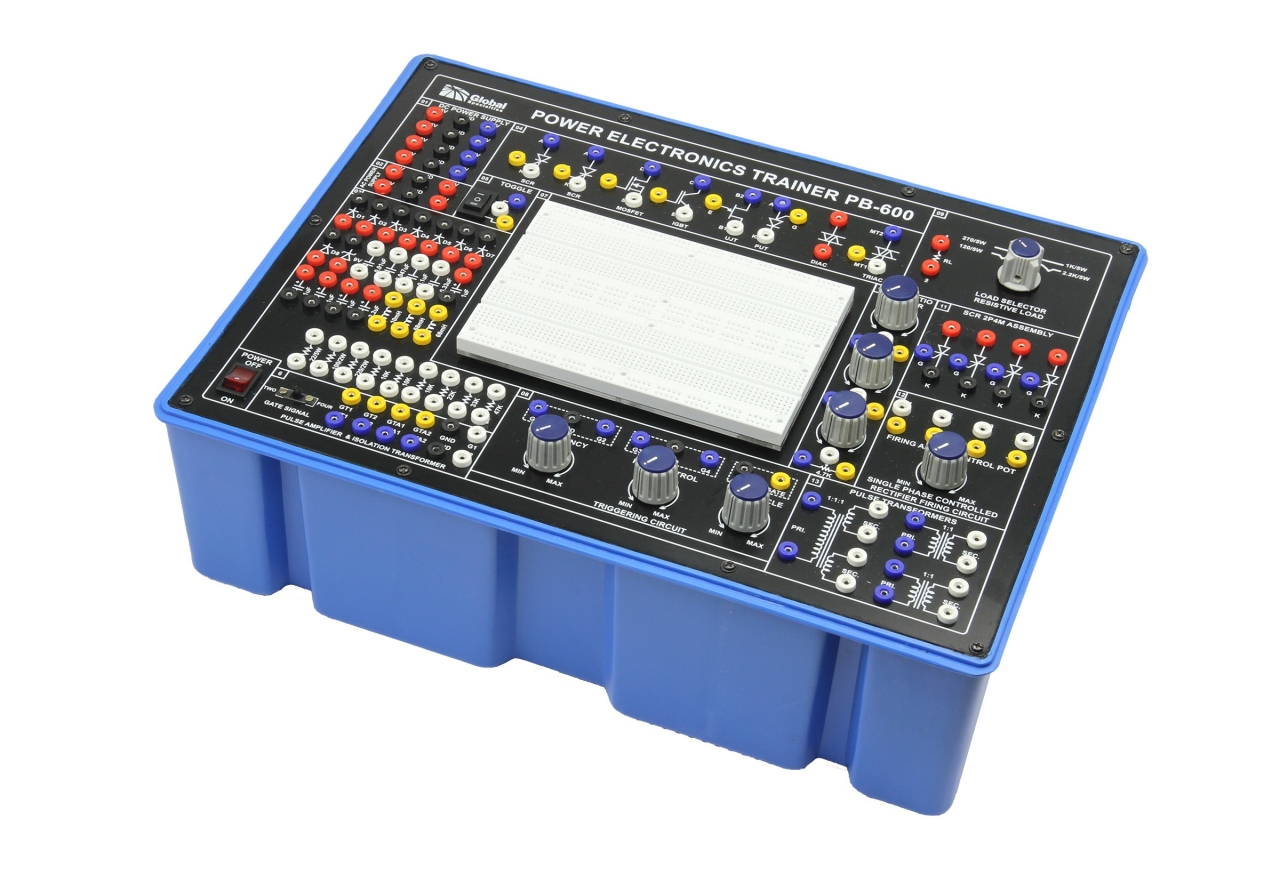

Designed with educators and students in mind, the PB-600 is ideal for colleges, universities, and technical schools. The unit has a removable breadboard making it ideal for multiple-student usage.
PB-600 Features:
- AC and DC Power
- On board semi-conductors: SCRs, MOSFETs, IGBTs, TRIACS and others
- Firing angle control
- Pulse transformers
- Pulse width modulation (PWM)
- On board circuit components such as: diodes, resistors, capacitors, and inductors
Kit Contents
- (1) CT and GS General Download Instructions Insert Card - 451-058-001
- (1) Power Cord, NEMA 5-15P,18AWG,10A,125V,6ft,UL, black - 451-062-000
- (2) Box Label, PB-600, 8.5x5.5" - 451-085-001
- (1) Power Electronics Trainer (PB-600 Unit only) - 451-086-001
- (2) IC Gate Driver Low-Side 8DIP - 451-106-000
- (2) Bipolar Transistor PNP 40V 0.6A 200MHz 625mW T0-92 - 451-107-000
- (1) Socket Plate, 1680 Tie Pts, for use with PB-600 - PB-2
- (1) Jumper Wire Kit, 70 pcs. - WK-3
Specifications
- Type
- Desktop Trainer
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- India
- Lead Time
- 98 days
- See More Specifications
- Lab Manual
