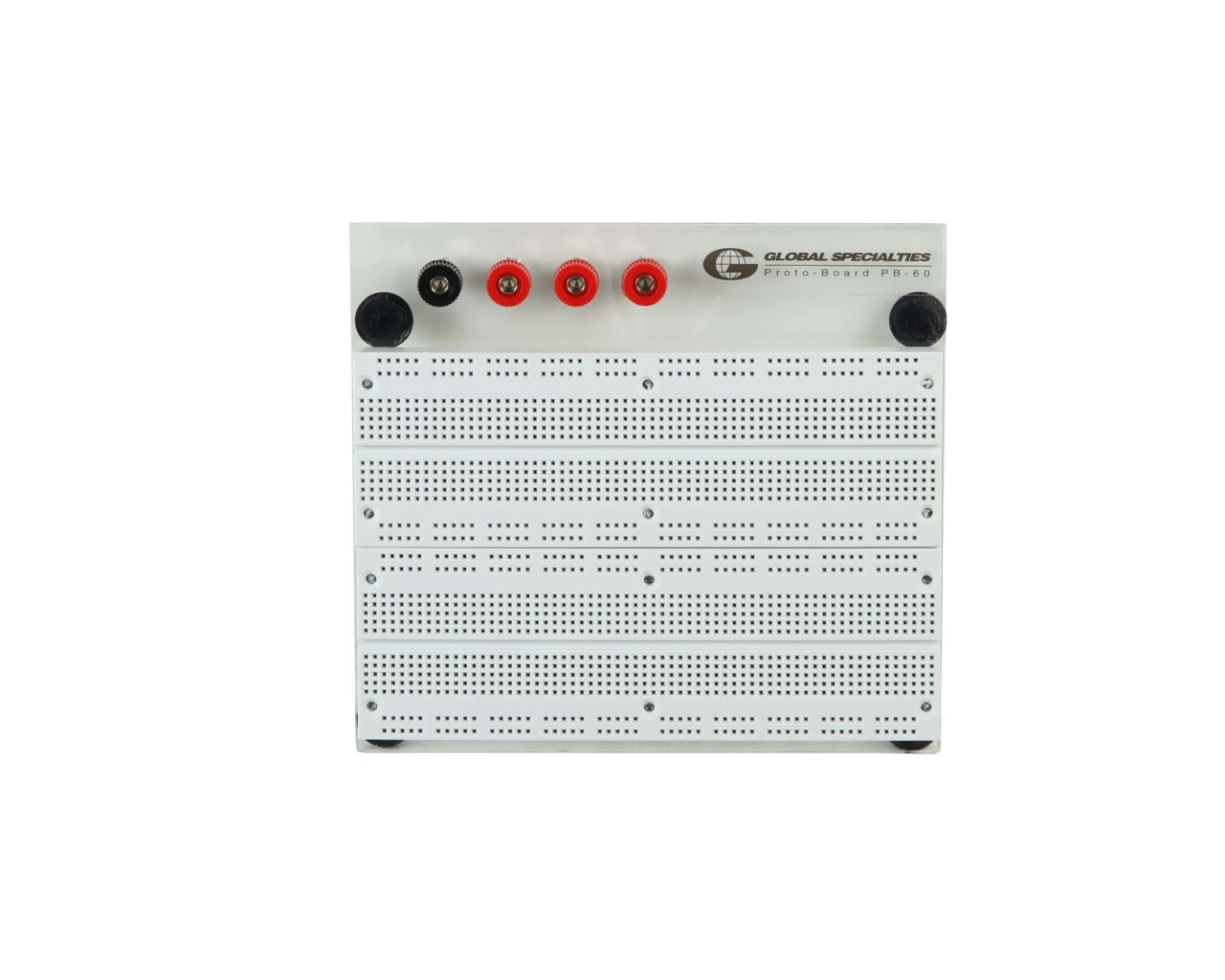

PB-60
PB-60 Series
Active CatalogExternally Powered 1680 Tie-Point Breadboard
Solderless Breadboard, 1680 Tie-points, w Trnsparnt bckplate
$33.001 Year Warranty
Overview
The PB-60 is a versatile, externally powered solderless breadboard designed for complex circuit prototyping. With 1680 tie-points and a robust design that includes four binding posts and a transparent Plexiglass base, it supports a wide range of educational and engineering applications. The durable construction and ample capacity make it ideal for experimenting with multiple integrated circuits and components.
Features:
- Externally powered breadboard with 1680 tie-points for large-scale prototyping
- Four binding posts compatible with banana plugs, pin jacks, spade lugs, and alligator clips
- Constructed from ABS with a clear Plexiglass backplate
- Rubber feet for stability during use
Kit Contents
- (2) Solderless Breadboard, 840 Tie-points(without paper backing) - 16-01-0575
- (1) PB-60 PRODUCT LABEL - 77-01-0658
- (4) BINDING POST BODY - 81-01-0046
- (1) PB-60 PLEXIGLASS PLATE (DRILLED) - 81-01-1005
- (12) #6-32 X 5/16'' TYPE ''F'' FLATHEAD PL - 84-01-0007
- (4) #8 EXTERNAL TOOTH LOCK WASHER - 85-02-1108
- (4) 8-32 HEX NUT - 86-02-0008
- (4) RUBBER FOOT-BUMPON FASTEX #5015-01-00-5002 - 92-01-0017
- (1) BINDING POST CAP - BLACK - 94-02-0006
- (3) BINDING POST CAP - RED - 94-02-0007
Specifications
- Type
- Externally Powered
- Tie Points
- 1680
- Length
- 16.7 cm
- Width
- 15.4 cm
- Depth
- 2.5 cm
- Contact Material
- Nickel plated phosphor bronze
- Insulation Material
- ABS
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- USA
- Lead Time
- 84 days
- See More Specifications
- Datasheet
