Overview

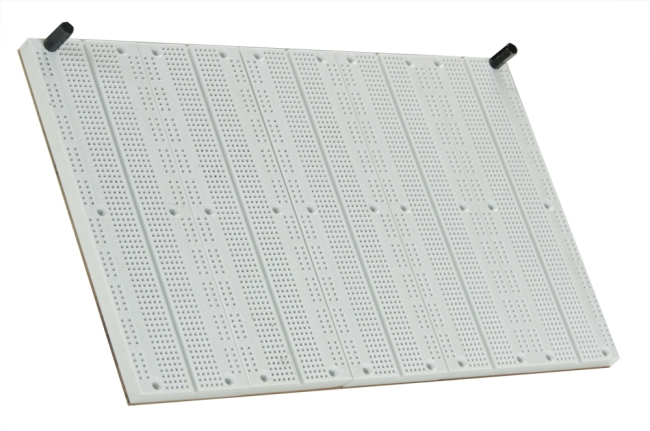

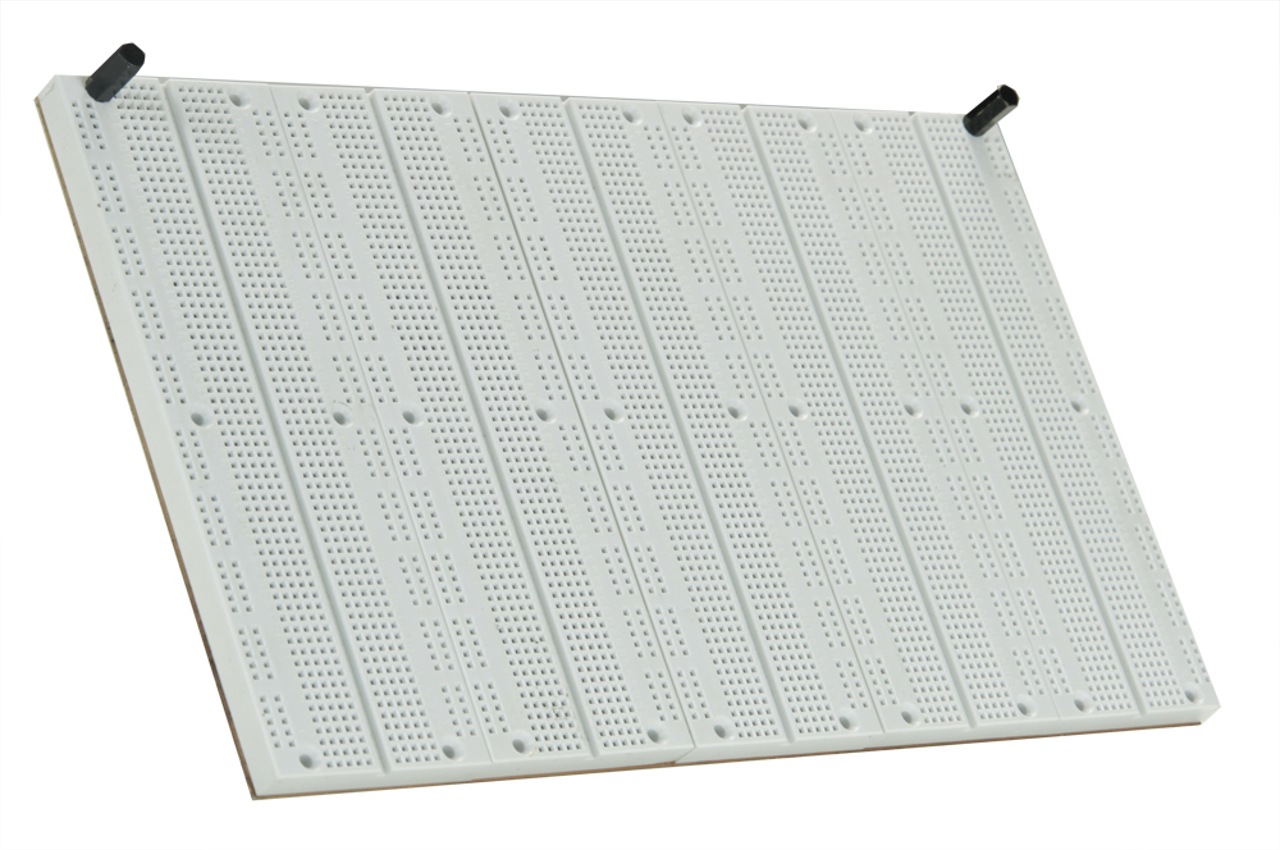

The PB-5 is a removable replacement breadboard plate for the PB-507 Advanced Analog & Digital Electronic Design Trainer. Ideal for lab environments, it allows multiple students to share a single PB-507 unit by easily swapping out breadboard plates. No tools are required—the PB-5 lifts on and off via integrated stems for quick and convenient replacement.
Features:
- Replacement breadboard plate designed for PB-507 trainers
- No tools necessary—quick removal and installation with attached stems
- Supports multiple-student lab use with easy swap capability
- Includes four UBS-100 breadboards totaling 4150 tie points
Specifications
- Type
- Replacement Part
- Compatible Products
- PB-507
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- Taiwan
- Lead Time
- 98 days
- See More Specifications
- Datasheet
