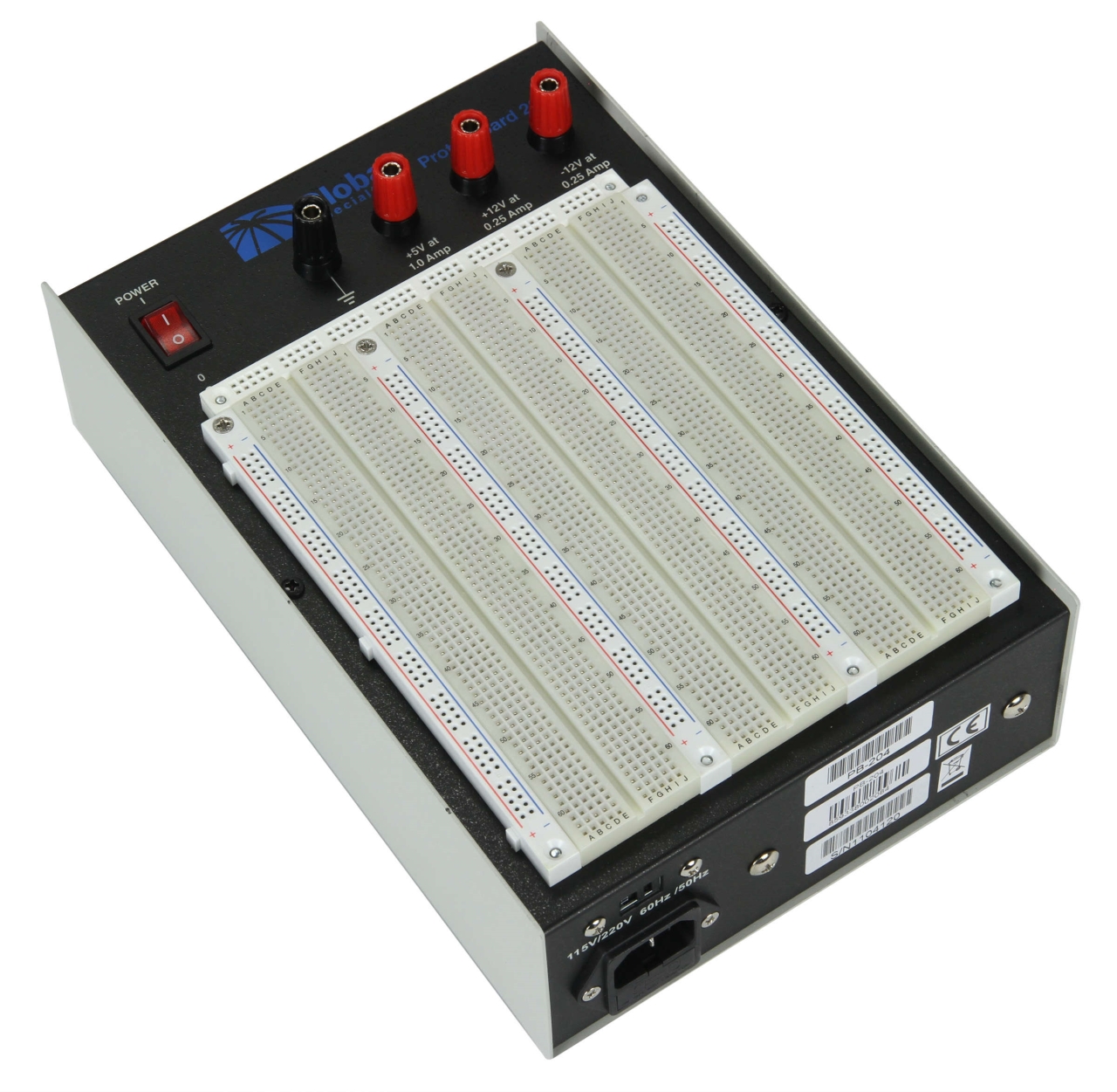

PB-204

The PB-204 is a heavy-duty powered breadboard that integrates a triple-output regulated power supply with a high-capacity solderless breadboarding surface. It supports a wide range of analog, digital, and logic circuits, making it an ideal choice for advanced prototyping, educational labs, and engineering training environments. With its rugged aluminum housing and included premium Global Specialties breadboards, the PB-204 delivers dependable performance and long-term reliability.

Features:

• Triple-output regulated power supply: +5V @ 1A, ±12V @ 0.5A
• Three GS-830 solderless breadboards and one GS-080 bus strip included
• Accommodates up to twenty-four 14-pin DIP ICs
• Rugged aluminum enclosure with rubber feet for stable operation

Applications:

• Opto-device circuits
• Multivibrators, oscillators, clocks, and timers
• Logic circuits: gates, counters, flip-flops
• Analog-to-digital and digital-to-analog converters
• Phase lock loops and operational amplifier circuits
• TTL, CMOS, ECL, and microprocessor development
