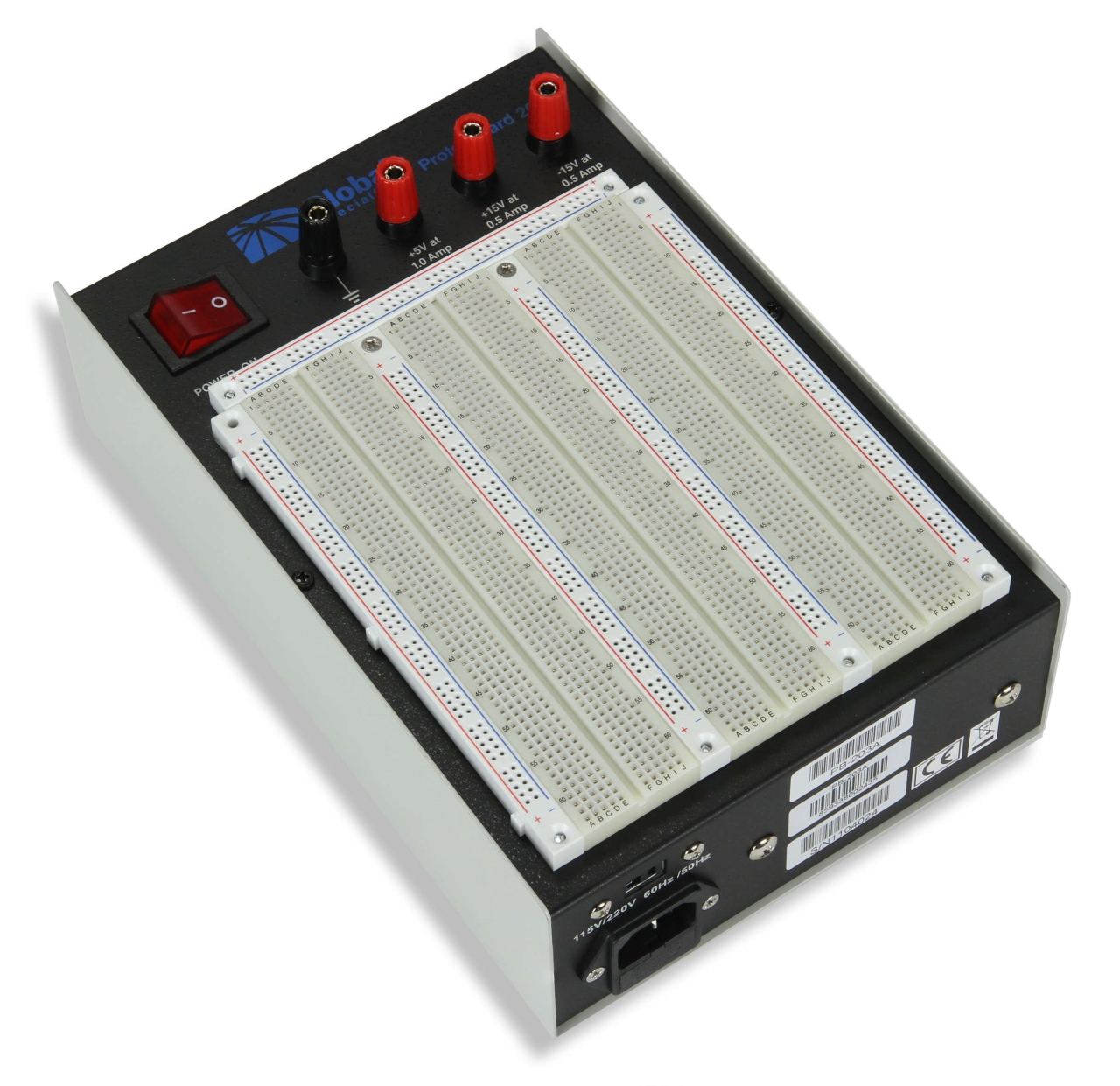

PB-203A

The PB-203A is a rugged, externally powered prototyping system that integrates a triple-output DC power supply with a high-density breadboarding surface. It is ideal for constructing a wide range of analog, digital, and microcomputer circuits without the need for separate power equipment. Designed for educational labs, industry, and advanced prototyping, the PB-203A offers a compact, all-in-one platform backed by Global Specialties' 3-year warranty.

Features:

• Integrated triple-output DC power supply: +5V @ 1A, +15V/-15V @ 0.5A
• Equipped with three GS-830 solderless breadboards and one GS-080 bus strip
• Accommodates up to twenty-four 14-pin DIP ICs
• Durable aluminum housing with rubber feet and four binding posts

Applications:

• Opto-device circuits
• Oscillators, clocks, multivibrators, and timers
• Logic circuits: gates, counters, and flip-flops
• Analog/digital conversion and operational amplifier circuits
• Function generators, video amps, and phase lock loops
• TTL, CMOS, ECL, and microprocessor component testing
