Overview

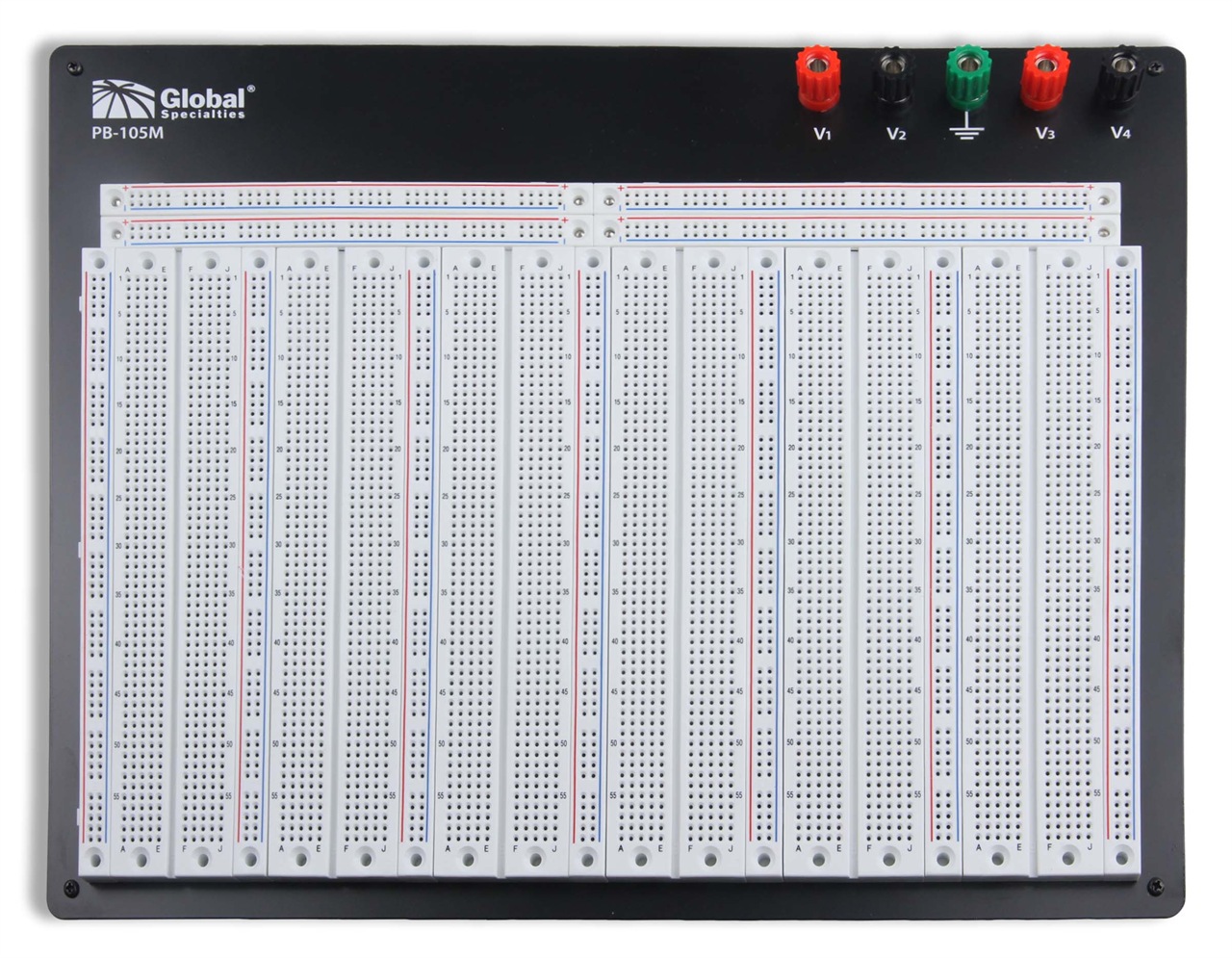

The PB-105M is Global Specialties' highest-capacity externally powered solderless breadboard, featuring 4560 tie-points and five binding posts for advanced prototyping applications. Designed for robust performance in educational, hobbyist, and lab environments, it combines a spacious layout with durable construction and high-current capacity for demanding circuit designs.
Features:
- 4560 tie-points supporting up to 42 16-pin ICs
- Five 19 mm spaced binding posts for flexible external power integration
- ABS body with square-hole layout and aluminum backplate for structural integrity
- Fully assembled with rubber feet and RoHS 2 compliant
Applications:
- Educational laboratories
- Hobbyist and DIY electronics
- Large-scale DC and low-frequency circuit prototyping
Specifications
- Type
- Externally Powered
- Tie Points
- 4560
- Length
- 30.5 cm
- Width
- 24 cm
- Depth
- 2.7 cm
- Contact Material
- Nickel plated phosphor bronze
- Insulation Material
- ABS
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- China
- Lead Time
- 95 days
- See More Specifications
- Datasheet
