Overview

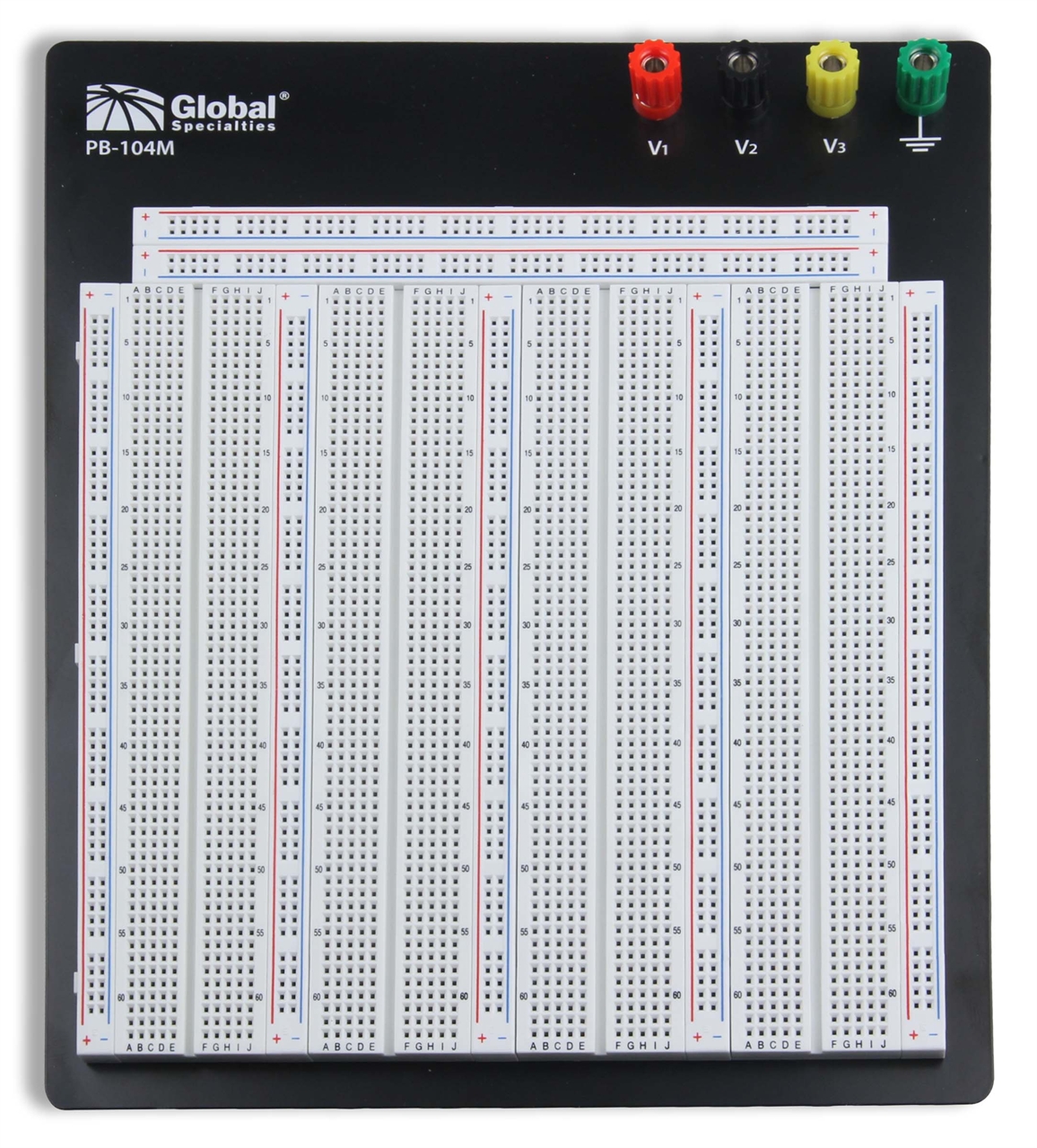

The PB-104M is an expansive, externally powered solderless breadboard ideal for large-scale circuit development. With 3220 tie-points and 28 IC insertion slots, this unit is built for robust prototyping in educational, laboratory, and hobbyist settings. It features high-quality materials and a compact, durable assembly ready for immediate use.
Features:
- 3220 tie-points and support for up to 28 16-pin ICs
- Four 19 mm spaced binding posts for external power connections
- Durable ABS body with square hole layout and aluminum backplate
- Comes fully assembled with rubber feet for stable desktop use
Applications:
- Educational laboratories
- Hobbyist circuit projects
- DC and low-frequency electronic prototyping
Specifications
- Type
- Externally Powered
- Tie Points
- 3220
- Length
- 24 cm
- Width
- 21 cm
- Depth
- 2.7 cm
- Contact Material
- Nickel plated phosphor bronze
- Insulation Material
- ABS
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- China
- Lead Time
- 95 days
- See More Specifications
- Datasheet
