Overview

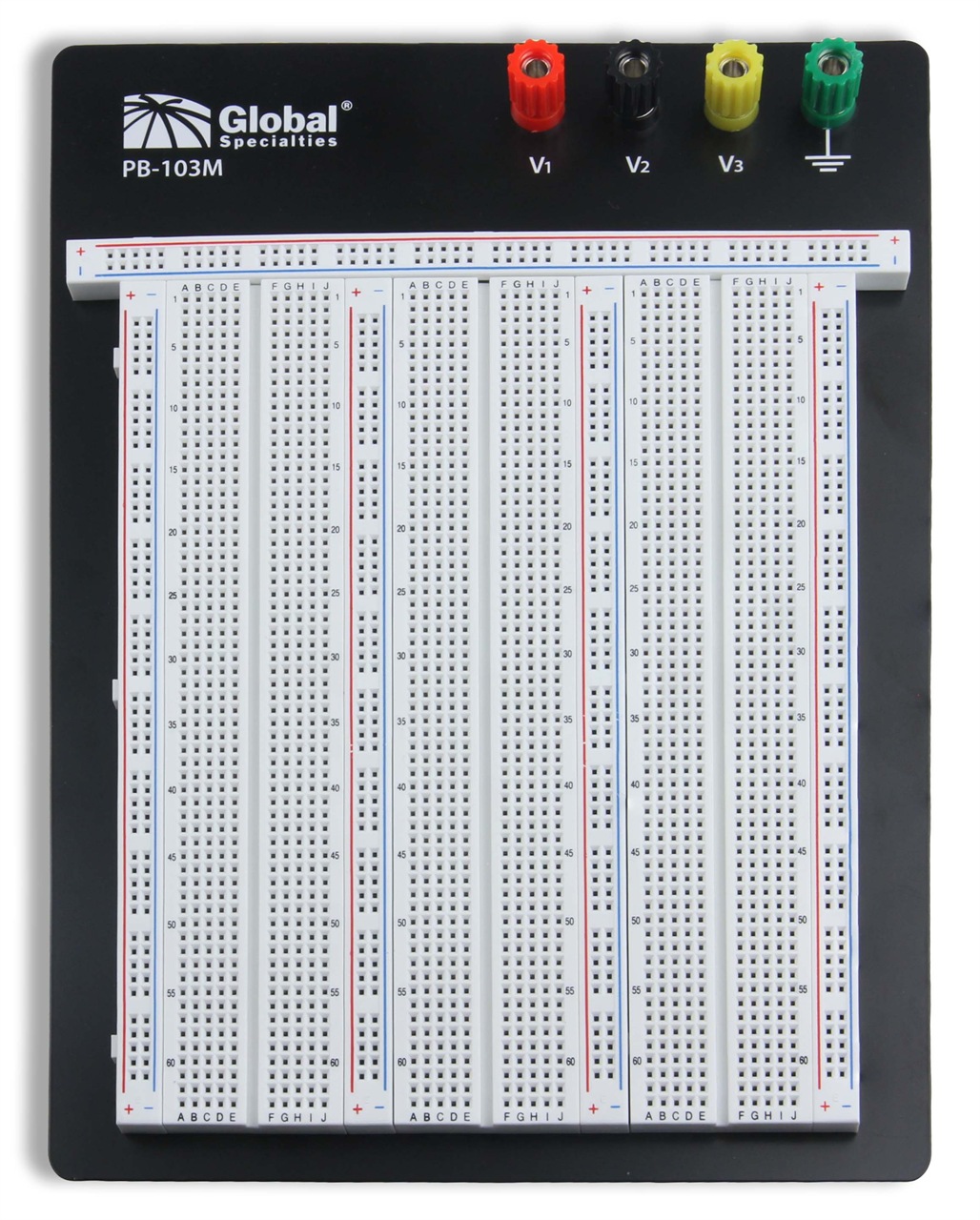

The PB-103M is a mid-size externally powered solderless breadboard from Global Specialties, designed for reliable circuit prototyping in educational and hobbyist settings. Featuring 2390 tie-points and durable construction, it is ideal for creating complex analog and digital circuits with ease.
Features:
- 2390 tie-points supporting up to 21 16-pin ICs
- Four 19 mm spaced binding posts for external power connectivity
- Nickel plated phosphor bronze contacts in an ABS plastic body
- Includes rubber feet and aluminum backplate; fully assembled
Applications:
- Educational laboratories
- Hobbyist circuit development
- DC and low-frequency electronics prototyping
Specifications
- Type
- Externally Powered
- Tie Points
- 2390
- Length
- 23 cm
- Width
- 17.5 cm
- Depth
- 2.7 cm
- Contact Material
- Nickel plated phosphor bronze
- Insulation Material
- ABS
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- China
- Lead Time
- 95 days
- See More Specifications
- Datasheet
