Overview

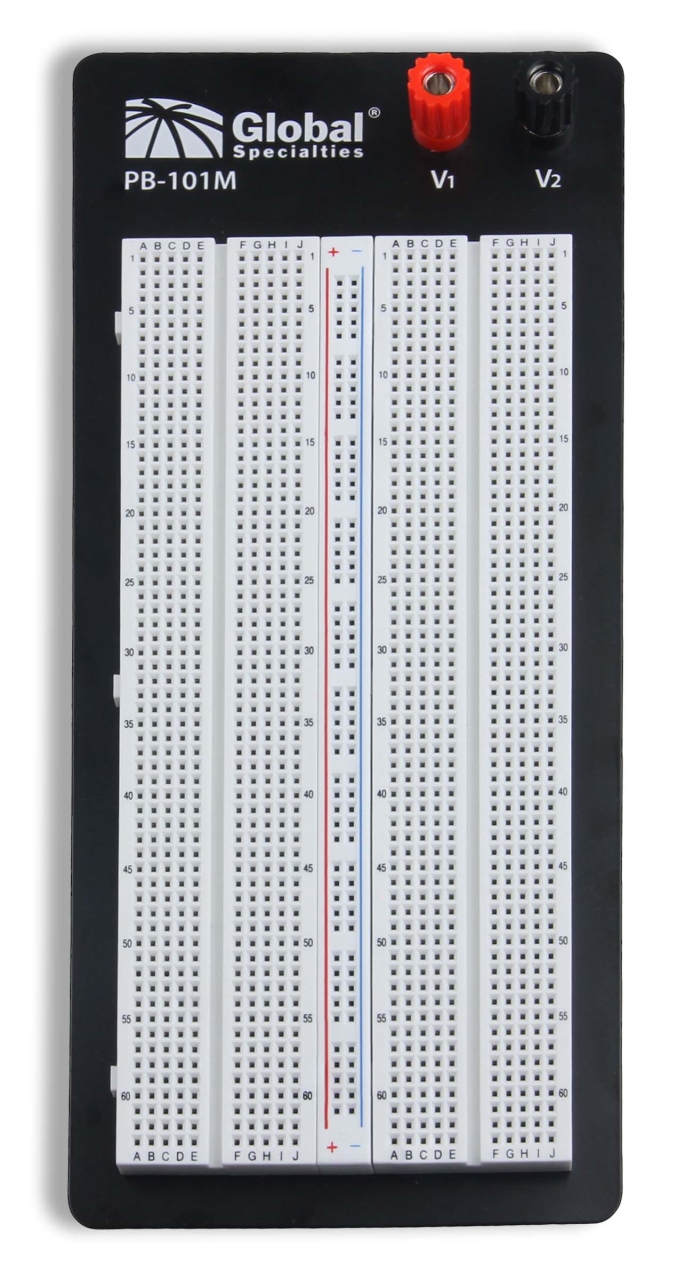

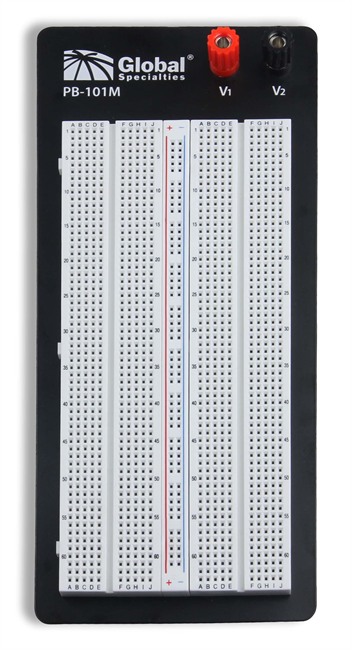

The PB-101M is an externally powered solderless breadboard built for efficient prototyping of DC-powered or low-frequency circuits. Its transparent ABS construction, square-hole layout, and high-performance components make it ideal for both instructional labs and hands-on electronics development. With RoHS 2 compliance and robust structural materials, this model offers reliable connectivity and durability.
Features:
- 1360 tie-points with square-hole style for firm component fit
- Two 19 mm spaced binding posts for external power integration
- Transparent ABS body and aluminum backplate for visibility and durability
- Fully assembled with rubber feet and RoHS 2 compliance
Applications:
- Educational laboratories
- Hobbyist electronics projects
- Low-frequency and DC-powered circuit development
Specifications
- Type
- Externally Powered
- Tie Points
- 1360
- Length
- 21.5 cm
- Width
- 10 cm
- Depth
- 2.7 cm
- Contact Material
- Nickel plated phosphor bronze
- Insulation Material
- ABS
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- China
- Lead Time
- 95 days
- See More Specifications
- Datasheet
