PB-10
PB-10 Series
Active CatalogExternally Powered 840 Tie-Point Breadboard
Ext Powered Breadboard, 840 Tie-points, w plastic backplate
$46.001 Year Warranty
Overview

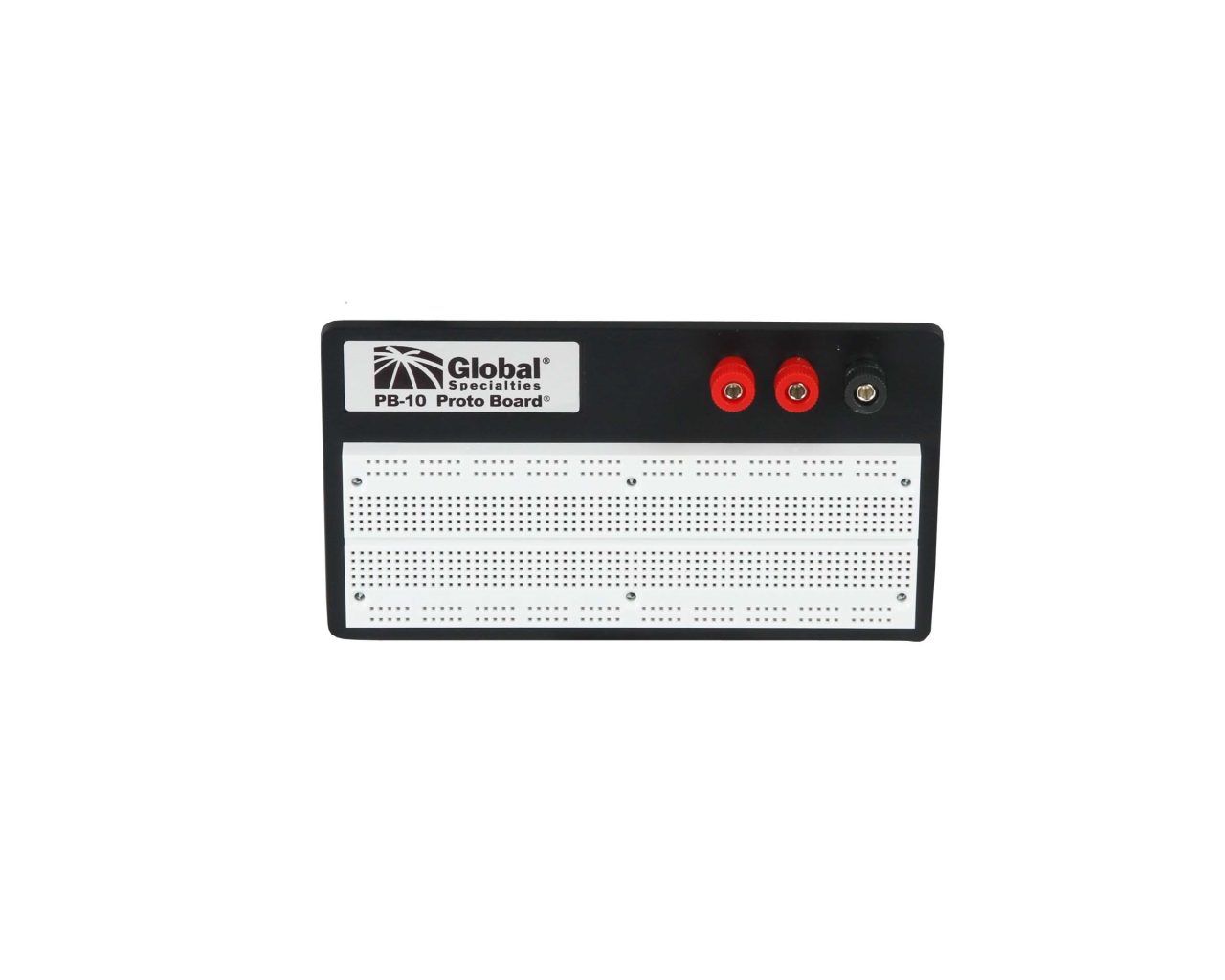

The PB-10 is a robust, externally powered solderless breadboard offering 840 tie-points, designed for reliable circuit prototyping in educational, lab, or professional settings. Built with a high-impact plastic backplate and equipped with three binding posts, it provides versatile connectivity and stability. The nickel-plated phosphor bronze spring clips ensure secure component insertion, while rubber feet add grip and elevation to the unit.
Features:
- Externally powered design with 3 binding posts for flexible voltage input
- 840 tie-points and support for up to 8 standard 16-pin ICs
- Constructed with high-impact ABS and durable spring clips
- Rubber feet for stability and elevated workspace
Kit Contents
- (1) Solderless Breadboard, 840 Tie-points(without paper backing) - 16-01-0575
- (1) PB-10 LABEL GLOBAL - 77-01-0190
- (3) BINDING POST BODY - 81-01-0046
- (6) #6 3/8 Steel Sheet Metal Screw with Pan Head, Zinc-Plated - 84-01-6516
- (3) #8 EXTERNAL TOOTH LOCK WASHER - 85-02-1108
- (3) 8-32 HEX NUT - 86-02-0008
- (4) RUBBER FOOT-BUMPON FASTEX #5015-01-00-5002 - 92-01-0017
- (1) BINDING POST CAP - BLACK - 94-02-0006
- (2) BINDING POST CAP - RED - 94-02-0007
- (1) PB-10 PROTO-BOARD PLASTIC PLATE - 94-03-0091
Specifications
- Type
- Externally Powered
- Tie Points
- 840
- Length
- 17.5 cm
- Width
- 2.5 cm
- Depth
- 2.5 cm
- Contact Material
- Nickel plated phosphor bronze
- Insulation Material
- ABS
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- China
- Lead Time
- 84 days
- See More Specifications
- Datasheet
