Overview

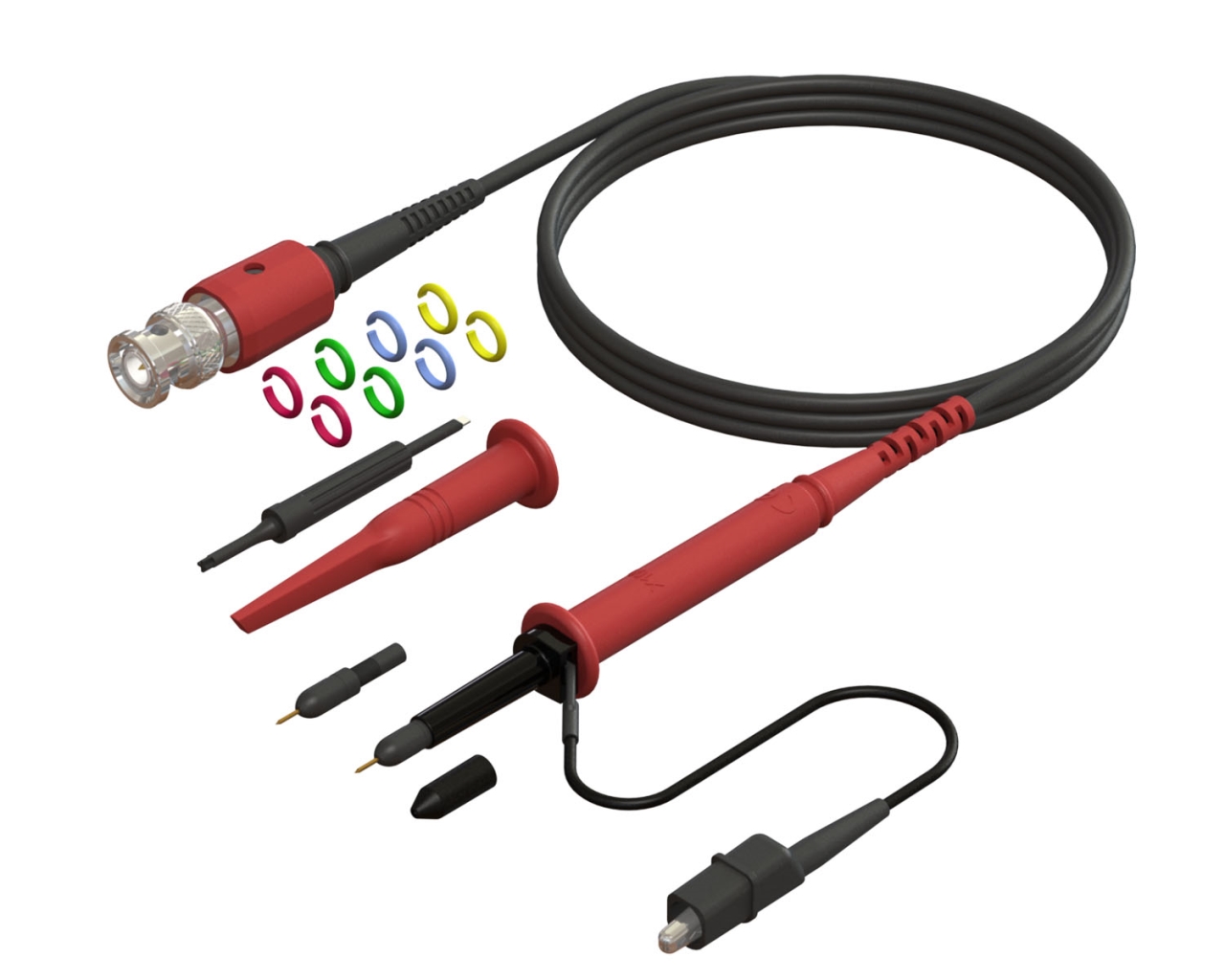

Model GE3121 is a high bandwidth, high voltage 100x passive voltage probe with a 100 MΩ input impedance.
- 150 MHz (-3 dB) bandwidth
- High impedance input (100 MΩ/≈5 pF)
- 2,000 V CAT II
- Voltage Coefficient (VCR) ≤30 ppm/V
Features & Benefits:
- Slim, stylish body
- Snap-Locking Sprung Hook
- Easily replaceable tip
- Large accessory set
- Meets IEC 61010-031
- RoHS 2 compliant
The GE Series is a high quality, easy to use family of 5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes.
The series is marketed under the time-honored Elditest brand name in both North America and the European Union.
Specifications
- Type
- GE
- Attenuation
- 100x
- Bandwidth
- 150 MHz
- Rated Voltage
- 2000 V CAT II
- Cable Length
- 1.2 m
- Impedance
- 100 MΩ / 5 pF
- Input Capacitance
- 5 pF
- Rise Time
- 2.3 ns
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 70 days
- See More Specifications
- Manual
Documents
- ManualManual
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
