Overview

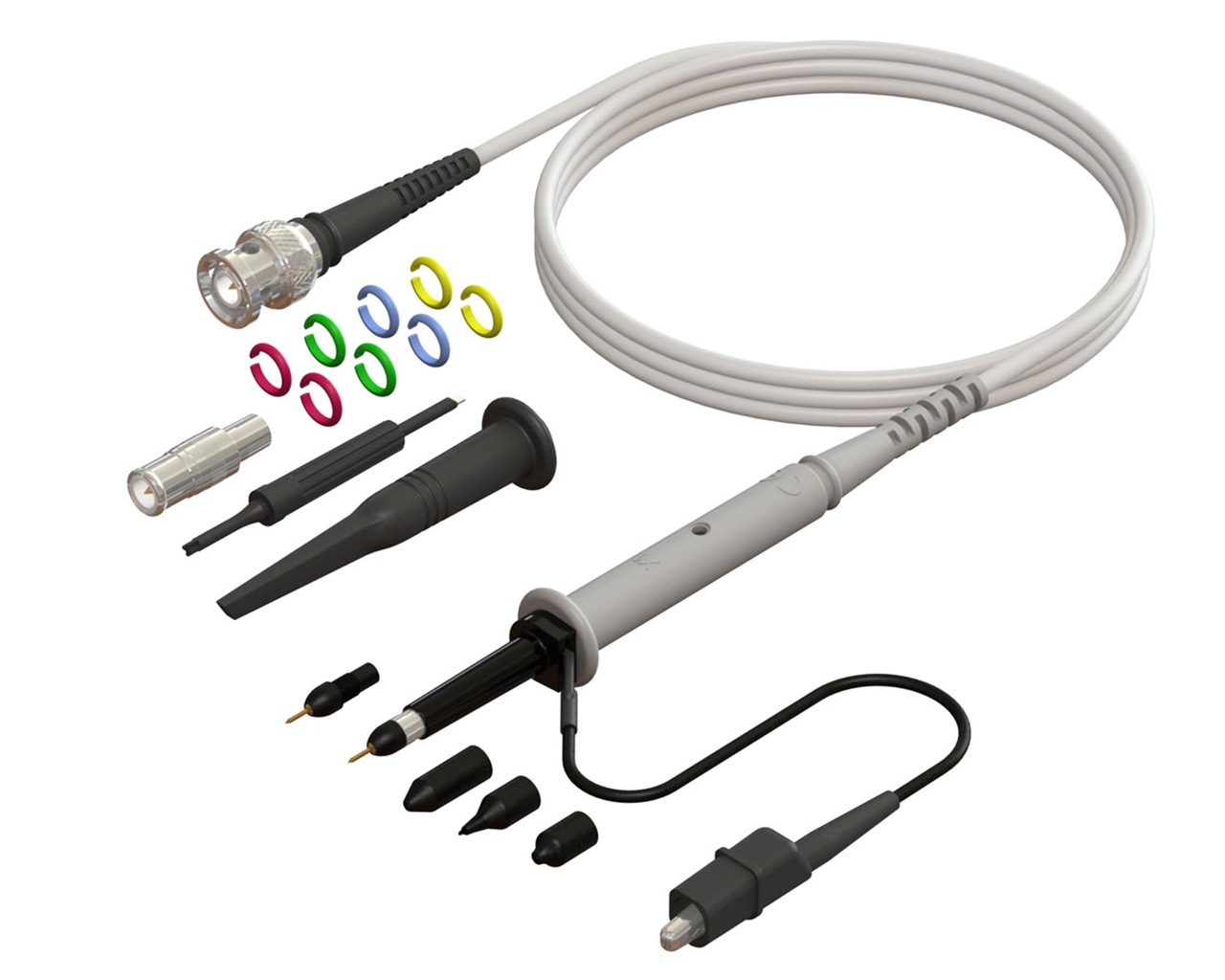

Model GE2501 is a high bandwidth 1x passive voltage probe with 1 MΩ input impedance.
- 55 MHz (-3 dB) bandwidth
- 1 MΩ/≈45 pF - oscilloscope input resistance
- 55 V CAT II
- 1.2 m cable length
Features & Benefits:
- Slim, stylish body
- Snap-Locking Sprung Hook
- Easily replaceable tip
- Large accessory set
- Meets IEC 61010-031
- RoHS 2 compliant
The GE Series is a high quality, easy to use family of 5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes.
The series is marketed under the time-honored Elditest brand name in both North America and the European Union.
Specifications
- Type
- GE
- Attenuation
- 1x
- Bandwidth
- 55 MHz
- Rated Voltage
- 55 V CAT II
- Cable Length
- 1.2 m
- Impedance
- 1 MΩ / 45 pF
- Input Capacitance
- 5 pF
- Readout Actuator
- No
- Rise Time
- 6.4 ns
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 84 days
