Overview

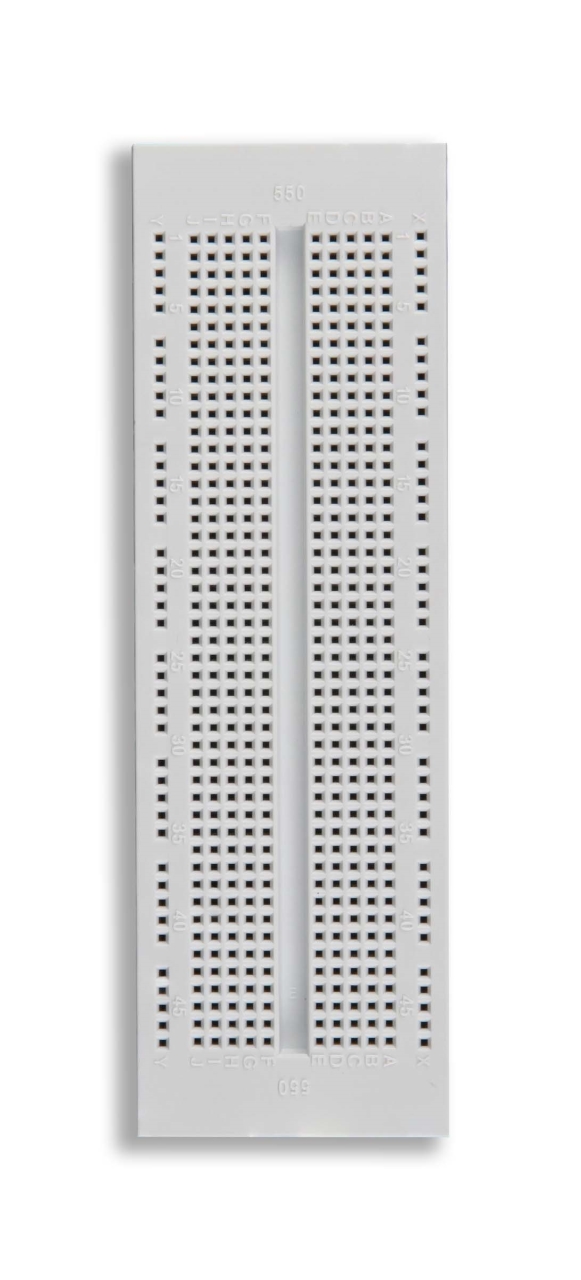

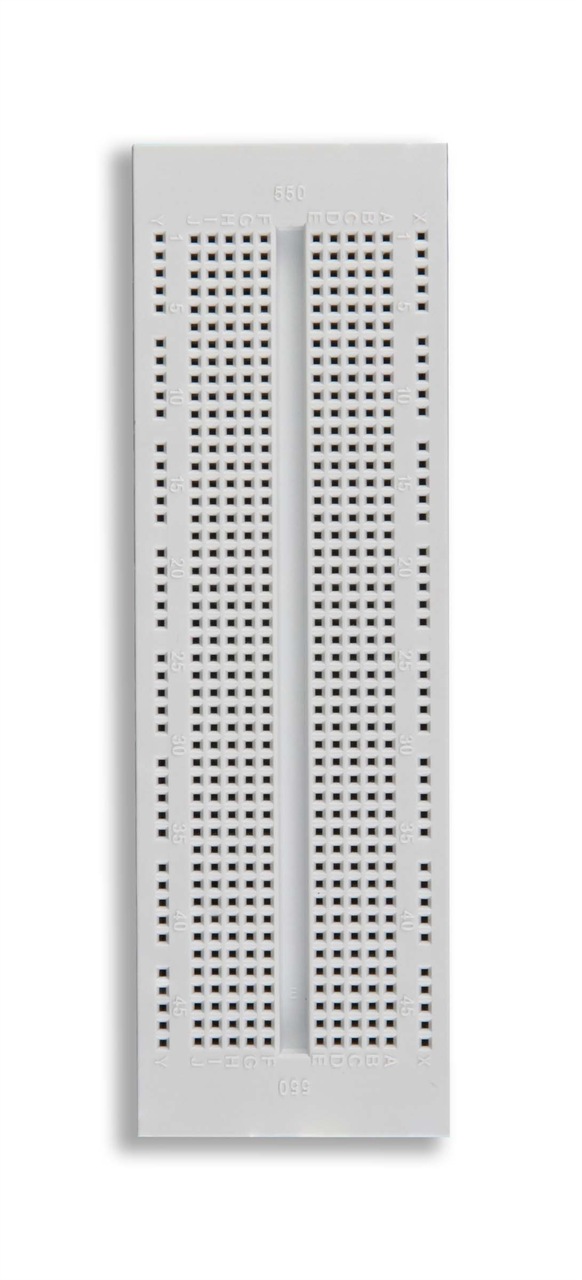

The EXP-300E is a compact solderless breadboard engineered for reliability, durability, and versatility. Built with phosphor bronze contacts and a heavy mylar backing, it is designed to eliminate short circuits and withstand demanding, high-temperature applications. Ideal for prototyping and educational environments, this board provides a robust and efficient platform for electronic circuit development.
Features:
- Phosphor bronze contacts ensure high conductivity and long service life
- Heavy mylar backing prevents short circuits during use
- Durable construction suited for high-temperature applications
- Backed by a 3-year manufacturer’s warranty
Specifications
- Type
- Passive
- Tie Points
- 550
- Length
- 1.8 in (46 mm)
- Width
- 5.7 in (145 mm)
- Contact Material
- Nickel plated phosphor bronze
- Insulation Material
- ABS
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- China
- Lead Time
- 95 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
