Overview

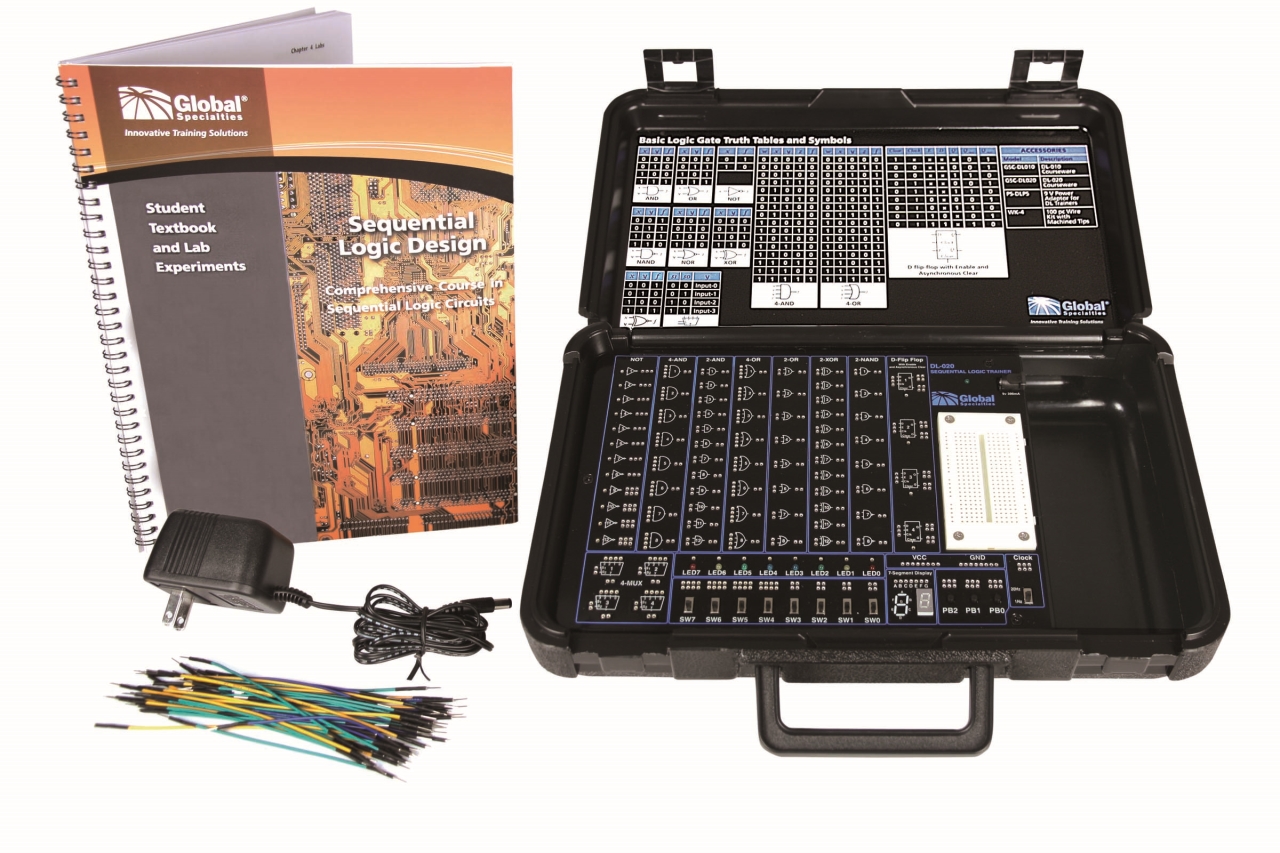

The DL-020 Digital Logic Trainer Kit is a versatile educational tool tailored for learning and experimenting with digital logic design. Equipped with TTL-compatible components, pre-mounted gates, a solderless breadboard, and a regulated power supply, it supports a wide range of lab exercises. The kit is housed in a rugged, blow-molded carrying case for easy portability and long-term use. Includes a link to the 62-page lab manual with 12 interactive experiments.
Note: Physical copy sold separately. GSC-DL020
Features
- Includes a link to the 62-page lab manual with 12 interactive experiments.
- Fully integrated gate elements with high-quality machined sockets
- Pre-mounted, debounced logic elements for immediate circuit building
- Expandable breadboard area supports progressive learning
Specifications
- Type
- Portable Trainer
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8537.10.9050
- Country of Origin
- Taiwan
- Lead Time
- 98 days
- See More Specifications
- Datasheet
