Product resources
Overview

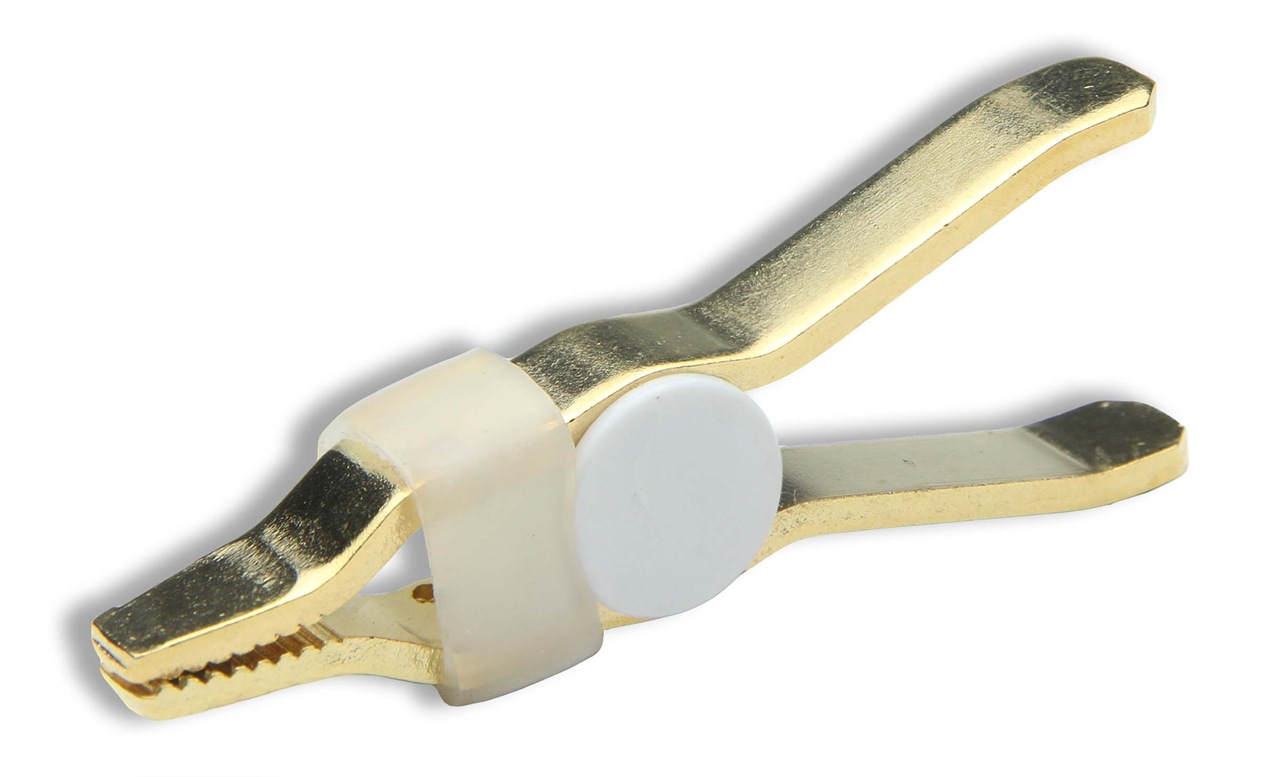

Kelvin clip. Isolated jaws. Features a current path for the source and a circuit path for the sense.
- 1 model
- CTM-78K: Brass, Gold Plt. (BU-78K)
- Jaws open to 0.5" (12.7 mm)
- Length: 2.28" (58 mm)
Specifications
- Type
- Kelvin
- Max Current
- 10 A
- Contact Material
- Brass, Gold Plt
- Insulation Material
- Brass, Gold Plt
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- China
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
