CTM-63C-2
CTM-63C Series
Active CatalogInsulated Alligator Clip

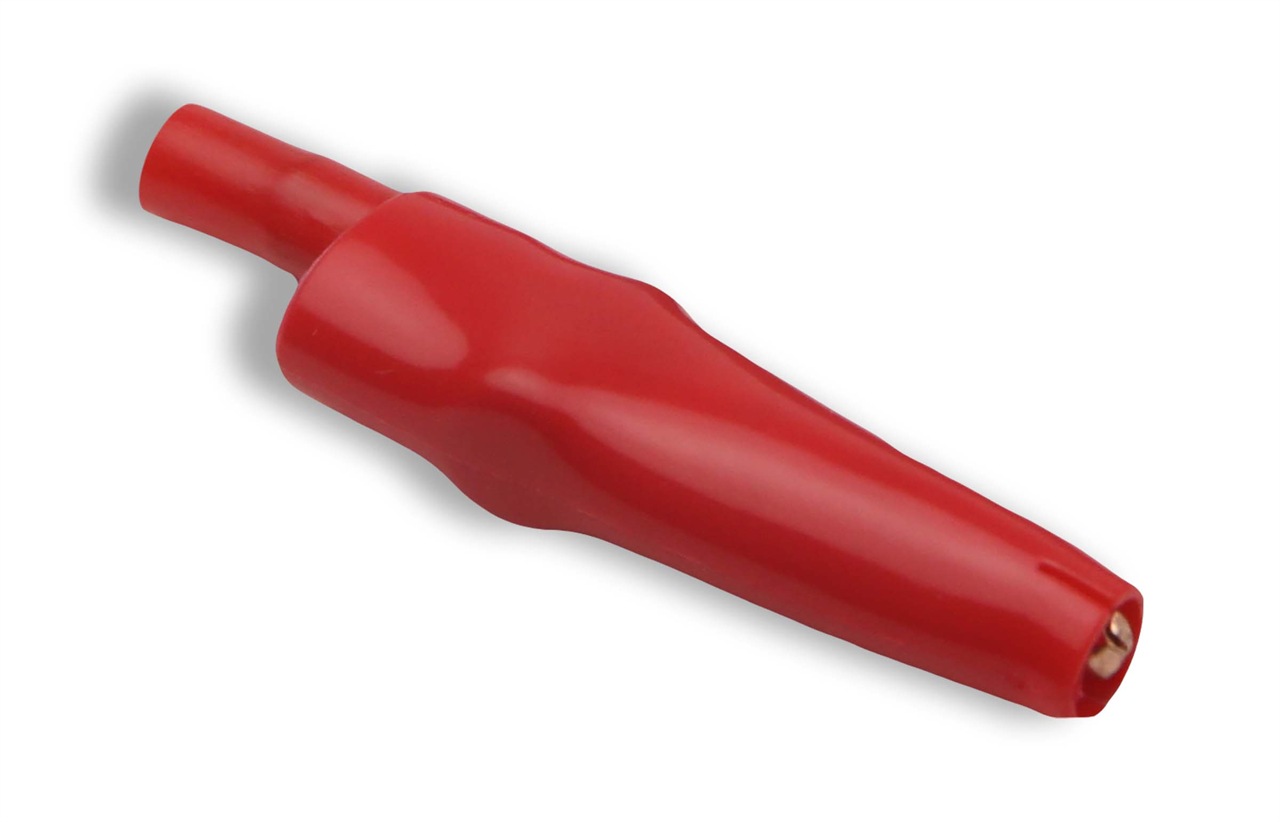

Insulated Alligator w/4mm Barrel, Copper, 10A, Red
$1.451 Year Warranty
Where to Buy
Overview
Standard copper alligator clip with 2 piece flexible PVC insulators. Accepts 4 mm banana plugs.
- Material: Solid Copper
- Mueller cross: BU-63C-*
- 6 colors available
- Jaws open to 0.31" (7.9 mm)
- Length: 2.23" (57 mm)
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|
 |
CTM-63C-0 | Insulated Alligator w/4mm Barrel, Copper, 10A, Black | $1.45 | Active Catalog | 1 Year | Partial Insulation | Black | 0° to +60° C | EA |
 |
CTM-63C-2 | Insulated Alligator w/4mm Barrel, Copper, 10A, Red | $1.45 | Active Catalog | 1 Year | Partial Insulation | Red | 0° to +60° C | EA |
 |
CTM-63C-4 | Insulated Alligator w/4mm Barrel, Copper, 10A, Yellow | $1.45 | Active Catalog | 1 Year | Partial Insulation | Yellow | 0° to +60° C | EA |
 |
CTM-63C-5 | Insulated Alligator w/4mm Barrel, Copper, 10A, Green | $1.45 | Active Catalog | 1 Year | Partial Insulation | Green | 0° to +60° C | EA |
 |
CTM-63C-6 | Insulated Alligator w/4mm Barrel, Copper, 10A, Blue | $1.45 | Active Catalog | 1 Year | Partial Insulation | Blue | 0° to +60° C | EA |
 |
CTM-63C-9 | Insulated Alligator w/4mm Barrel, Copper, 10A, White | $1.45 | Active Catalog | 1 Year | Partial Insulation | White | 0° to +60° C | EA |
Specifications
- Type
- Partial Insulation
- Color
- Red
- Operating Temperature
- 0° to +60° C
- Contact Material
- Solid Copper
- Insulation Material
- Solid Copper
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- China
- Lead Time
- 98 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
