Product resources
Overview

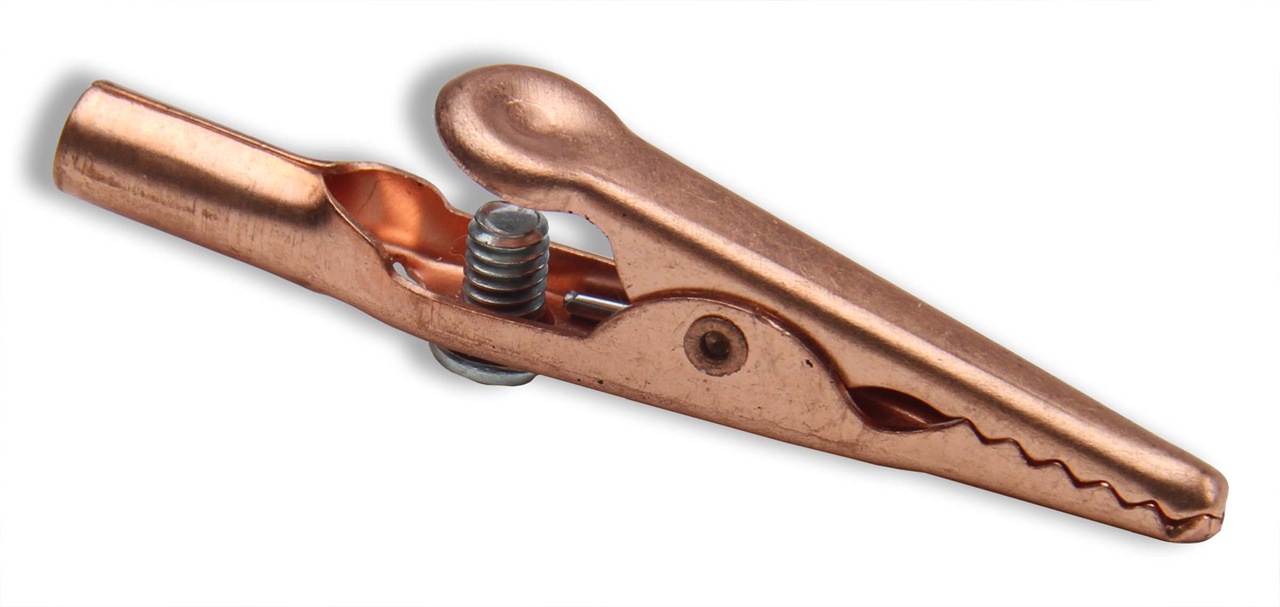

Alligator clip with 4 mm barrel and screw attachment, solid copper, accepts standard banana plug in addition to screw, solder or crimp connection.
- Material: Solid Copper
- Mueller cross: BU-60CS
- 6-40 screw thread
- Jaws open to 0.31" (7.9 mm)
- Length: 1.97" (50 mm)
- Use insulator CTM-62-#
Specifications
- Type
- Uninsulated
- Max Current
- 10 A
- Contact Material
- Solid Copper
- Insulation Material
- Solid Copper
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- China
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
