Product resources
Overview

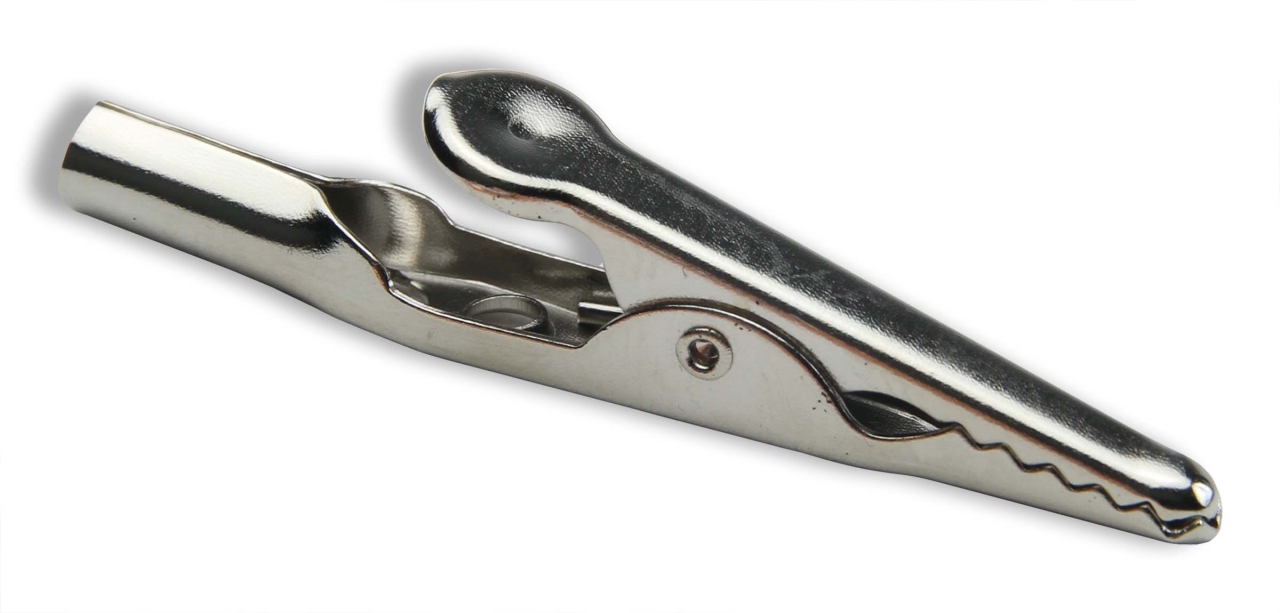

Standard alligator clip with 4 mm barrel. Accepts standard banana plugs in addition to a solder or wire-crimp connection.
- Material: Steel, Nickel Plated
- Mueller cross: BU-60
- Jaws open to 0.31" (7.9 mm)
- Length: 2.23" (57 mm)
- Use insulator CTM-62-#
Specifications
- Type
- Uninsulated
- Max Current
- 10 A
- Contact Material
- Steel, Zinc Plated
- Insulation Material
- Steel, Zinc Plated
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- China
- Lead Time
- 84 days
- See More Specifications
- Datasheet
