Overview
Miniature Clamp style battery clip with insulator. Clip used for automotive battery chargers and timing lights. Steel, with solder or crimp connection.
- Material: Steel, Copper Plated
- Mueller cross BU-46A-*
- Available in 2 colors
- Jaws open to 1.125" (29 mm)
- Length: 2.88" (98 mm)
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Max Current | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
 |

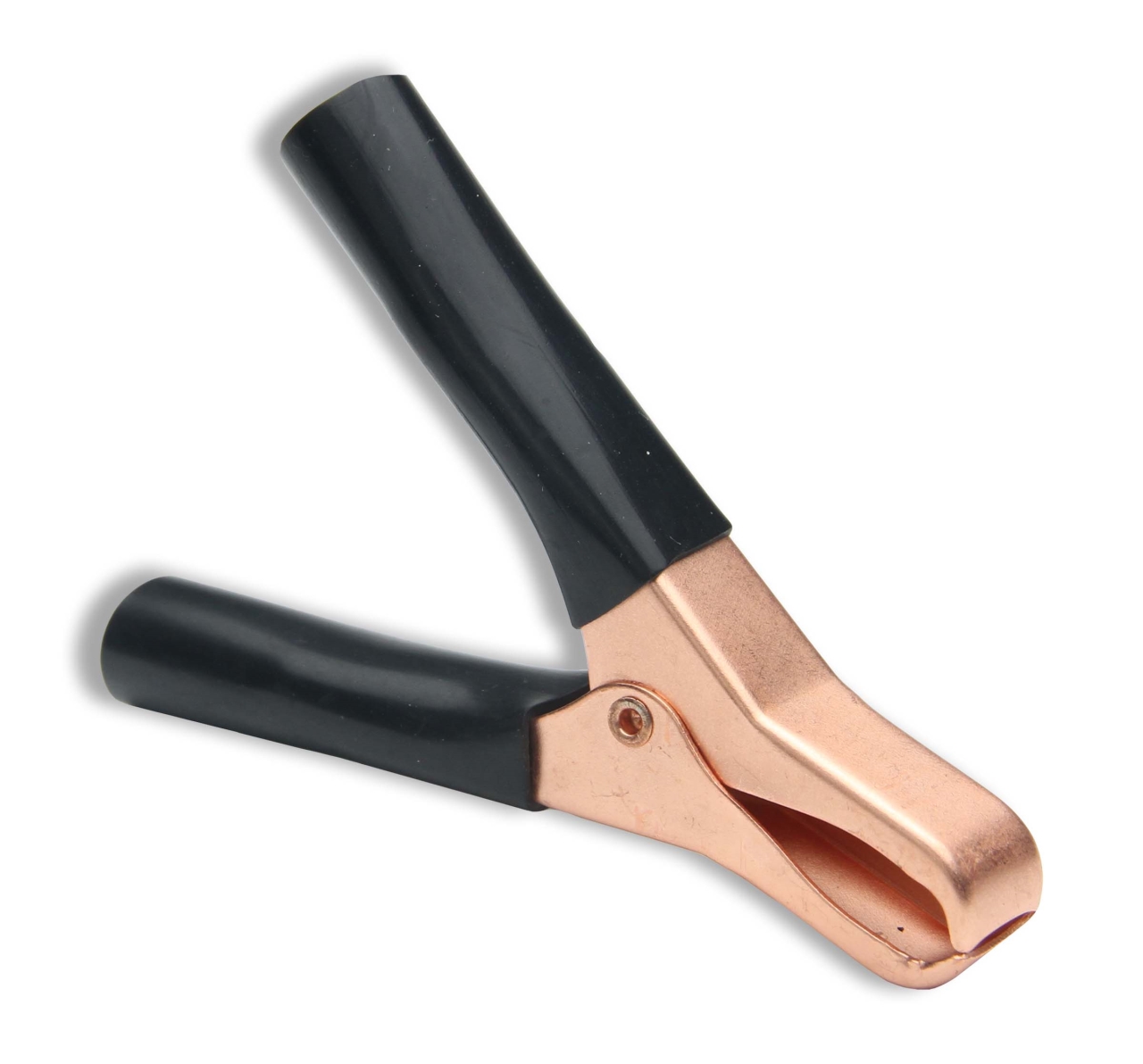

CTM-46A-0 | Miniature Plier-Type Clip, Steel, 50A, Black | $1.35 | Active Catalog | 1 Year | Heavy Duty | Black | 50 A | 0° to +60° C | EA |
 |
CTM-46A-2 | Miniature Plier-Type Clip, Steel, 50A, Red | $1.35 | Active Catalog | 1 Year | Heavy Duty | Red | 50 A | 0° to +60° C | EA |
Specifications
- Type
- Heavy Duty
- Color
- Black
- Max Current
- 50 A
- Operating Temperature
- 0° to +60° C
- Contact Material
- Steel, Copper Plt
- Insulation Material
- Steel, Copper Plt
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- China
- Lead Time
- 84 days
- See More Specifications
- Datasheet
