Overview

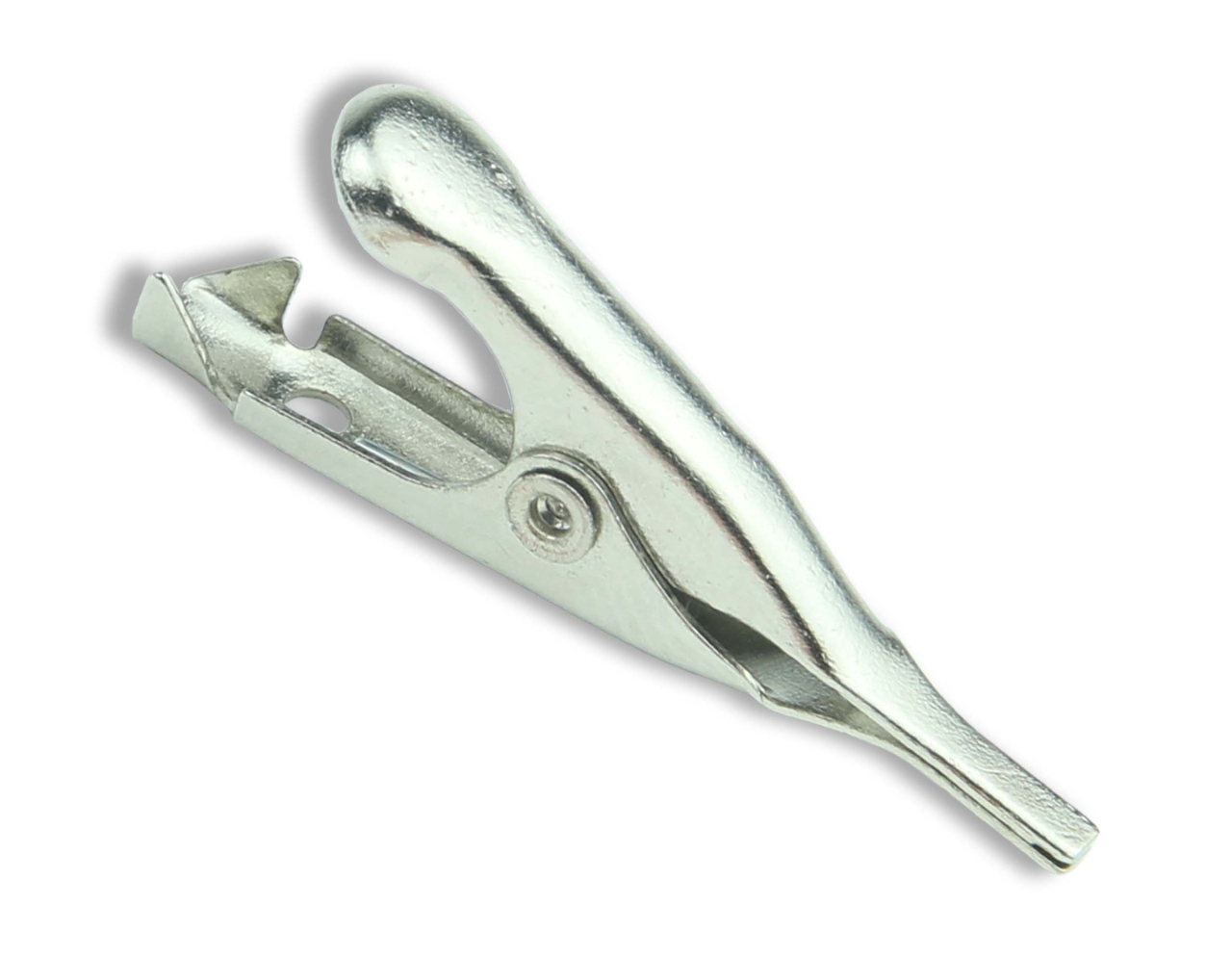

Steel Micro alligator clip with smooth jaw and microscopic tip for small test work. Solder or crimp connection. Replacement clip for Mueller BU-34
- Material: Steel, Zinc Plated
- Mueller cross: BU-34
- Jaws open to 0.22" (5.6 mm)
- Length: 1.1" (28 mm)
- Use insulator CTM-36-#
Specifications
- Type
- Uninsulated
- Max Current
- 5 A
- Contact Material
- Steel, Zinc Plt
- Insulation Material
- Steel, Zinc Plt
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- China
- Lead Time
- 98 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
