Product resources
CTM-23-0
CTM-23 Series
Active CatalogHeavy Duty Clip Insulator

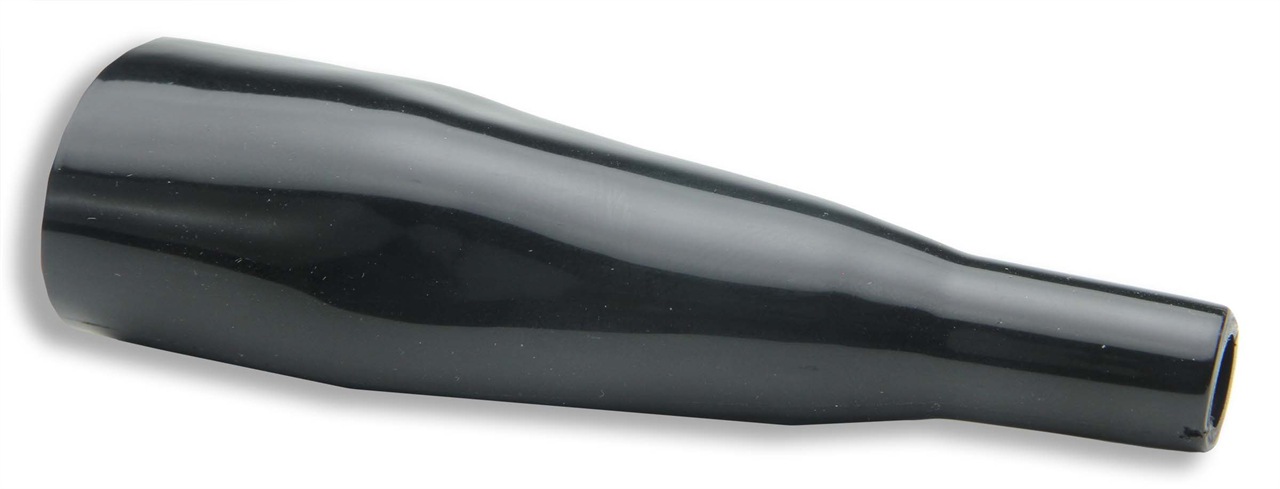

Med Heavy Duty Clip Insulator, Vinyl, Black
$1.501 Year Warranty
Where to Buy
Overview
Insulator for automotive and battery clips CTM-21APN and CTM-21CPN. Replacement for Mueller Clip insulator BU-23.
- PVC
- 6 colors available
- Length: 5" (127 mm)
- (BU-23-*)
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Color | Operating Temperature | UOM |
|---|---|---|---|---|---|---|---|---|---|
 |
CTM-23-0 | Med Heavy Duty Clip Insulator, Vinyl, Black | $1.50 | Active Catalog | 1 Year | Insulator (Boot) | Black | 0 to +60 degC | EA |
 |
CTM-23-2 | Med Heavy Duty Clip Insulator, Vinyl, Red | $1.50 | Active Catalog | 1 Year | Insulator (Boot) | Red | 0 to +60 degC | EA |
 |
CTM-23-4 | Med Heavy Duty Clip Insulator, Vinyl, Yellow | $1.50 | Active Catalog | 1 Year | Insulator (Boot) | Yellow | 0 to +60 degC | EA |
 |
CTM-23-5 | Med Heavy Duty Clip Insulator, Vinyl, Green | $1.50 | Active Catalog | 1 Year | Insulator (Boot) | Green | 0 to +60 degC | EA |
 |
CTM-23-6 | Med Heavy Duty Clip Insulator, Vinyl, Blue | $1.50 | Active Catalog | 1 Year | Insulator (Boot) | Blue | 0 to +60 degC | EA |
 |
CTM-23-9 | Med Heavy Duty Clip Insulator, Vinyl, White | $1.50 | Active Catalog | 1 Year | Insulator (Boot) | White | 0 to +60 degC | EA |
Specifications
- Type
- Insulator (Boot)
- Color
- Black
- Operating Temperature
- 0 to +60 degC
- Contact Material
- PVC
- Insulation Material
- PVC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Country of Origin
- China
- Lead Time
- 84 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
