Overview

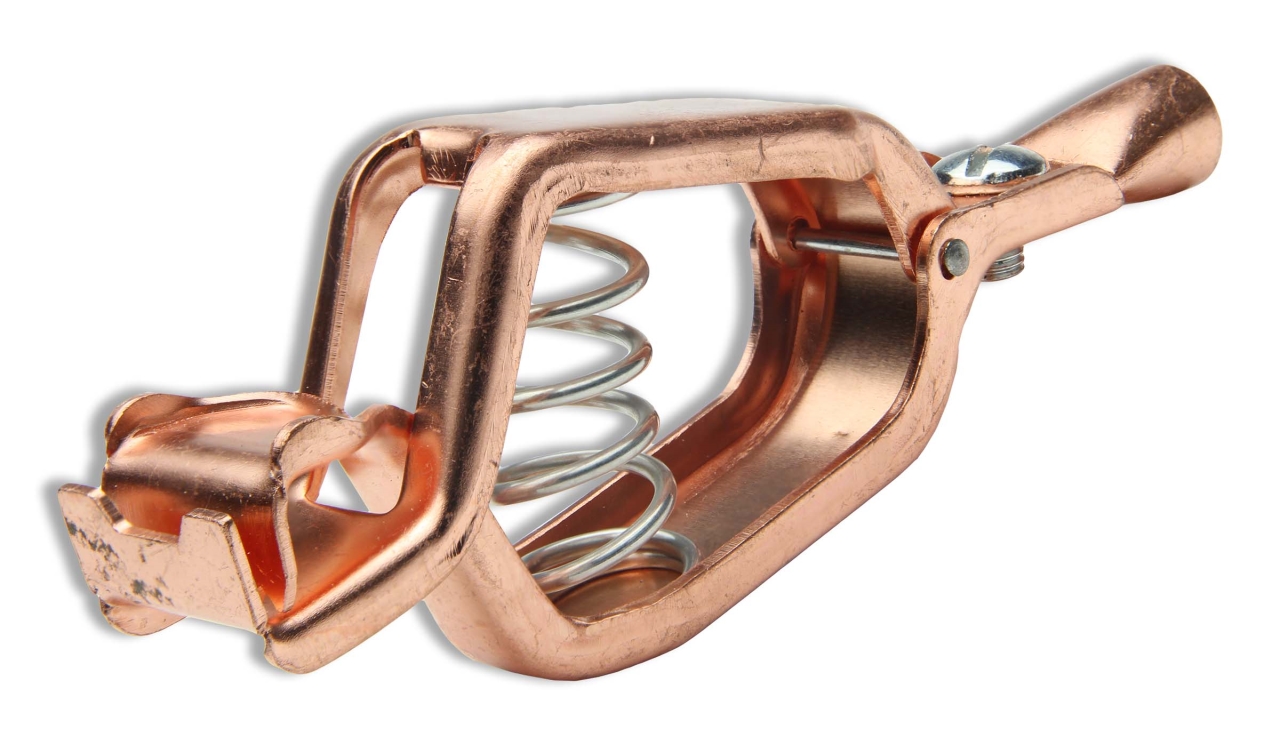

Medium sized heavy-duty copper clip for battery and general test work. Crimp or screw connections. Shunted to eliminate overheating spring.
- Material: Solid Copper
- No marking
- Mueller cross: BU-21CPN
- Equipped with copper lug
- Jaws open to 1.06 (27 mm)
- Length: 4.11" (104 mm)
- Use insulator CTM-23-#
Specifications
- Type
- Heavy Duty
- Max Current
- 100 A
- Contact Material
- Solid Copper
- Insulation Material
- Solid Copper
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- China
- Lead Time
- 84 days
- See More Specifications
- Datasheet
