CT4643-120
CT4643 Series
Active Catalog2 mm Probe Lead Set with Alligator Clips
Probe Lead Set, 2 mm Tip - Right-Angle Sheathed Plug, with Cap, with Alligator, 120 cm, Black and Red Pair
$20.001 Year Warranty
Where to Buy
Select Variant
Length
Overview

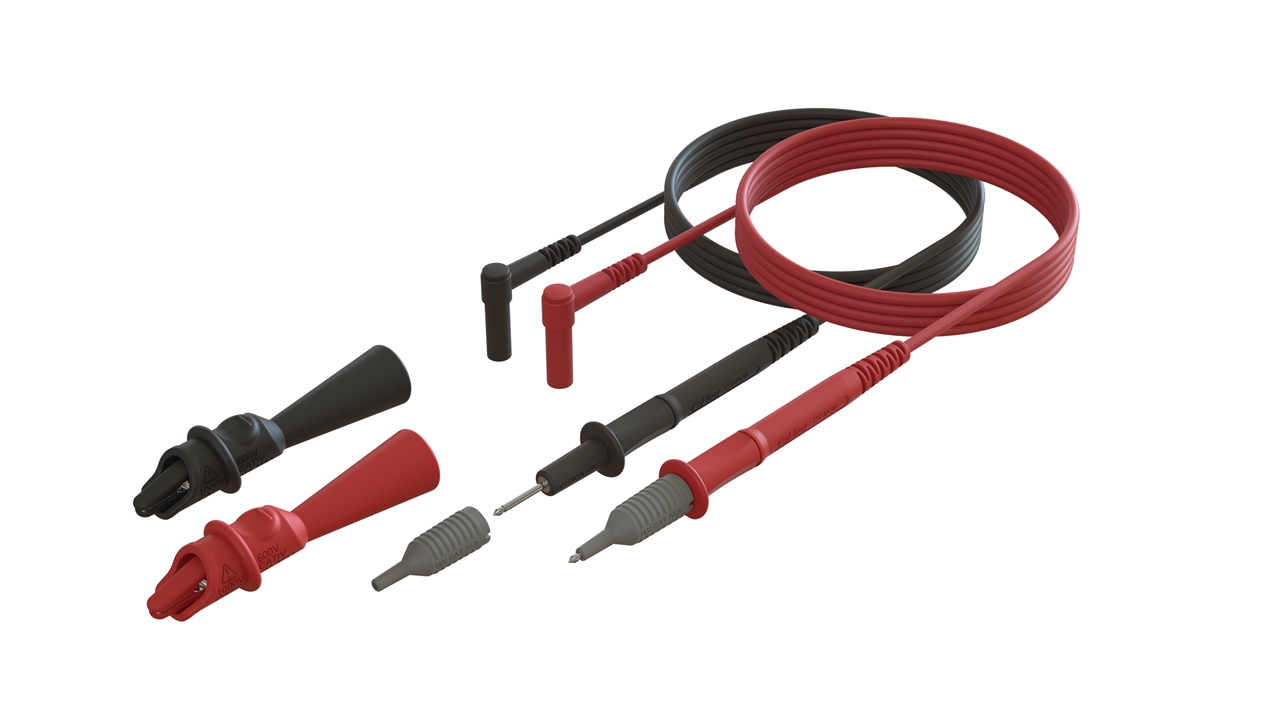

DMM probe lead kit with 2 mm probe tips, removable safety caps, and right-angle sheathed 4 mm banana plugs. Includes a black/red pair of 120 cm test leads and fully insulated alligator clip adapters that connect directly to the 2 mm probe tips. Rated up to 10 A, with the alligator clips providing 1,000 V CAT III / 600 V CAT IV protection.
Features
- 2 mm tip to right-angle banana plugs with alligator clips
- 120 cm black/red probe lead pairs for handheld meters and inline test setups
- Brass, nickel-plated probe tip with removable safety cap
- 1500 VDC CAT III / 1000 V CAT IV (cap installed); 1000 V CAT II (tip cover removed)
Kit Contents
- (1) Alligator Clip Adapter, 2mm Tip J, Extended Boot, Pair B/R - CT4439
- (1) Probe Lead, 2mm Tip - 4mm RaShth P, w/Cap, 120cm, Black - CT4536-01-120-0
- (1) Probe Lead, 2mm Tip - 4mm RaShth P, w/Cap, 120cm, Red - CT4536-01-120-2
Specifications
- Type
- Test Probe Kit
- Connector A
- 2mm Tip
- Connector B
- Right Angle Banana Plug
- Length
- 120 cm
- Color
- Black/Red Pair
- Rated Voltage
- 1,500 V DC CAT III / 1,000 V CAT IV
- Max Current
- 10 A
- Wire Gauge
- 18 AWG
- Jacket Material
- PVC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 70 days
- See More Specifications
- Product Drawing
