CT4592-0
CT4592 Series
Active CatalogBNC Male to 4 mm Binding Post with Sheathed Jack

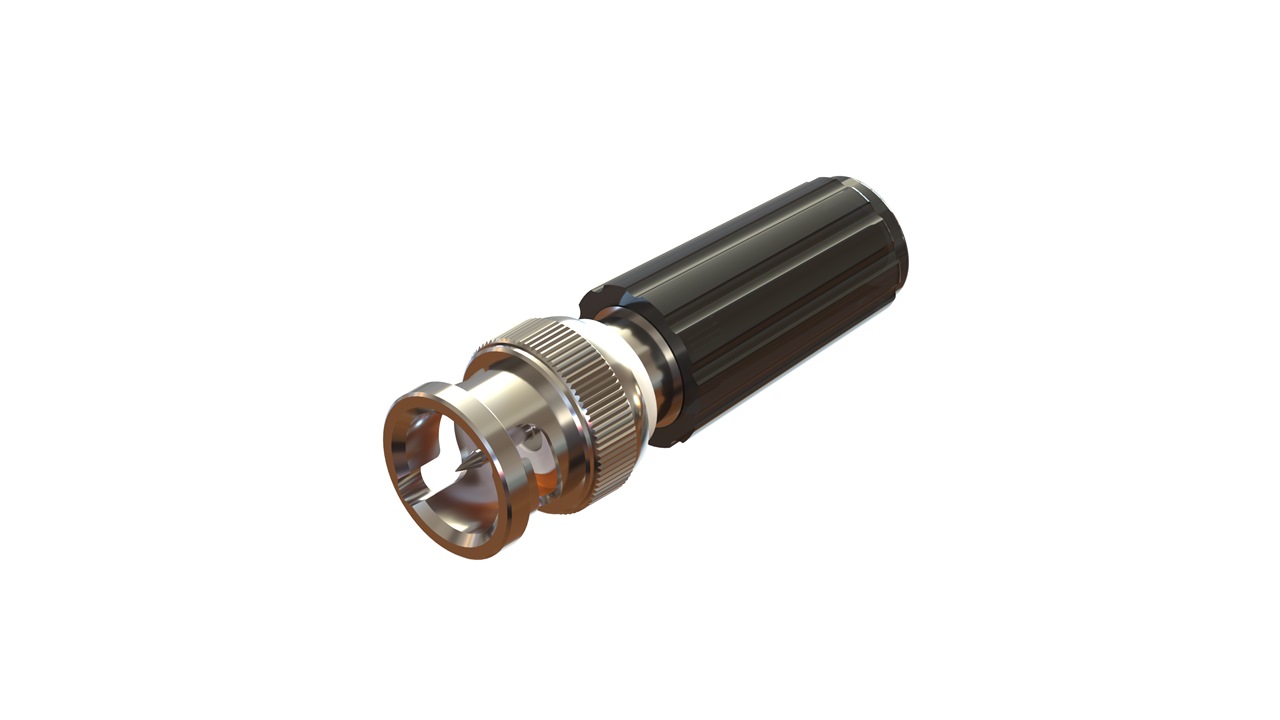

Adapter, BNC Male to 4 mm Sheathed Banana Jack Binding Post - Black
Where to Buy
No distributor stock found. View all distributors →
Overview
The CT4592 is a BNC male to 4 mm binding post adapter with sheathed jack that converts a BNC jack on a cable, component, or piece of test equipment to a single 4 mm binding post. Connections can be made using a standard, retractable or sheathed (safety) 4 mm banana plugs, as well as spade lugs or wire leads, providing a versatile interface for a wide range of test and measurement applications. The adapter features durable nickel-plated brass construction, is rated up to 3 A and 500 VDC / VAC RMS for non-handheld use, and is available in black and red.
Features
- Accepts 4 mm Sheathed (Safety) Banana Plugs
- Working connection by spade lug, bare wire, or 2 mm pin tip
- BNC plug interface for equipment, cables, and components with BNC jacks
- Available in black and red
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector Grade | Impedance | Rated Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
 |
CT4592-0 | Adapter, BNC Male to 4mm Sheath Jack Binding Post - Black | $7.00 | Active Catalog | 1 Year | General Purpose | 50 Ohms | 30 VAC / 60 VDC | EA | |
 |
CT4592-2 | Adapter, BNC Male to 4mm Sheath Jack Binding Post - Red | $7.00 | Active Catalog | 1 Year | Adapter | General Purpose | 50 Ohms | 30 VAC / 60 VDC | EA |
Specifications
- Connector Grade
- General Purpose
- Impedance
- 50 Ohms
- Rated Voltage
- 30 VAC / 60 VDC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.69.4010
- Country of Origin
- Taiwan
- Lead Time
- 70 days
- See More Specifications
- Product Drawing
