Overview

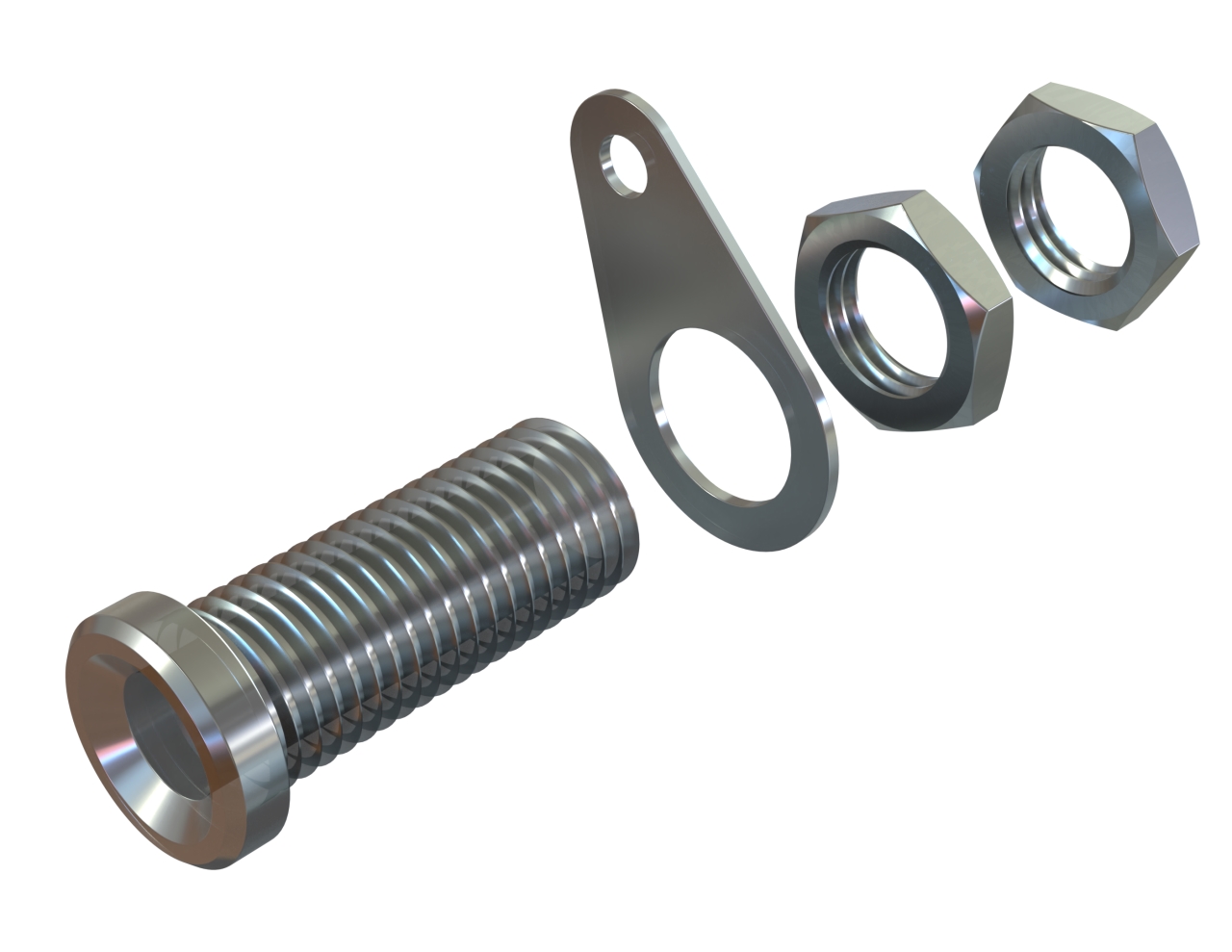

Introducing the CT4544 Uninsulated Banana Jack Panel Mount with Solder Tab, the latest addition to Cal Test’s lineup. Featuring a nickel-plated solder tab for effortless wire soldering and a durable nickel-plated brass body, the CT4544 provides supports a 36A maximum current rating, and operates within a flexible temperature range of -20°C to +150°C. It is compatible with standard 4 mm banana plugs and is supplied with a two hex nuts and solder tab, making it suited for test and measurement applications, power distribution, and custom electronic builds.
Backed by a one-year warranty and compliant with RoHS 2 and REACH standards, the CT4544 is a great addition to our Uninsulated Banana Jack Panel Mount lineup, which includes the CT2220 and CT2224 models.
Features
- Nickel plated solder tab for effortless soldering
- Compatible with standard 4 mm banana plugs
- Supplied with two hex nuts and one solder tab
- One-year warranty
Specifications
- Type
- Panel Mount
- Rated Voltage
- -
- Color
- -
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- -
- Max Current
- 36 A
- Max Voltage
- -
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
